Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SEA EAGLE
-
Model Number:
-
HAND WINCH
-
Sling Type:
-
Cable
-
Maximum Capacity:
-
2ton
-
Color:
-
Silver yellow red
-
Product name:
-
Manual Hand Winch
-
Certification:
-
CE,GS,ISO
Quick Details
-
Power Source:
-
Hand
-
Application:
-
BOAT
-
Capacity:
-
600LBS~2500LBS
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SEA EAGLE
-
Model Number:
-
HAND WINCH
-
Sling Type:
-
Cable
-
Maximum Capacity:
-
2ton
-
Color:
-
Silver yellow red
-
Product name:
-
Manual Hand Winch
-
Certification:
-
CE,GS,ISO

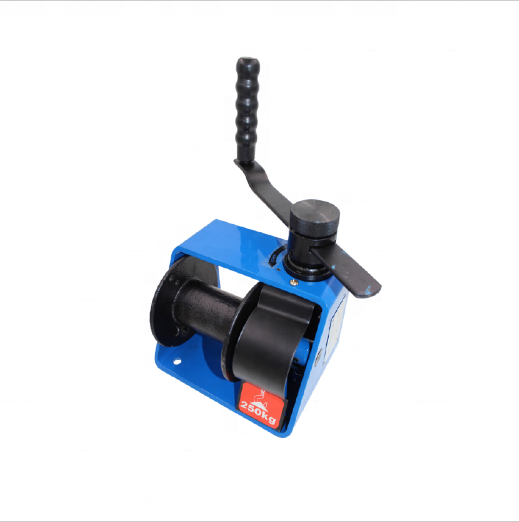

Hand Winch / Manual Hoist / Lifting Rope Winch Hoist
hand winch technical specification:
- The cost -effective solution for a wide variety of applications.Can be used to pull and lift loads.
- Positive action brake can hold the load in any position.
- Compact, light weight and rugged construction.
- Mechanical components enclosed for protection.
- Baked enamel finish for corrosion protection.
- with 10m steel wire or with 7m/8m webbing.
| ITEM NO. | W.L.L | B/S | STEEL WIRE | BELT | GEAR RATIO | WAY/ SPEED |
| lbs | lbs | |||||
| ZHHW-1 | 600 | 900 | φ4.2x10m | 2¡±x7m | 3.2:1 | 1way/1speed |
| ZHHW-2 | 800 | 1200 | φ4.5x10m | 2¡±x7m | 3.2:1 | 1way/1speed |
| ZHHW-3 | 1000 | 1500 | φ4.5x10m | 2¡±x7m | 4.1:1 | 1way/1speed |
| ZHHW-4 | 1200 | 1800 | φ4.8x10m | 2¡±x7m | 4.1:1 | 1way/1speed |
| ZHHW-5 | 1400 | 2100 | φ4.8x10m | 2¡±x8m | 4:01 | 1way/1speed |
| ZHHW-6 | 1600 | 2400 | φ5.0x10m | 2¡±x8m | 4:01 | 1way/1speed |
| ZHHW-7 | 1800 | 2700 | φ5.0x10m | 2¡±x8m | 4:1/8:1 | 1way/1speed |
| ZHHW-8 | 2000 | 3000 | φ5.0x10m | 2¡±x8m | 4:1/8:1 | 1way/1speed |
| ZHHW-9 | 2500 | 3750 | φ5.6x10m | 2¡±x8m | 4:1/8:1 | 1way/1speed |
CUSTOMER VALUE CREATION
As the world’s most experienced CHAIN & OTHER HOISTING TOOLS manufacturer, our company helps customers increase productivity while reducing maintenance cost.
By designing and manufacturing each component in-house and leveraging our deep application expertise, we provide customers with proven equipment performance for all industrial applications.
This allows us to better match the products to your application and provide a solution that delivers the overall highest value.
Package:Carton and Pallet. E ach pieces be packed in strong plastic bag, then standard export carton, ply-wooden pallet/steel pallet.
We cooperate with professional logistics companies to provide efficient goods transports such as sea, air and land transports to customers.
