- Product Details
- {{item.text}}
Quick Details
-
Power:
-
1.8kw
-
Min. Lifting Height:
-
80m
-
Table Size:
-
1350*800*1920mm
-
Weight:
-
1950 kg
-
Marketing Type:
-
New Product 2022
-
Product name:
-

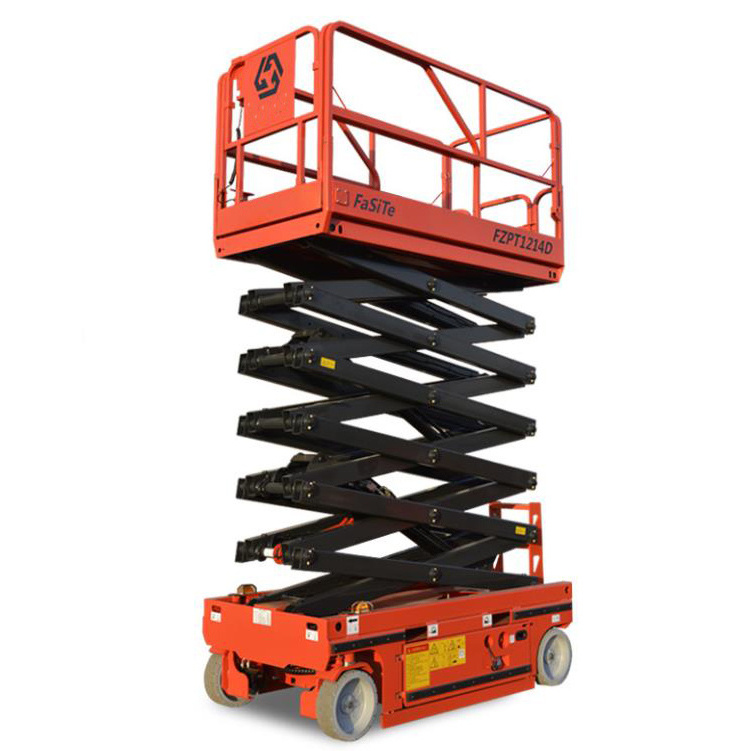

portable scissor lift
-
Application:
-
Widely
-
Lifting height:
-
2-14m
-
Voltage:
-
110-480V
-
Operation way:
-
Platform Operate
-
Control methods:
-
Remote control
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
HEBEI
-
Brand Name:
-
liediao
-
Power:
-
1.8kw
-
Min. Lifting Height:
-
80m
-
Table Size:
-
1350*800*1920mm
-
Weight:
-
1950 kg
-
Marketing Type:
-
New Product 2022
-
Product name:
-
portable scissor lift
-
Application:
-
Widely
-
Lifting height:
-
2-14m
-
Voltage:
-
110-480V
-
Operation way:
-
Platform Operate
-
Control methods:
-
Remote control
Product Overview
1. The extension platform can be quickly deployed to the operation point.
2. The industry's minimum turning radius (inner wheel 0m) and compact design facilitate operation in narrow spaces.
3.25% climbing ability, able to smoothly climb slopes.
4. Automatic display of fault codes for easy maintenance.
|
model
|
AMWP6-1100
|
Minimum turning radius (inner wheel)
|
0
|
|
Safe working load
|
150kg
|
Minimum turning radius (outer wheel)
|
1.5m
|
|
Extended Platform Safe Working Load
|
75kg
|
Lifting motor/drive motor
|
1.2kw/0.5kw
|
|
Maximum working height
|
8m
|
Machine travel speed (retracted state)
|
3.5km/h
|
|
Maximum platform height
|
6m
|
Machine travel speed (lifting status)
|
0.8km/h
|
|
overall length
|
1.4m
|
Ascending/Descending Speed
|
48/40sec
|
|
overall width
|
0.76m
|
storage battery
|
2*12V/100ah
|
|
Overall height (fence not folded)
|
1.99m
|
charger
|
24v/15A
|
|
Work platform size (length x width (F)
|
0.66*0.66*1.1m
|
Max Climb Capability
|
25%
|
|
Platform Extension Size (G)
|
0.48m
|
Maximum allowable working angle
|
1.5°
|
|
Minimum ground clearance (collapsed state)
|
0.1m
|
tyre
|
Φ305*100mm
|
|
Minimum ground clearance (lifting state)
|
0.023m
|
Overall weight
|
1120kg
|
|
Wheelbase
|
1.14m
|
|
|
|
model
|
AMWP6-6100
|
Minimum turning radius (inner wheel)
|
0
|
|
Safe working load
|
159kg
|
Minimum turning radius (outer wheel)
|
1.4m
|
|
Extended Platform Safe Working Load
|
114kg
|
Lifting motor/drive motor
|
1.3kw/0.5kw
|
|
Maximum working height
|
8m
|
Machine travel speed (retracted state)
|
4km/h
|
|
Maximum platform height
|
6m
|
Machine travel speed (lifting status)
|
1.1km/h
|
|
overall length
|
1.36m
|
Ascending/Descending Speed
|
52/53sec
|
|
overall width
|
0.82m
|
storage battery
|
2*12V/100ah
|
|
Overall height
|
1.98m
|
charger
|
24v/15A
|
|
Work platform size (length x width (F)
|
1.3*0.7*1.1m
|
Max Climb Capability
|
25%
|
|
Platform Extension Size (G)
|
0.51m
|
Maximum allowable working angle
|
2°
|
|
Minimum ground clearance (collapsed state)
|
0.1m
|
tyre
|
Φ305*100mm
|
|
Minimum ground clearance (lifting state)
|
0.023m
|
Overall weight
|
1060kg
|
|
Wheelbase
|
1.04m
|
|
|
Product parameters
Excellent material selection
excellent aluminum alloy, corrosion resistance, good stability and strong bearing capacity.
Stable lifting
the machine adopts double chain transmission, with good bearing capacity and stable lifting.
Polyurethane wheel:
The polyurethane wheel is sturdy and wear-resistant, suitable for walking on various surfaces, with small resistance and no damage to the ground.
Integrated control box:
the function is clear at a glance, and the operation is simple and convenient.
