Quick Details
-
Weight (KG):
-
200
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Penglai
-
Dimension(L*W*H):
-
700*600*1600mm
-
Product name:
-
High speed vertical sugar stick automatic granule packing machine
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Packing speed:
-
30-60bags/min
-
Sealing type:
-
Back sealed bag/side sealed bag
-
Bag length:
-
50~180mm
-
Bag width:
-
50-120mm
-
Packing material:
-
Complex roll film
-
Material:
-
Stainless Steel 304
-
Filler:
-
Rotary measuring cups
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, Embossing
-
Packaging Type:
-
Bags, Film, Foil, Belt, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
200
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Penglai
-
Dimension(L*W*H):
-
700*600*1600mm
-
Product name:
-
High speed vertical sugar stick automatic granule packing machine
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Packing speed:
-
30-60bags/min
-
Sealing type:
-
Back sealed bag/side sealed bag
-
Bag length:
-
50~180mm
-
Bag width:
-
50-120mm
-
Packing material:
-
Complex roll film
-
Material:
-
Stainless Steel 304
-
Filler:
-
Rotary measuring cups
-
Marketing Type:
-
Ordinary Product
Features :
1. Adopted advanced PLC control system.
2.Stainless steel #201 for the machine's mainframe, and stainless steel #304 for touching parts, which is anticorrosion.
3.Advantageous in design to make it easy install and cleaning,operation safety and nice appearance.
4. Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
5.Pneumatic control.
6.All the Electronic components adopt international famous brand.
7. CE certificate.
Technical Parameters:
|
Item |
High Speed Vertical Sugar Stick Automatic Granule Packing Machine |
|
Model |
PL-420 |
|
Filling measurement |
Rotary measuring cups |
|
Bag style |
Back sealed bag,side seal bag |
|
Film width |
50-260mm |
|
Bag size |
L50-180mm, W50-120mm |
|
Packing speed |
30-60 bags/min |
|
Material |
stainless steel 304, SS201 |
|
Voltage |
50Hz-60Hz, 220V, |
|
Weight |
about 200kg |
|
Dimension |
L700*W850*H1600 (mm) |
|
Power |
1.2KW |
|
Film material |
All sealed material |
|
Supplies |
different grains or granules, such as sugar, salt, desiccant, coffee, washing powder, glucose, seeds, seasoning, pepper, beans, etc. |
|
Main functions |
Automatically measure, make bags, fill, seal, cut and print codes. |

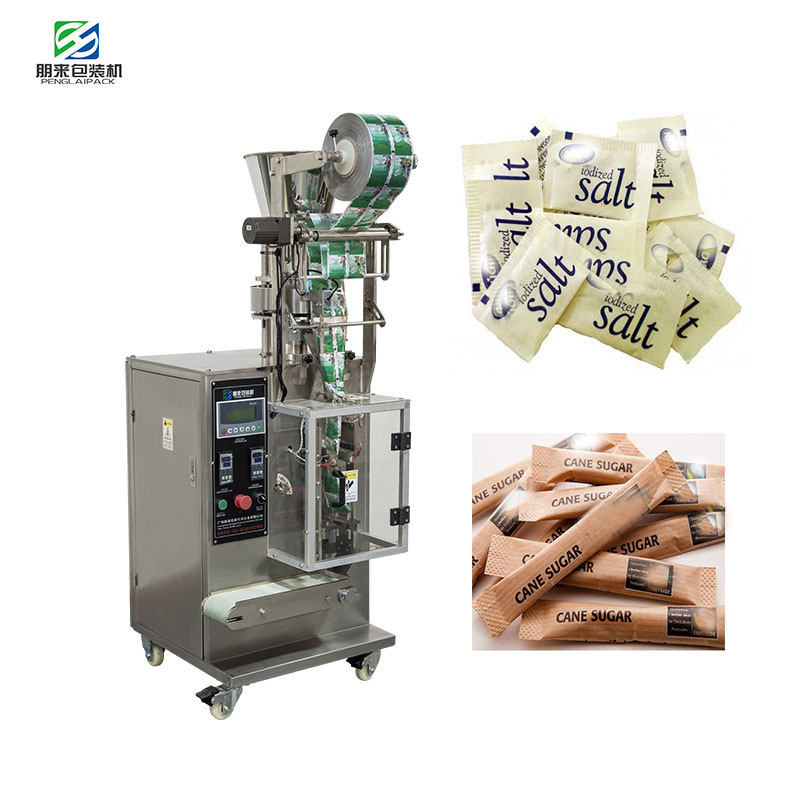

Machine picture:
