Quick Details
-
Product Name:
-
electric golf cart
-
Color:
-
White,Grey,Navy,Red,Khaki,Purple,Green,Black etc
-
Size:
-
2950*1340*2000mm
-
Brakes:
-
Hydraulic Disc
-
Motor:
-
48V 5KW Or 72V 5KW
-
Place of origin:
-
Guangzhou,China
-
Recharge Time:
-
8-10h
-
Climbing Ability:
-
45%
-
Battery:
-
72V 150Ah or Lithium Battery
Quick Details
-
Tire Size:
-
12X7
-
Dimension:
-
2950*1340*2000mm
-
Battery Voltage:
-
48V&72V
-
Product Name:
-
electric golf cart
-
Color:
-
White,Grey,Navy,Red,Khaki,Purple,Green,Black etc
-
Size:
-
2950*1340*2000mm
-
Brakes:
-
Hydraulic Disc
-
Motor:
-
48V 5KW Or 72V 5KW
-
Place of origin:
-
Guangzhou,China
-
Recharge Time:
-
8-10h
-
Climbing Ability:
-
45%
-
Battery:
-
72V 150Ah or Lithium Battery
Product Description
|

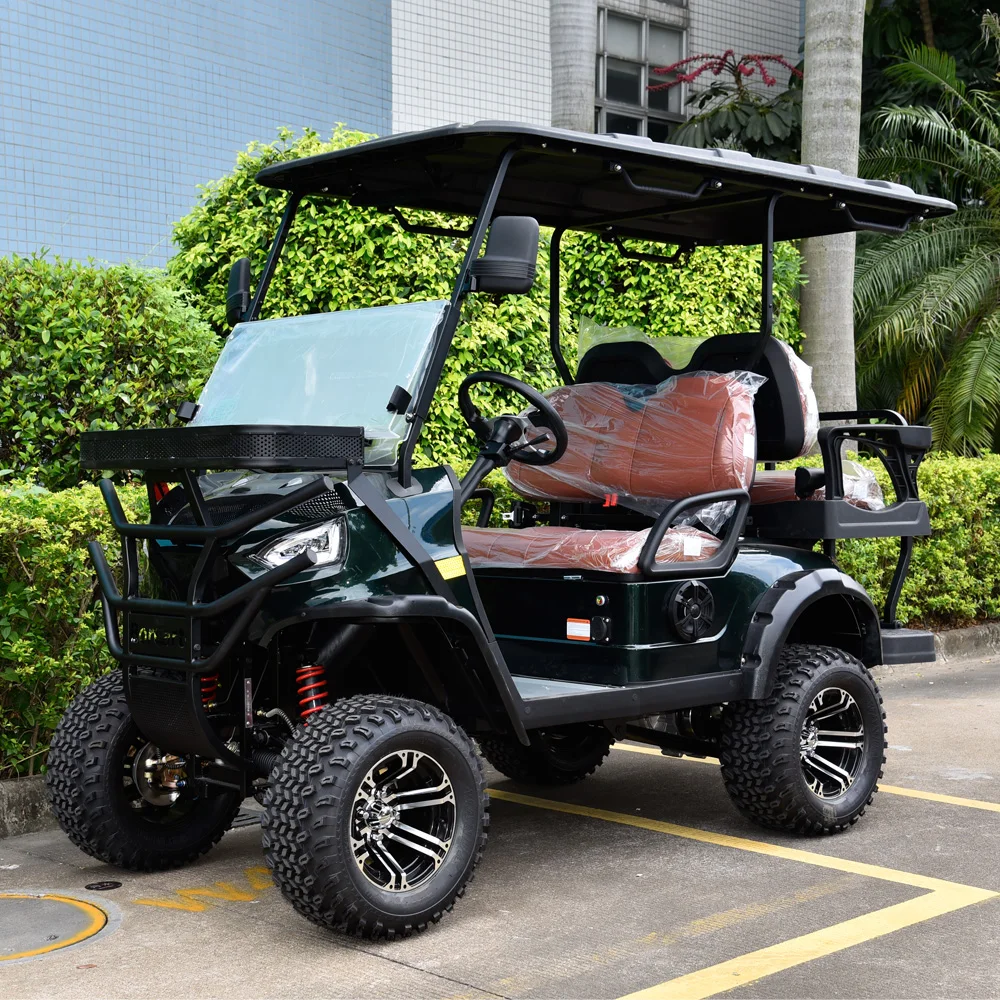

2024 Latest Design Mini 4 Seater Electric Golf Cart Max 100Km 72V/48V Lithium Hi Fi Speaker Electric Golf Cart Club Car
|
|
|
|
|
||||
|
STD
|
|
|
Specification
|
72V5KW(Lithium battery)
|
||||
|
Dynamic System
|
|
|
Size Overall
|
2520*1340*2050mm
|
||||
|
Motor:KDS 48V AC motor
Power :5KW Electrical System :48V Battery :Shengyang 6 pcs 6x8V Lead Acid Charger:Intelligent, 48V/18A,charging time 8hours (discharging rete 80%) Controller :BORCART48V350A DC: DC-DC 48V/12V-300W |
|
|
2950*1340*2130mm
|
|
||||
|
|
|
|
Net Weight
|
|
||||
|
|
|
|
610kg
|
|
||||
|
|
|
|
No.of Passengers
|
|
||||
|
|
|
|
2+2 Passengers
|
|
||||
|
|
|
|
Wheel Axle Distance
|
|
||||
|
|
|
|
1680mm
|
|
||||
|
|
|
|
wheel dis Front/rear
|
Front1005mm/Rear1075mm
|
||||
|
Confortable Performance
|
|
|
Ground Clearance
|
170mm
|
||||
|
1- HASDA IP66 waterproof advanced multimedia combination LCD screen with vehicle status information;
2- HASDA IP66 full range speakers H065B (with LED lights) 3- Comfortable seats : integral foam cushion+solid high-grade leather 4- High-strength aluminum alloy anti-skid floor, corrosion resistance and aging resistance |
|
|
Min Turing Radius
|
3.2m
|
||||
|
|
|
|
Max Speed
|
25MPH
|
||||
|
|
|
|
Climb Performance
|
25%
|
||||
|
|
|
|
Slope Performance
|
25%
|
||||
|
|
|
|
Battery life
|
80-100mile(Normal road)
|
||||
|
|
|
|
Brake distance
|
3.5m
|
||||
Function:
1.HASDA IP66 waterproof advanced multimedia combination LCD screen with vehicle status information;
2.HASDA IP66 Full range hi fi speaker H065
3.First class seats (overall foam seat cushion+solid high-grade imported leather).
4.High strength aluminum alloy oxidation anti-skid floor, corrosion resistance and aging resistance.
Suspension and braking system:
1.Front suspension: double arm independent front suspension+spiral spring+cylindrical hydraulic shock absorption.
2.Rear suspension: integral rear axle,speed ratio 16:1,coil spring damping+cylindrical hydraulic damping+rear stabilizer bar
3.Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking
4.Steering system:two-way rack and pinion steering system,automatic clearance compensation function.
5.Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).
1.HASDA IP66 waterproof advanced multimedia combination LCD screen with vehicle status information;
2.HASDA IP66 Full range hi fi speaker H065
3.First class seats (overall foam seat cushion+solid high-grade imported leather).
4.High strength aluminum alloy oxidation anti-skid floor, corrosion resistance and aging resistance.
Suspension and braking system:
1.Front suspension: double arm independent front suspension+spiral spring+cylindrical hydraulic shock absorption.
2.Rear suspension: integral rear axle,speed ratio 16:1,coil spring damping+cylindrical hydraulic damping+rear stabilizer bar
3.Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking
4.Steering system:two-way rack and pinion steering system,automatic clearance compensation function.
5.Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).
