- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
thisshirui
-
Model Number:
-
SR-30K-XKKT
-
Material:
-
Powder paint, Galvanized Steel
-
Product Name:
-
Outdoor Cabinet
-
Surface treatment:
-
Powder paint
-
Application:
-
Projector base station, column, floor cage
-
Function:
-
climate control
-
Custom Service:
-
Offerable
-
Feature:
-
OEM ODM Support
-
Color:
-
Accept Customized
-
IP Rating:
-
IP65 Waterproof Box
Quick Details
-
Protection Level:
-
IP65
-
Type:
-
Control Box
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
thisshirui
-
Model Number:
-
SR-30K-XKKT
-
Material:
-
Powder paint, Galvanized Steel
-
Product Name:
-
Outdoor Cabinet
-
Surface treatment:
-
Powder paint
-
Application:
-
Projector base station, column, floor cage
-
Function:
-
climate control
-
Custom Service:
-
Offerable
-
Feature:
-
OEM ODM Support
-
Color:
-
Accept Customized
-
IP Rating:
-
IP65 Waterproof Box
Product Description
Functional Realization
1）The power supply of the smart test and control board is stabilized by the Meanwell switching power supply.
2）Built-in temperature probe and temperature and humidity sensor.
3）3-way adjustable fans, each fan with a peak speed of up to 5000 RPM and an airflow of 5 m³/minute.
4）When the temperature is 2 degrees Celsius higher than the preset temperature (30°C), the fans will start, and the higher the temperature, the faster the fan speed and the greater the airflow.
5）F6 medium efficiency air filter, with high air permeability, dust and mosquito proof functions.
6）Heating module, when the temperature is ≤5°C and the humidity is ≥85%, the heating will start, and when the temperature reaches 10°C and the humidity is ≤75%, the heating will stop.
7）Reserved 16A or 10A multi-function sockets.
8）The power supply for the projector is equipped with an AC contactor. In case of a fault, the power will be immediately cut off to protect the projector.
9）When the internal temperature is 2°C or more above the preset value (30°C), the air conditioning cooling will start, and when it is 2°C or less below the preset value, the cooling will stop.
10）When the internal temperature is 2°C or more above the preset value (35°C), the fan cooling system will start, and when it is 2°C or less below the preset value, the fans will stop.
11）Passed IP65 waterproof certification.

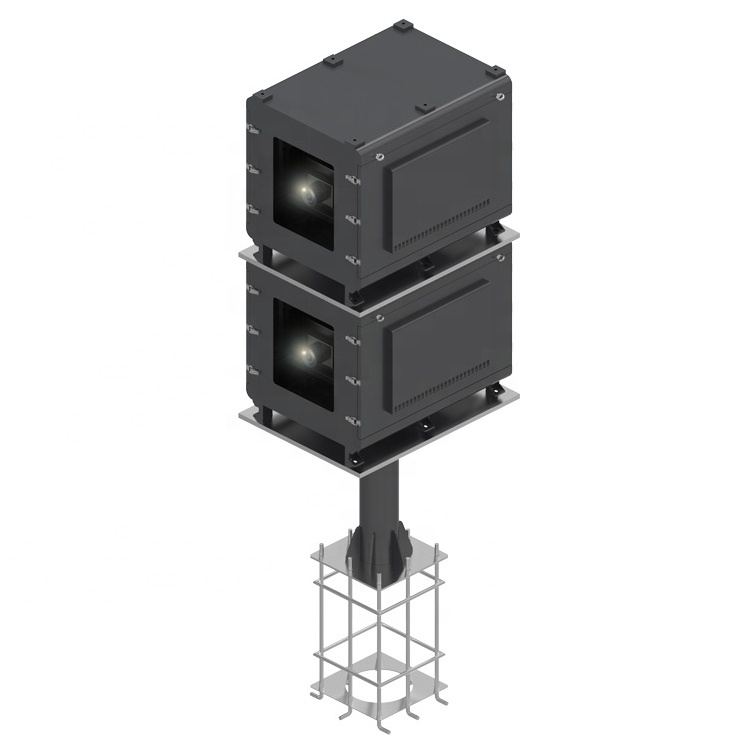

The projector base station, columns, and ground cage can all be customized according to project needs. The size and function of the projector housing, the height and diameter of the column, and the size and height of the foundation cage can all be customized!
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
thisshirui
|
|
Model Number
|
SR-30K-XKKT
|
|
Protection Level
|
IP65
|
|
Type
|
Control Box
|
|
External Size
|
|
|
Material
|
Powder paint
|
|
Type
|
Equipment Enclosure
|
|
Product Name
|
Outdoor Cabinet
|
|
Material
|
Galvanized Steel
|
|
Surface treatment
|
Powder paint
|
|
Application
|
Outdoor
|
|
Function
|
climate control
|
|
Custom Service
|
Offerable
|
|
Feature
|
OEM ODM Support
|
|
Color
|
Accept Customized
|
|
IP Rating
|
IP65 Waterproof Box
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
