Automatic Disposable Plastic Chopsticks Ice Cream Spoon Napkin Fork Knife Cutlery Set Flow Packing Machine

Automatic Disposable Plastic Chopsticks Ice Cream Spoon Napkin Fork Knife Cutlery Set Flow Packing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3600

≥2 Sets

US $3200

≥5 Sets

US $2800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 320

Voltage:: 220V

Place of Origin:: Shanghai

Brand Name:: FEIYU

Item:: Plastic Chopsticks Packaging Machine

Film Width:: Max.250mm

Bag Length:: 65-280mm

Bag Width:: 30-110mm

Packing Speed:: 40-230bag/min

Power:: 220V 50/60HZ 2.4KW

Control system:: PLC+7 inch Touch Screen

Quick Details

Function:: FILLING, Wrapping, Labeling, Capping, COATING, Sealing, BOXING, SLITTING, counting

Packaging Type:: Cartons, CANS, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch

Packaging Material:: Plastic, Paper, Wood

Weight (KG):: 320

Voltage:: 220V

Place of Origin:: Shanghai

Brand Name:: FEIYU

Item:: Plastic Chopsticks Packaging Machine

Film Width:: Max.250mm

Bag Length:: 65-280mm

Bag Width:: 30-110mm

Packing Speed:: 40-230bag/min

Power:: 220V 50/60HZ 2.4KW

Control system:: PLC+7 inch Touch Screen

Products Description

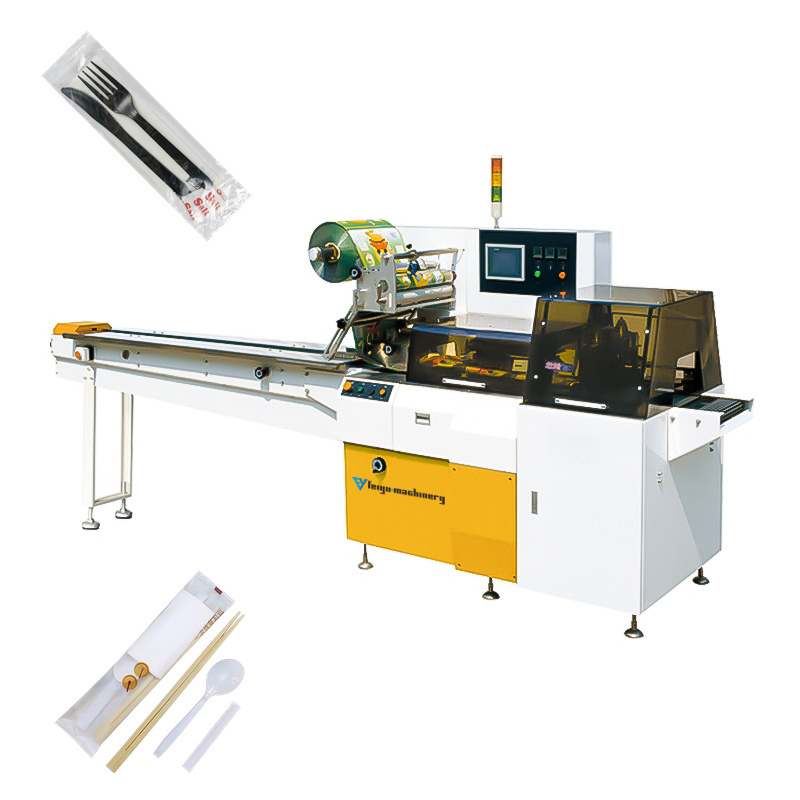

Automatic Disposable Plastic Chopsticks Ice Cream Spoon Napkin Fork Knife Cutlery Set Flow Packing Machine

1. Double frequency conversion control, bag length can be set and cut in one step, saving time and films .
2. Adopt PLC & HMI programming software, easy operating and setting .
3. Self failure diagnosis, clear failure display .
4. High sensitivity photocell tracing, input cutting&sealing position digitally, extra accuracy .
5. PID control temperature independently which is more suitable for packing different materials .

6. Positioned stop function, without sticking knife or wasting film.

7. Simple driving system, reliable working, convenient maintenance.

8. All control is realized through software, easy for function adjusting, technical upgrade.

Model	FY-250X	FY-450X	FY-700X
Film Width	Max: 250mm	Max: 450mm	Max: 700mm
Bag Length	65-280mm	150-450mm	180-600mm
Bag Width	30-110mm	50-180mm	100-330mm
Product Height	Max.60mm	Max.90mm	Max.110mm
Packing Speed	40-230bag/min	40-150bag/min	20-130bag/min
Power	220V 50/60Hz 2.4KW	220v 50/60Hz 2.8KW	220v 50/60Hz 2.8KW
Machine Weight	500kg	650kg	720kg
Machine Size *(LWH)mm*	39206701320mm	41508201450mm	43809801480mm

Details Description

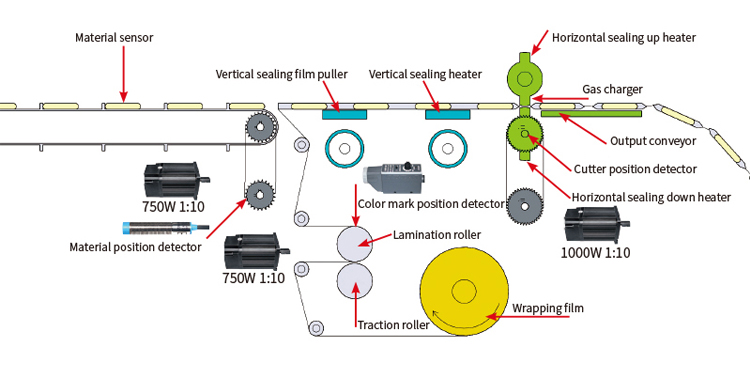

Pillow Packing Machine Working Process

1. Put the packaging film on the holder and wear the film as required.

2. Setting the parameters you want by touch screen.

3. Put the materials to be packed on the conveyor belt or chain, packed different product need different conveyor feeding type.

4. Auto bag making sealing

Pillow Packaging Machine Application
Feiyu flow packaging machine is suitable for pack single piece of biscuit, electrical tape, wafer biscuit, bread, ice cream, mooncake, candy pill pen, ball pen, hotel goods, daily commodities, rubber,
accessories, medicine, plastic goods, soap, hardware, loaded by carton / tray, etc

Order Process

Why Choose Us

1. Professional and Strong Team
Feiyu Packing Machinery has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer. Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.

2. Excellent transportation service
According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.

3. Timely and effective after-sales service
1. C hoosing us is not only buying a machine, but also our professional and timely service. 1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.

3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.

Our Service

Before-sales Services:

1. Many professional packing videos, give you direct feeling about our machines.

2. Free packing solution from our R&D department.

In-sales Services:

We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After-sales Services:

1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.

2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24/7.

3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.

4. The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.

5. We have an experienced team for after-sales service. Any emergency please call our customer service or after-sales manager. On-site repair or instructions are also available to order.

Packaging & Shipping

Exhibitions, Partners & Valued Clients

FAQ

1: How to find a Packing machine suitable for my packing items?

Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).

2: Is an engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.

3. Are you a factory or trading company?

We are the factory, and especially R&D, manufacture and sell various packaging machinery. We have engaged in the packing R&D and production for over 15 years.

4. What's your payment way?

T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.

5. How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

6. We are afraid you won't send us the machine after we send you the money?

Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
