Quick Details
-
Warranty:
-
25 YEARS
-
Brand Name:
-
Shenya
-
Model Number:
-
HS-M166H672- 435-455W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2094*1038*35mm
-
Weight:
-
23.5kg
-
NUMBER OF CELLS:
-
72 pcs
-
tolerance:
-
0-+5
-
glass:
-
3.2mm low iron tempered suede glass
-
Application:
-
Commercial
-
Solar cell:
-
A-grade
-
Connector:
-
MC4 Compatible Connector
-
Junction Box:
-
IP68 Rated
-
Certificate:
-
tuv
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, N-TYPE, TOPCON, BIPV
-
Panel Efficiency:
-
21%
-
Warranty:
-
25 YEARS
-
Brand Name:
-
Shenya
-
Model Number:
-
HS-M166H672- 435-455W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2094*1038*35mm
-
Weight:
-
23.5kg
-
NUMBER OF CELLS:
-
72 pcs
-
tolerance:
-
0-+5
-
glass:
-
3.2mm low iron tempered suede glass
-
Application:
-
Commercial
-
Solar cell:
-
A-grade
-
Connector:
-
MC4 Compatible Connector
-
Junction Box:
-
IP68 Rated
-
Certificate:
-
tuv
Product Paramenters
Model:
HS-M166H672-435-455W
|
Power Class
|
435
|
|
440
|
|
445
|
|
450
|
|
||||||||
|
Module Efficiency(%)
|
20.5
|
|
20.7
|
|
20.9
|
|
21.1
|
|
||||||||
|
Tolerance(W)
|
0~+5
|
|
0~+5
|
|
0~+5
|
|
0~+5
|
|
||||||||
|
Test Environment
|
STC
|
NOTC
|
STC
|
NOTC
|
STC
|
NOTC
|
STC
|
NOTC
|
||||||||
|
Maximum Power Pmax(W)
|
435
|
322
|
440
|
325.8
|
445
|
329.5
|
450
|
333.2
|
||||||||
|
Open Circuit Voltage Voc(V)
|
49.42
|
46.08
|
49.62
|
49.28
|
49.86
|
49.52
|
50.1
|
49.76
|
||||||||
|
Short Circuit Current Isa(A)
|
11.28
|
9.06
|
11.35
|
9.11
|
11.41
|
9.16
|
11.48
|
9.22
|
||||||||
|
Maximum Power Voltage Vm(V)
|
40.79
|
37.68
|
40.99
|
37.88
|
41.19
|
38.07
|
41.39
|
38.26
|
||||||||
|
Maximum Power Current Im(A)
|
10.67
|
8.54
|
10.74
|
8.59
|
10.88
|
8.7
|
10.95
|
8.76
|
||||||||
|
Cell Type (mm)
|
166*83(9BB Mono-Crystaline Silicon)
|
|
|
|
|
|
|
|
||||||||
|
Cell Orientation (Pcs)
|
144(6*24)
|
|
|
|
|
|
|
|
||||||||
|
Maximum System Voltage (V)
|
DC1500
|
|
|
|
|
|
|
|
||||||||
|
Temp.Coeff.of Voc (%/℃)
|
-0.285
|
|
|
|
|
|
|
|
||||||||
|
Temp.Coeff.of Isc (%/℃)
|
0.055
|
|
|
|
|
|
|
|
||||||||
|
Temp.Coeff.of Pm (%/℃)
|
-0.365
|
|
|
|
|
|
|
|
||||||||
|
Operating Temperature (℃)
|
-40 to 85
|
|
|
|
|
|
|
|
||||||||
|
Nominal Operating Cell Temperature(NOCT) (℃)
|
45 ±2
|
|
|
|
|
|
|
|
||||||||
|
Max.Series Fuse (A)
|
20
|
|
|
|
|
|
|
|
||||||||
|
Pressure Bearing (Pa)
|
5400
|
|
|
|
|
|
|
|
||||||||
|
Wind Bearing (Pa)
|
2400
|
|
|
|
|
|
|
|
||||||||
|
STC: Irradiance 1000W/m2, Cell temperature 25 ℃, AM1.5
NOCT: Irradiance 800W/m2, Ambient temperature 20 ℃, Wind speed 1m/s
|
|
|
|
|
|
|
|
|
||||||||
|
MATERIAL DETAILS
|
|
|
|
|
|
|
|
|
||||||||
|
Frame
|
Anodized aluminum
|
|
|
Glass
|
|
3.2mm low-iron tempered suede glass
|
|
|
||||||||
|
Cell
|
6*24pcs 166*83mm mono solar cellmm mono solar cell
|
|
|
Junction Box
|
|
IP≥68, 3 diodes
|
|
|
||||||||
|
Diode quantity
|
3
|
|
|
Cable&Connector
|
|
4mm², EVO2 or EVO2 compatible
|
|
|
||||||||
|
Cable length
|
300mm or as customer’s requirements
|
|
|
|
|
|
|
|
||||||||
|
PACKING DETAILS
|
|
|
|
|
|
|
|
|
||||||||
|
Dimension
|
2094*1038*35mm
|
|
|
Weight
|
23.5kg
|
23.8kg
|
|
|
||||||||
Warranty
12 years product warranty,
25 years power linear warranty.

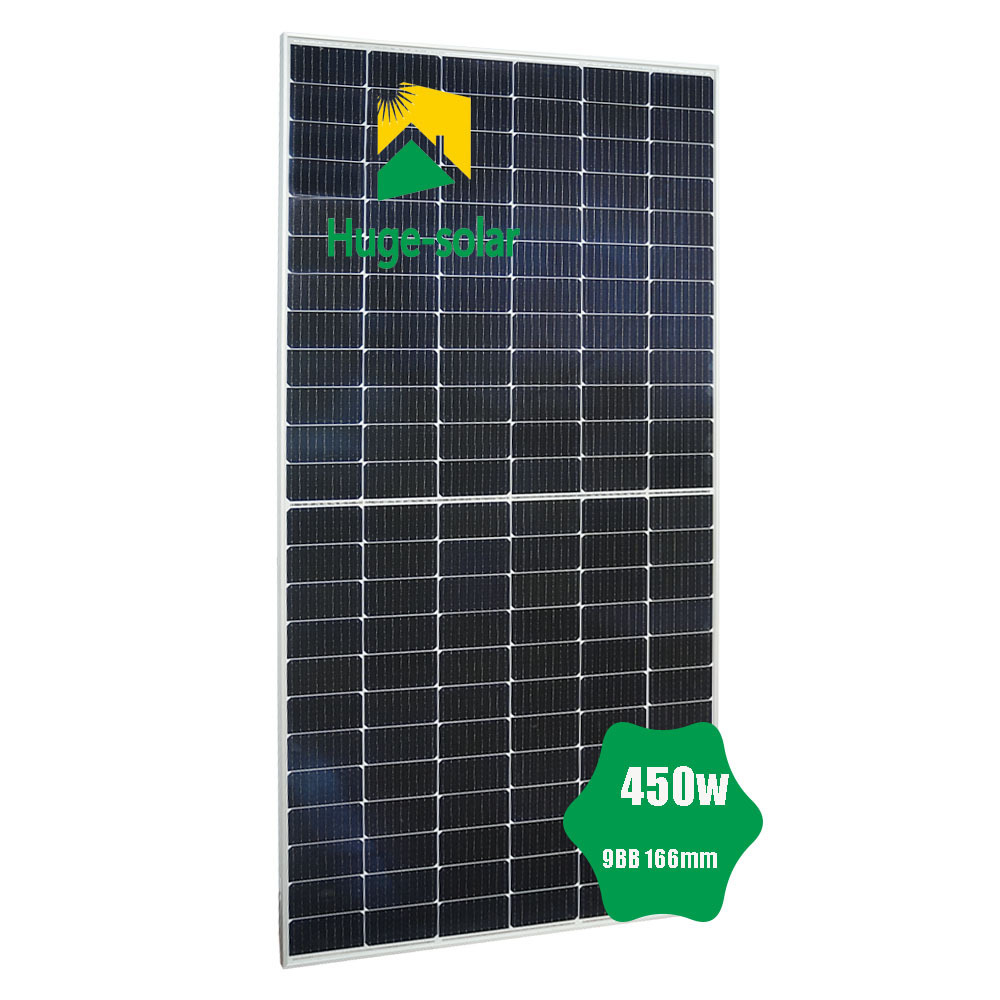

Products Description
GLASS
*Antireflective glass
* Self-cleaning function
*Module efficiency is increased by 2%
*Service life is as long as 25 years(30 years optional)
*Translucency of normal luminance is increased by 2%
SOLAR CELL
*uniform color
*High pid resistant
*low breakage rate
*high shunt-resistance
*high model efficiency up to 20%
FRAME
*conventional frame
*Seal-lip design glue injection
*Silver or black frames are optional
*Serrated-clip design tensile strength
* Boost bearing capability and prolong service life
JUNCTION BOX
*Heat dissipation
*Long service life
*>IP67 PROTECTION LEVEL
*Innovative full glue filled
*Waterproof junction box
