Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AMPXL
-
Model Number:
-
AMPXL-2318
-
Rated voltage:
-
300/500
-
Conductor material:
-
BC/ CCS/CCA/CCAG/TC
-
Conductor diameter(mm):
-
80x0.2mm
-
Insulation diameter(mm):
-
0.8mm
-
Sheath thickness(mm):
-
1.0mm
-
Jacket diameter(mm):
-
8.9x11.0
-
Certificate:
-
CE , RoHs , CCC , testing , ISO9001
-
Factory:
-
more than 25years
-
Package:
-
carton box
Quick Details
-
Insulation Material:
-
PE
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AMPXL
-
Model Number:
-
AMPXL-2318
-
Rated voltage:
-
300/500
-
Conductor material:
-
BC/ CCS/CCA/CCAG/TC
-
Conductor diameter(mm):
-
80x0.2mm
-
Insulation diameter(mm):
-
0.8mm
-
Sheath thickness(mm):
-
1.0mm
-
Jacket diameter(mm):
-
8.9x11.0
-
Certificate:
-
CE , RoHs , CCC , testing , ISO9001
-
Factory:
-
more than 25years
-
Package:
-
carton box

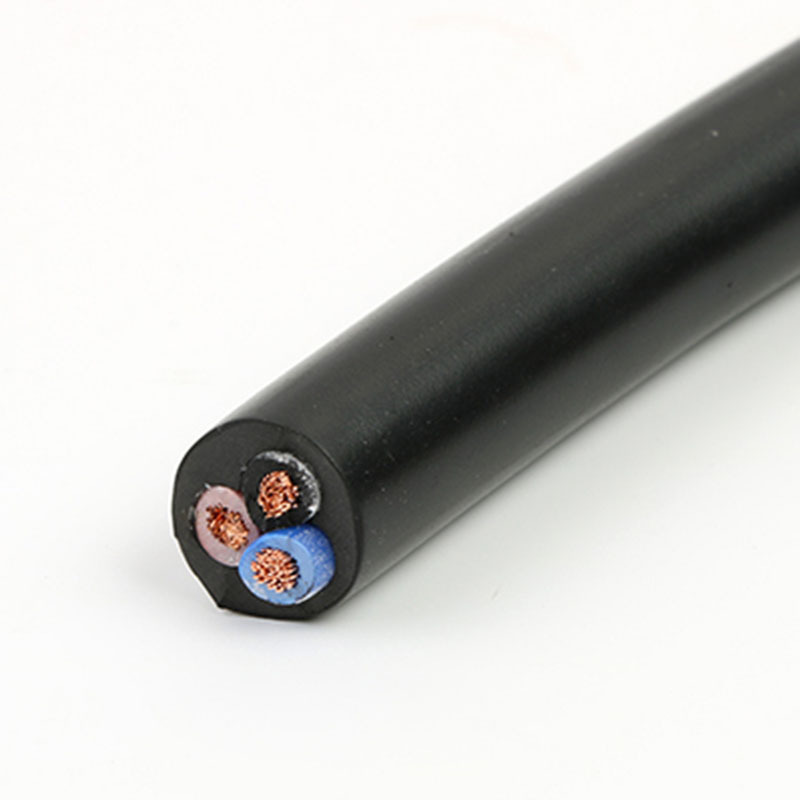

CE RoHs approved 2.5 mm electrical cable price
1. Application
Multi-conductors control for guard against theft and alarm system;
Internal control for electrical appliance ;
Signal transmission for PC control instrument ;
Electrical equipment and automatic installation .
2. Technical Parameter
| Product Code | AMPXL-2318 | |
| IEC Type | 53 | |
| Rated voltage | 300/500 | |
| No.of coresxcross-section | 2x2.5 | |
| No./mm Conductor | 80x0.2 | |
| Insulation diameter(mm) | 0.8 | |
| Sheath thickness(mm) | 1 | |
| The average external diameter or dimension(mm) | Lower | 8.9 |
| Limit | 11 | |
| Insulation resistance Mini at 70 °C | 0.009 | |
3. Certificate And Testing report
CE , RoHS , CCC , GMC , ISO9001 , etc .
4. Package
Packing length : 100m/roll , 200m/roll , 300m/roll ;
Inner packing : plastic cover / wooden drum / paper drum ;
Outer packing : 5 or 6 roll / carton box ;
Other packing according to customers’ request !
