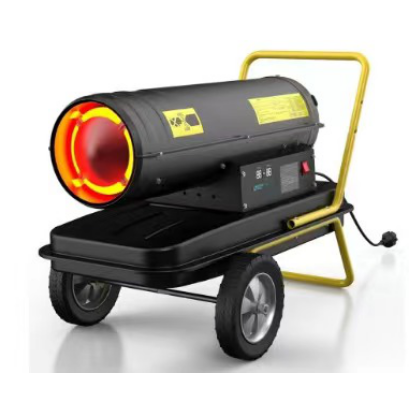

GONGLE High Temperature Resistance Garden Agriculture Kerosene Heaters Indoor Fan With Thermostat

GONGLE High Temperature Resistance Garden Agriculture Kerosene Heaters Indoor Fan With Thermostat

FOB Reference Price: Get Latest Price

≥5 Sets

US $211

≥50 Sets

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: GONGLE

Dimension(L*W*H):: 1050*490*615MM or Customized

Weight:: 28 KG

Working Temperature Range:: -5 - 55 ℃

Product name:: Poultry hot air heater

Keywords:: air heater

Application:: Poultry farm /chicken house/ganado/broiler

Fuel:: Diesel/kerosene/gas/LPG

Voltages available:: 220-240v

safety:: Cut-off protection,re-plugged in will not work automatically

Feature:: Free standing & portable::

Air output:: 550m3/h

Oil consumption:: 1.0-1.7L/h

Quick Details

Type:: Air Heater

Power Source:: Diesel

Voltage:: 220V

Place of Origin:: Shandong, China

Brand Name:: GONGLE

Dimension(L*W*H):: 1050*490*615MM or Customized

Weight:: 28 KG

Working Temperature Range:: -5 - 55 ℃

Product name:: Poultry hot air heater

Keywords:: air heater

Application:: Poultry farm /chicken house/ganado/broiler

Fuel:: Diesel/kerosene/gas/LPG

Voltages available:: 220-240v

safety:: Cut-off protection,re-plugged in will not work automatically

Feature:: Free standing & portable::

Air output:: 550m3/h

Oil consumption:: 1.0-1.7L/h

Product Description

GONGLE High Temperature Resistance Garden Agriculture Kerosene Heaters Indoor Fan With Thermostat

a.Direct Fired Heaters, no chimney;
b.Diesel fuel or kerosene;
c.Gas atomization burner;
d.Stainless steel combustion chamber with the automatic cooling device;
e.Electronic flame monitoring;
f.Automatic electronic safety control devices;:

Specification

Model No.	Power (kw)	Voltage/Hz	Air volume (m3/h)	Tank capacity (L)	Fuel consumption (L/H)	Product size / Packing size (MM)	N.W/ G.W (KG)
GLH-10	10	220-240V/50	450	19	0.8	750315415/ 795370440	13.6/15.2
GLH-20	20	220-240V/50	550	19	1.6	750315415/ 795370440	14/15.6
GLH-30	30	220-240V/50	720	38	2.4	880456590/ 905420490	21/23
GLH-50	50	220-240V/50	1100	56	4.0	1090490585/ 1045465570	27/31.8
GLH-70	70	220-240V/50	1300	69	5.4	1215580705/ 1110505680	21/23
GLH-100	100	220-240V/50	1300	69	7.9	1215580705/ 1110505680	40.8/45.8
GLH-120	120	220-240V/50	4000	120	9.3	17236511025/ 10867121185	90/150

Motor
1.Pure copper motor 2.Primary safety of insulation 3.Fully enclosed waterproof and dustproof :IPX4 4.Leakage protection, high
current grounding wire 5.Pure aluminum shell anti-rust, fast heat dissipation

Large Air Duct,Large Heat
GONGLE Diesel heater with enlarged air duct, rapid heating and uniform temperature
1.Special baking paint coating, anti corrosion and corrosion resistance

2.High strength galvanized sheet, high hardness, impact resistance

3.Convection insulation, not hot 4.Stainless steel combustion cylinder, high temperature resistant

One key intelligent constant temperature control
1.Dual display computer version

2.The key numerical control panel ,More accurate control, More sufficient combustion

3.External temperature control probe 4.Precise temperature control

Working pressure gauge
The internal air pressure is regulated according to the environment. The machine already to be with optimum pressure,if need to be
adjustment, please contact the technician for help.

Oil tank

Thickened 8mm steel oil tank Visual oil scale

Imported nozzle

Imported nozzle, stable quality

Imported gear pump
Imported gear pump,Intelligent Temperature control ,More powerful and reassuring.
The fuel filter bowl is used together Filter impurities in oil to ensure service life

Oil tank

The oil tank port is equipped with filter screen,Impurity filtration

Technical tips:

1.Maintenance Tips
1.Every 500 hours is a maintenance interval. If the working environment is bad (breeding farm, dusty occasion.etc), the
maintenance period need to be shortened to 250 hours2.Inspection items
2.1.Clean or replace the filter sponge inside the air pump(Inlet/Outlet)
2.2.Clean or replace the oil suction filter
2.3.Clean the ignition pin(Brush off the accumulated carbon on the needle due to ignition)
2.4.Clean the oil tank, open the drain nut at the bottom of the oil tank, discharge the internal residue, and clean the inside of
the oil tank with clean diesel or kerosene
Remarks:
Filter sponge, oil suction filter and oil nozzle are vulnerable parts, not within one year free warranty period

2.Installation Tips

A：Handle

B: Lower steel pipe

C: Cotter pin

D: Nut 8PCS

E: Nut

F: Wheel

G: Flat pad

H: Wheel axle

I: Oil tank

J: Screw

Successful project

GONGLE Air heater is widely used in Animal husbandry, Greenhouse, Factory workshop, Pipeline heating, Log drying, Decoration quick drying,and can customized the model for swine fever disinfection.
