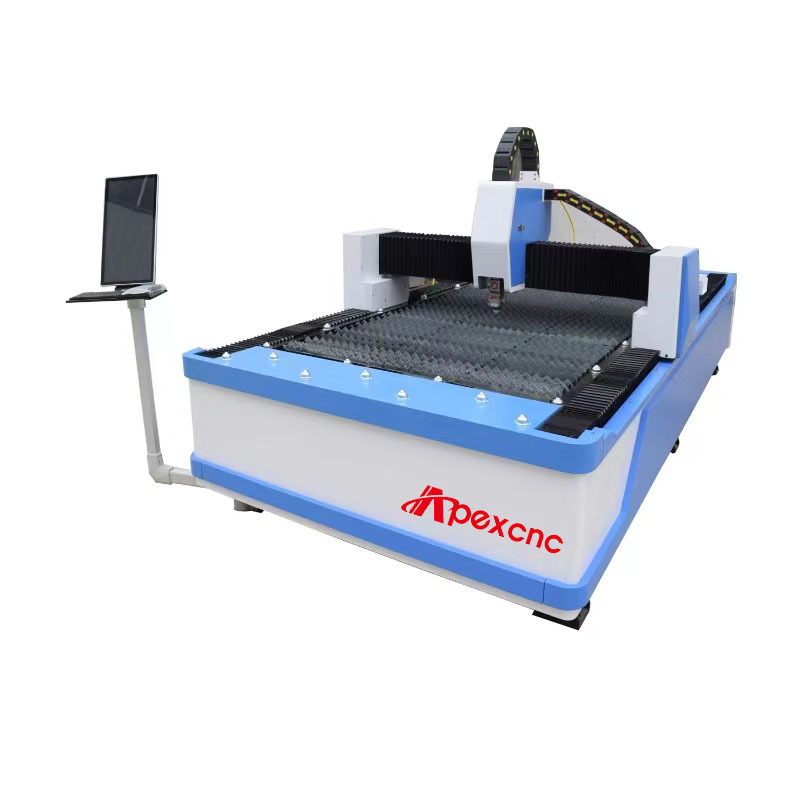

Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum
Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum
Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum
Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum
Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum
Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum
Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum
Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum

Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum

FOB Reference Price: Get Latest Price
≥1 Sets
US $16500
≥5 Sets
US $14800
≥10 Sets
US $12800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Control System Brand:
Cypcut
Cutting Thickness:
Depends
Control Software:
Cypcut
Place of Origin:
Shandong, China
Brand Name:
APEX
Weight (KG):
2000 KG
Product name:
Fiber Laser Metal Cutting Machine
Control system:
FSCUT 2000E
Laser head:
Raytools Auto-focus Cutting Head
Laser source:
Raycus/MAX/IPG
Driving system:
Yaskawa Servo Motor
Working table:
Sawteeth/Blade Working Table
Transmission:
Gear Rack
Reducer:
Japan Shimpo Reducer
After Warranty Service:
Support Online Support

Quick Details

Laser Type:
Fiber Laser
Cutting Speed:
depending on material and thickness
Cooling Mode:
WATER COOLING
Control System Brand:
Cypcut
Cutting Thickness:
Depends
Control Software:
Cypcut
Place of Origin:
Shandong, China
Brand Name:
APEX
Weight (KG):
2000 KG
Product name:
Fiber Laser Metal Cutting Machine
Control system:
FSCUT 2000E
Laser head:
Raytools Auto-focus Cutting Head
Laser source:
Raycus/MAX/IPG
Driving system:
Yaskawa Servo Motor
Working table:
Sawteeth/Blade Working Table
Transmission:
Gear Rack
Reducer:
Japan Shimpo Reducer
After Warranty Service:
Support Online Support
Industrial Laser Cutting Machine 3015 3000w Single Table Fiber Laser Cutter for Stainless Carbon Steel Aluminum

Features of fiber laser cutting machine:

1.Contemporary design: Open structure without cover, showing the cutting processing completely. 2.High processing accuracy: Equip with high torque servo motor and high precision imported reducer, high efficiency, favorable dynamic characteristics. 3.Good dynamics & cutting ability: High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability. 4.Easy operation & intelligent: Adopt the professional digital control system, good performance, high reliability and convenient operation. 5.Low running cost: Low accessing gas consumption by precision control, to ensure the low running cost, three types of auxiliary gas can be choose freely by customer.
#Raycus/MAX/IPG/RECI fiber laser generator #Cypcut control system #Raytools cutting head #Yaskawa Servo motor and driver for X,Y axis #Serrate working platform table #Taiwan PMI ball screw #Taiwan YYC gears and racks #Taiwan HIWIN square guide rail #Chiller #Reducer #Heavy-duty welded bed, cast aluminum beam
Machine specification
Model & Name
APEX-1530 fiber laser cutting machine
Brand
APEXCNC
Working Area( X,Y axis travelling)
1500mm*3000mm
Laser source
Raycus/MAX/IPG/RECI Laser source
Wavelength
1064nm
Cutting speed
depending on material and thickness
Positioning accuracy
±0.02mm
Repositioning accuracy
±0.01mm
Equipment total power
18.5KW
Water cooling System
Constant temperature water chiller
Power supply
AC 380V/220V
Location system
Red dot indicator
Machine Package Dimension
4700*2260*1900mm
Running Environment
Temperature: 0℃~45℃

Au3tech laser head

This fiber laser cutting head can be matched with different types of fiber laser sources. It’s much more stable during longtime working in high laser power with its optimized optical system and water cooling system.

Au3tech control system

Complete cutting process, debugging easily; Support all kinds of cutting process.Support multi-layer cutting or marking, and other sorts of processing ways; Support breakdown position tracking/forward/backward and so on.

Reci laser source

This series of products integrates high average power, multiple anti reflection, high beam quality and high electro-optic conversion efficiency. It can be widely used in many occasions such as fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping.

Hanli water chiller

Automatically adjust the temperature according to different working environment, no need to change settings parameters. Reduce the temperature of the laser source and the laser head through water circulation, thereby protecting these two main parts.

Leadshine servo motor and driver

It has great feature of fast response and no hunting.And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.

Key Transmission Components

Key transmission components adopt most advanced imported configuration, guarantee our machinery has the best transmission performance. Please check the equipment specification datasheet for details configuration.

Application:

Applications primarily suited for sheet metal processing,such as various metal products processing industries,agricultural machinery industry ,automobiles, aircraft and ships,electrical equipment,lighting advertising industry,elevator manufacturing,kitchen electrical appliances and so o n.
1. Whole film packaging with the fiber laser cutting machine.
2. Anti-collision package edge.
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
Jinan Apex Machinery Equipment Co., Ltd. is situated in Jinan, Shandong, China. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine etc. The new and existing customers that are spread throughout South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines have passed the CE certificate.

APEX CNC has 10 modern production and processing workshops, including the R&D workshop which can do special design for clients, 6 assembly workshops, 2 riveting and welding workshops, 2 machine processing workshops, more than 600 employees. Our machines are most popular among multi industries, and clients covering almost all the countries who doing importing and exporting business. Welcome to cooperate and to be our big sales agent.

Products including: CNC router, 5 axis machining center, 4 axis machining center, ATC CNC router, General 3 axis CNC router, CNC wood lathe, mold CNC milling machine, CO2 laser engraving cutting machine, and plasma cutting machine. Applications: woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc.

The aim of Jinan Apex CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after-sale service.

We are looking for reliable and excellent distributors all over the world. In addition to high-quality products and good after-sales service, we will also provide you with competitive prices, cooperate with your advertising, and provide a variety of advertising materials, text, pictures, and videos. For engraving and cutting a variety of different materials, we can provide professional design schemes and even drawings. We sincerely look forward to your cooperation and joining.

1. 24 hour Technical support by phone, e-mail or WhatsApp around the clock.
2. Friendly English version manual and operation video CD disk.
3. Machine will be adjusted before it is delivered, operation disk/CD was included.
4. Our technician can give you remote guide online if you have any questions.
5. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Q1: Do you have CE document and other documents for customs clearance? A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q2: If we are interested in your machine, how do we choose? A2:1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm? 3. What's your material diameter and length? 4. What material you want to cut,stainless steel,carbon steel? Please tell us, then we can recommend the suitable machine to you.
Q3: How about warranty? A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q4: Do you have after sales support? A4: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
