Quick Details
-
Brand Name:
-
Sihovision
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
15 inch BNC LCD Display Monitor
-
Aspect ratio:
-
4:3
-
View angle:
-
80°/80°/70°/70° (R/L/U/D)
-
IP grade:
-
Full IP67 Waterproof
-
Material:
-
Aluminum Alloy Front Bezel + Metal Rear Case
-
Power supply:
-
DC 12V
-
Surface treatment:
-
anti glare, vandal proof
-
Pixel Pitch:
-
0.100*0.300 (H*V)
Quick Details
-
Brightness:
-
1500 nits sunlight readable
-
Contrast Ratio:
-
700:1
-
Panel Type:
-
TFT
-
Brand Name:
-
Sihovision
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
15 inch BNC LCD Display Monitor
-
Aspect ratio:
-
4:3
-
View angle:
-
80°/80°/70°/70° (R/L/U/D)
-
IP grade:
-
Full IP67 Waterproof
-
Material:
-
Aluminum Alloy Front Bezel + Metal Rear Case
-
Power supply:
-
DC 12V
-
Surface treatment:
-
anti glare, vandal proof
-
Pixel Pitch:
-
0.100*0.300 (H*V)
15 Inch 1500 nits sun readable full IP67 waterproof BNC display interactive LCD monitor
Features
1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
2. 15'' Industrial LCD panel, high brightness 1500 nits, sunlight readable. Cover with 2MM AG glass for vandalproof.
3. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
4. Interfaces: 1* IP67 waterproof DC in +1* IP67 waterproof Video in.
5. High performance mainboard, 7x24 continuous operation.

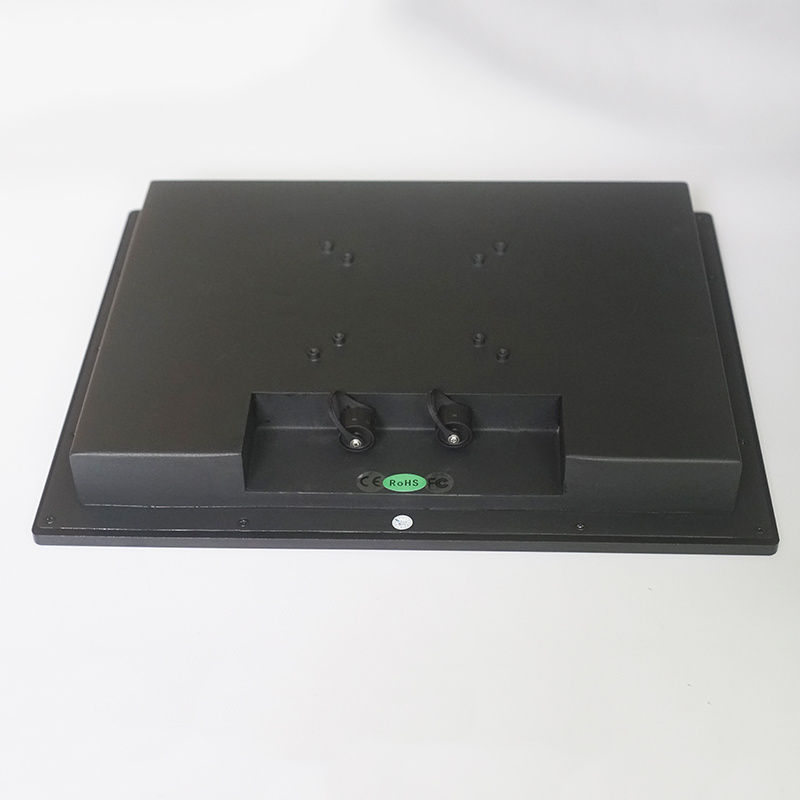

Pictures
Specifications
|
Model:SL15 |
|
|
LCD panel |
|
|
Panel size |
15" |
|
Resolution |
1024*768 |
|
Aspect ratio |
4:3 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1500 nits, sunlight readable |
|
Contrast ratio |
700:1 |
|
View angle |
80°/80°/70°/70° (R/L/U/D) |
|
Singal Ports |
|
|
BNC |
1xBNC |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
|
Support OS |
Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100-240V |
|
Working voltage |
DC 12V |
|
Power consumption |
25 W |
|
Enclosure |
|
|
Material |
aluminium alloy front bezel + High strength cold rolled steel back case |
|
Color |
Black, white, Silver, color can be customized |
|
VESA mounting |
75x75mm / 100x100 mm |
|
IP-grade |
Full IP67 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -20 to 70°C, storage: -30 to 80°C |
|
Relative humidity |
operating: 10% to 90%, storage: 5% to 90% |
|
Packing Details |
|
|
Net weight |
3.5kg |
|
Gross weight |
4.5kg |
|
Product Dimension |
37.26x29.99x4.22cm |
|
Packing size |
47x43x18 cm |
|
Accessories |
Power adapter, IP67 waterproof power cord, IP67 waterproof BNC cable |
|
Other |
|
|
Mounting (options) |
1) wall brackets for wall-mounting, VESA 100×100 mm |
|
2) stable metal holder to support the monitor |
|
|
Warranty |
1 year warranty |
Package
Small product will be packed in strong export carton box, stuffed with foam.
Large product will be packed in wooden case to avoid damage during shipping.
