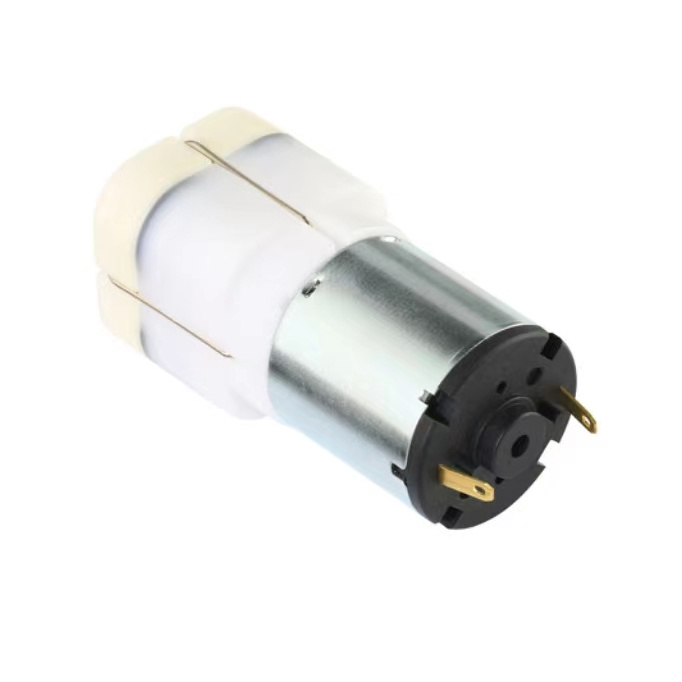

Special steel plate, fully automatic metal stamping forming, high precision, good copper core, accurate size specifications.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
3months-1year
-
Brand Name:
-
VSD
-
Model Number:
-
VAP-3208
-
Place of Origin:
-
Shenzhen,Guangdong
-
Horsepower:
-
1M
-
Outlet Size:
-
5MM
-
motor:
-
DC Motor
-
Rated Voltage:
-
DC 6.0 V
-
Rated Current:
-
≤800mA
-
Max Pressure:
-
≥450mmHg
-
Air Flow:
-
≥5LPM
-
Inflation Time (0mmHg- 300mmHg):
-
≤8S(1500cc)
-
Leakage:
-
≤10mmHg/min
-
Noise Withload:
-
≤63dB
-
Life test:
-
≥400H
-
Customized:
-
accept
Quick Details
-
Application:
-
Other, Drinking water treatment, Family Homes, HVAC OEM, Irrigation and Agriculture, Metal and Equipment Manufacturers
-
Pressure:
-
Low Pressure
-
Voltage:
-
3V/6V/12V/24V
-
Warranty:
-
3months-1year
-
Brand Name:
-
VSD
-
Model Number:
-
VAP-3208
-
Place of Origin:
-
Shenzhen,Guangdong
-
Horsepower:
-
1M
-
Outlet Size:
-
5MM
-
motor:
-
DC Motor
-
Rated Voltage:
-
DC 6.0 V
-
Rated Current:
-
≤800mA
-
Max Pressure:
-
≥450mmHg
-
Air Flow:
-
≥5LPM
-
Inflation Time (0mmHg- 300mmHg):
-
≤8S(1500cc)
-
Leakage:
-
≤10mmHg/min
-
Noise Withload:
-
≤63dB
-
Life test:
-
≥400H
-
Customized:
-
accept
Product Description
Product Paramenters
|
RATED VOLTAGE
|
RATED CURRENT
|
MAX PRESSURE
|
Air Flow
|
Inflation Time
|
Leakage
|
Noise Withload
|
Life test
|
|
DC 6.0V
|
≤800mA
|
≥450mmHg
|
≥5LPM
|
≤8S (500cc)
|
≤10mmHg/min
|
≤63dB
|
≥400H
|
Motor Outline
Customizable items: air nozzle direction (air inlet and outlet), flow rate, pressure, motor (length, thickness, life), etc.
For special needs, please contact us.
Detailed Images
We have obtained ISO9001/IATF16949 and various patentcertifications to strictlycontrol product qualityand ensure thatproducts meet customer equirements.
Using high-quality raw materials, controlling product quality from the source, and implementing strict quality control measures to provide customers with better products.
Weishida is a manufacturer of micro motors and micro pumps with an independent R&D team. It invests fixed funds in R&D and production every year, and provides customized and OEM/ODM services.
Application
Motors are widely used in medical, industrial, beauty, maternal and child health care, smart home, vehicle, drone, office, model aircraft, toy models, power tools, fitness equipment, robots, banking, communication equipment and other fields
Our Factory
We are a micro-motor/pump manufacturer with an independent R&D team which can be customized according to customer needs.Sample can be shared to you which will be finished within 10-15 working time, because we need to test quality and function before shipment
The factory area is over 10,000 square meters, with more than 40 automated production lines, more than 300 automated equipment, over 500 employees, and a daily output of over 200,000 motors. High quality assurance, high degree of automation, to meet your large-scale orders
Why Choose Us
Why choose us
1. Factory direct production and sales, integrated service
2. Strong research and development capabilities, with its own production and research and development team
3. Strong production capacity, the daily output of motors exceeds 200,000 units.
4. High quality assurance, durable, fashionable and beautiful.
5. Professional services to provide you with satisfactory solutions.
6. Perfect service system, reply your inquiry within 24 hours.
7. Timely delivery and 95% delivery accuracy.
8. Can be customized according to customer needs.
9. Provide OEM and ODM services.
Packing&Shipping
FAQ
1. Can you give me a price list?
A: All our motors are customized according to different requirements of life, noise, voltage, shaft, etc. Prices also vary based on annual quantities. So it is difficult for us to provide a price list. If you can share your detailed requirements and annual quantities, we'll see what we can offer.
2. If I have a product that I want to make with other special materials, can you make it?
A: Of course, you only need to provide us with design drawings or samples. We have an independent R&D department, which can customize the design according to customer needs to meet your customized needs. We have a professional design team that can design products according to your requirements. .We can develop new products according to your samples or drawings, and we will give you the most satisfactory answer.
3. Do you provide OEM or ODM service? Can you produce according to our drawings?
Yes. We provide OEM and ODM services, and a complete after-sales service system to ensure that your inquiry will be restored within 24 hours, ensuring worry-free after-sales
4. Q: Which shipping method can be used?
A: DHL, UPS, FedEx, TNT, EMS, China Post, and shipping are all available. Other shipping methods are also available, if you need to ship by other shipping methods, please contact us in advance.
5. Are you a manufacturer or a trading company?
A: We are a professional manufacturer with more than 11 years of experience, specializing in the production of brushed DC motors, brushless DC motors, hollow cup motors, geared motors, hub motors, pumps and other products, the diameter range of brushed motors is 10-60mm , the voltage range is 0.6V-48V, the diameter of the brushless motor is 16-120mm, and the voltage is 3.5-310V.
6. Q: How to pay?
A: We accept T/T, PayPal payment and other payment methods, please contact us before paying with other payment methods. A 30-50% deposit is provided, and the balance is paid before shipment.
7. Q: How long does it take to produce samples?
A: For conventional models, our production time for samples is 3-5 days, and the time for developing new models is about 25 days. Our independent R&D team has absolute advantages in developing new models.
8.Q: How long is the regular delivery time?
A: The general delivery time is 15-25 days. The specific delivery time will vary according to the number of customer orders and the season. If your order is urgent, we are willing to work overtime for free.
