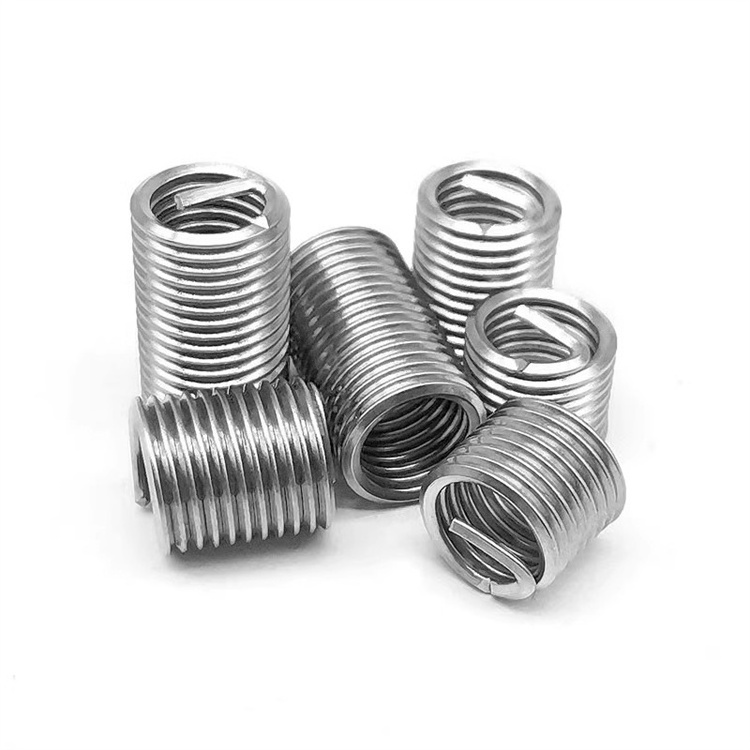

Wire Thread Helical Insert M3 Stainless Steel Helical Coil Insert Thread Screw Fasteners

Wire Thread Helical Insert M3 Stainless Steel Helical Coil Insert Thread Screw Fasteners

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.03

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Delivery time:: 5-15 Days

Quick Details

Application:: Healthcare, Food & Beverage, General Industry, Heavy Industry, Mining

Product name:: Wire Thread Helical Insert

Material:: Stainless Steel

Delivery time:: 5-15 Days

Products Description

Thread Size			Installed length			Outside diameter d1			For Maximum Hole Diameter
d	P	Nominal	L	min	max	d2	L1
M2	0.4	1d	2	2.5	2.7	2.1	4.3
							1.5d	3		5.3
							2d	4		6.3
							2.5d	5		7.3
M2.5	0.45	1d	2.5	3.3	3.5	2.6	5.1
							1.5d	3.75		6.35
							2d	5		7.6
							2.5d	6.25		8.85
M3	0.5	1d	3	3.8	4	3.2	5.8
							1.5d	4.5		7.3
							2d	6		8.8
							2.5d	7.5		10.3
M3.5	0.6	1d	3.5	4.55	4.75	3.7	6.9
							1.5d	5.25		8.65
							2d	7		10.4
							2.5d	8.75		12.15
M4	0.7	1d	4	5.05	4.25	4.2	7.8
							1.5d	6		9.8
							2d	8		11.8
							2.5d	10		13.8
M5	0.8	1d	5	6.35	6.6	5.2	9.2
							1.5d	7.5		11.7
							2d	10		14.2
							2.5d	12.5		16.7

Thread Size			Installed length			Outside diameter d1			For Maximum Hole Diameter
d	P	Nominal	L	min	max	d2	L1
M6	1	1d	6	7.6	7.85	6.3	11.1
							1.5d	9		14.1
							2d	12		17.1
							2.5d	15		20.1
M8	1.5	1d	8	9.85	10.1	8.4	14.2
							1.5d	12		18.2
							2d	16		22.2
							2.5d	20		26.2
M10	1.5	1d	10	12.1	12.5	10.5	17.3
							1.5d	15		22.3
							2d	20		27.3
							2.5d	25		32.3
M12	1.75	1d	12	14.4	14.8	12.5	20.3
							1.5d	18		26.3
							2d	24		32.3
							2.5d	30		38.3
M14	2	1d	14	16.8	17.2	14.5	23.3
							1.5d	21		30.3
							2d	28		37.3
							2.5d	35		44.3
M16	2	1d	16	19	19.4	16.5	25.3
							1.5d	24		33.3
							2d	32		41.3
							2.5d	40		49.3

Thread Size			Installed length			Outside diameter d1			For Maximum Hole Diameter
d	P	Nominal	L	min	max	d2	L1
M18	2.5	1d	18	21.5	22	18.75	29.2
							1.5d	27		38.2
							2d	36		47.2
							2.5d	45		56.2
M20	2.5	1d	20	23.7	24.2	20.75	31.2
							1.5d	30		41.2
							2d	40		51.2
M22	2.5	1d	22	26.3	26.8	22.75	33.2
							1.5d	33		44.2
							2d	44		55.2
M24	3	1d	24	28.6	29.1	24.75	37.1
							1.5d	36		49.1
							2d	48		61.1
M27	3	1d	27	32.2	32.7	27.75	40.1
							1.5d	40.5		53.6
							2d	54		67.1
M30	3.5	1d	30	35.2	35.7	31	45.2
							1.5d	45		60.2
							2d	60		75.2
