Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-600WSDH
-
Beam Angle(°):
-
25/40/60/65*140°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
160-170lm/w, 65000LM high bright led flood lights
-
Working Lifetime(Hour):
-
50000
-
Power Driver:
-
Meanwell reflectors for soccer field
-
Packaging:
-
one piece per carton exterior led floodlights
-
Replacement:
-
1800w-2000w metal halide/ halogen light
-
Dimming Function:
-
0/1-10v, PWM, DALI dimmable
-
Wattage Options:
-
400w to 1000w led flood light
-
Applications:
-
tennis court, football field, golf course, baseball court, parking lot
-
Beam angle:
-
25/40/60/65*140° led spotlight stadium 600w
-
Voltage Options:
-
110v, 220v, 347v, 480v Modular stage lighting
-
LED Light Source:
-
180lm/w SMD5050 chips led badminton court lamp
Quick Details
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, wattage recommendations
-
Control Mode:
-
Remote Control, Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-600WSDH
-
Beam Angle(°):
-
25/40/60/65*140°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
160-170lm/w, 65000LM high bright led flood lights
-
Working Lifetime(Hour):
-
50000
-
Power Driver:
-
Meanwell reflectors for soccer field
-
Packaging:
-
one piece per carton exterior led floodlights
-
Replacement:
-
1800w-2000w metal halide/ halogen light
-
Dimming Function:
-
0/1-10v, PWM, DALI dimmable
-
Wattage Options:
-
400w to 1000w led flood light
-
Applications:
-
tennis court, football field, golf course, baseball court, parking lot
-
Beam angle:
-
25/40/60/65*140° led spotlight stadium 600w
-
Voltage Options:
-
110v, 220v, 347v, 480v Modular stage lighting
-
LED Light Source:
-
180lm/w SMD5050 chips led badminton court lamp
Features of output high power 400w/500w/600w/800w/1000w led flood light
1. 400w -1000w
2. AC100-277V
3. 5 years warranty
4. CE RoHS SAA C-tik EMC LVD FCC certificated
football stadium led lighting 500w 600w 700w 900w led floodlight
| 600W LED Floodlight Main Technical Parameters | |||
| Item No.: | RB-FLL-500WSD | ||
| Input Voltage: | AC100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >95% | ||
| LED Power | 600W | ||
| Lamp Driver` | Meanwell | ||
| LED Chip | SMD3030 chip | ||
| LED Luminous Efficiency | 150LM/W | ||
| System Consumption: | 515W | ||
| Luminous Flux | 75000LM | ||
| Viewing Angle: | 60/90/65*140Deg | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 4000K~5000K | ||
| Cool White | 5000K~6000K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| LED Junction Temperature: | ≤115℃ | ||
| Working Temperature: | –30℃~55℃ | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm2 three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| N.W.: (KG) | 15KG | ||
| Packing Dimension | 630*530*170MM | ||
| Certificate | CE//ROHS | ||

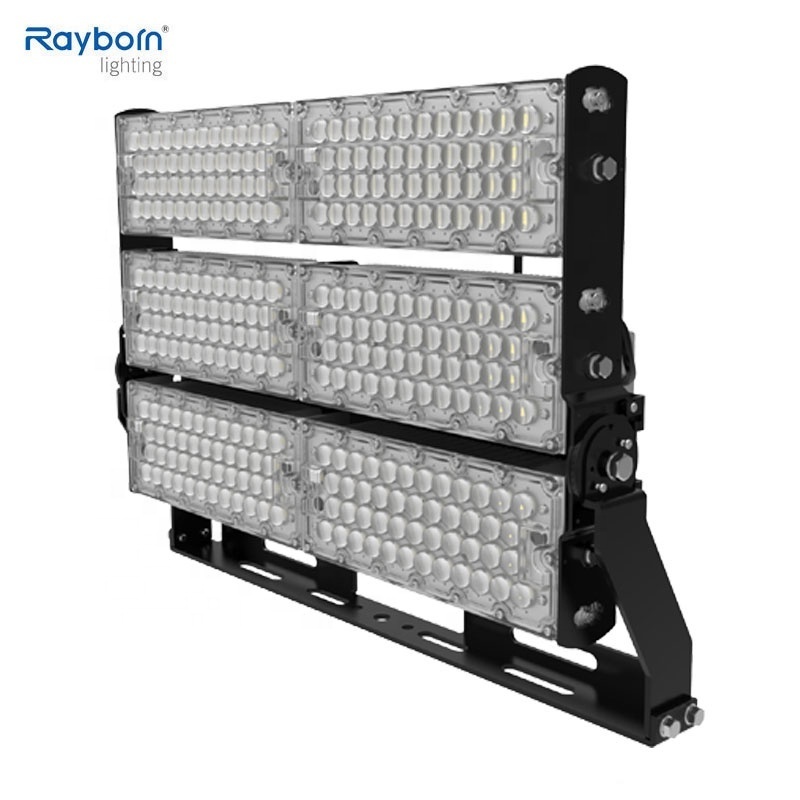

Images of 600w led flood light
LED Flood light Features
LED Chip
:
170lm/w 5050
LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply:
LED flood light use Meanwell approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Radiator:
Better heat dissipation and lighter weight,effectively extending the life of the light source.
Thermal design:
Designed by the principle of strong air convection,the chip spiral heat dissipation performance is excellent,and the service life of the light source is guaranteed.
Angle Adjustable:
Adjustable stainless steel mounting bracket allows you to direct light where you need it.
Waterproof: IP65 waterproof rating,completely prevent foreign objects from invading,can withstand heavy rain and strong water spray.
At least 24 hours aging test before shipping
3000k/ 4000k/ 5000k/ 6000k different color temperature available
More choices for led flood light
Applications of led flood light
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Warranty and Warranty terms
We offer five-year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Packaging details about led floodlight:
1). Label on backside of each box and your required label are available;
2). One piece per carton;
3). Regular packing, also can be customeized according to customer's requirements.
Shipping ways:
1. Express: By UPS/DHL/FEDEX/TNT it takes 3- 5 days to arrive the destination.
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements
