50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron
50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron
50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron
50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron
50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron
50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron
50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron
50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron

50x50x6mm Garage Door Heavy Duty Ke Angle Bar Ruler Cast Structural Square Iron

FOB Reference Price: Get Latest Price
≥5000 Pieces
US $0.52
≥10000 Pieces
US $0.5
≥50000 Pieces
US $0.48
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Tolerance:
±1%
Invoicing:
by theoretical weight
Place of Origin:
Shandong, China
Brand Name:
HeFa
Model Number:
Angle Steel
Application:
Roof beams, bridges, transmission towers, etc
Product name:
Angle Steel
Material:
Q235B/Q355B/SS400/SS490/ST52/Q390B/Q420B/S235JR/S275JR/S355JR
Thickness:
3-24mm
Shape:
Equilateral Angle Bar
MOQ:
1 Ton
Length:
1-12m
Technique:
Hot Rollled
Usage:
Construction Material Building Material
Surface:
grinding and polishing
Package:
Waterproof Paper + Woodern Case

Quick Details

Standard:
AiSi, ASTM, bs, DIN, GB, JIS
Grade:
Q235/Q345/SS400/ST37-2
Type:
Equal/Unequal
Tolerance:
±1%
Invoicing:
by theoretical weight
Place of Origin:
Shandong, China
Brand Name:
HeFa
Model Number:
Angle Steel
Application:
Roof beams, bridges, transmission towers, etc
Product name:
Angle Steel
Material:
Q235B/Q355B/SS400/SS490/ST52/Q390B/Q420B/S235JR/S275JR/S355JR
Thickness:
3-24mm
Shape:
Equilateral Angle Bar
MOQ:
1 Ton
Length:
1-12m
Technique:
Hot Rollled
Usage:
Construction Material Building Material
Surface:
grinding and polishing
Package:
Waterproof Paper + Woodern Case

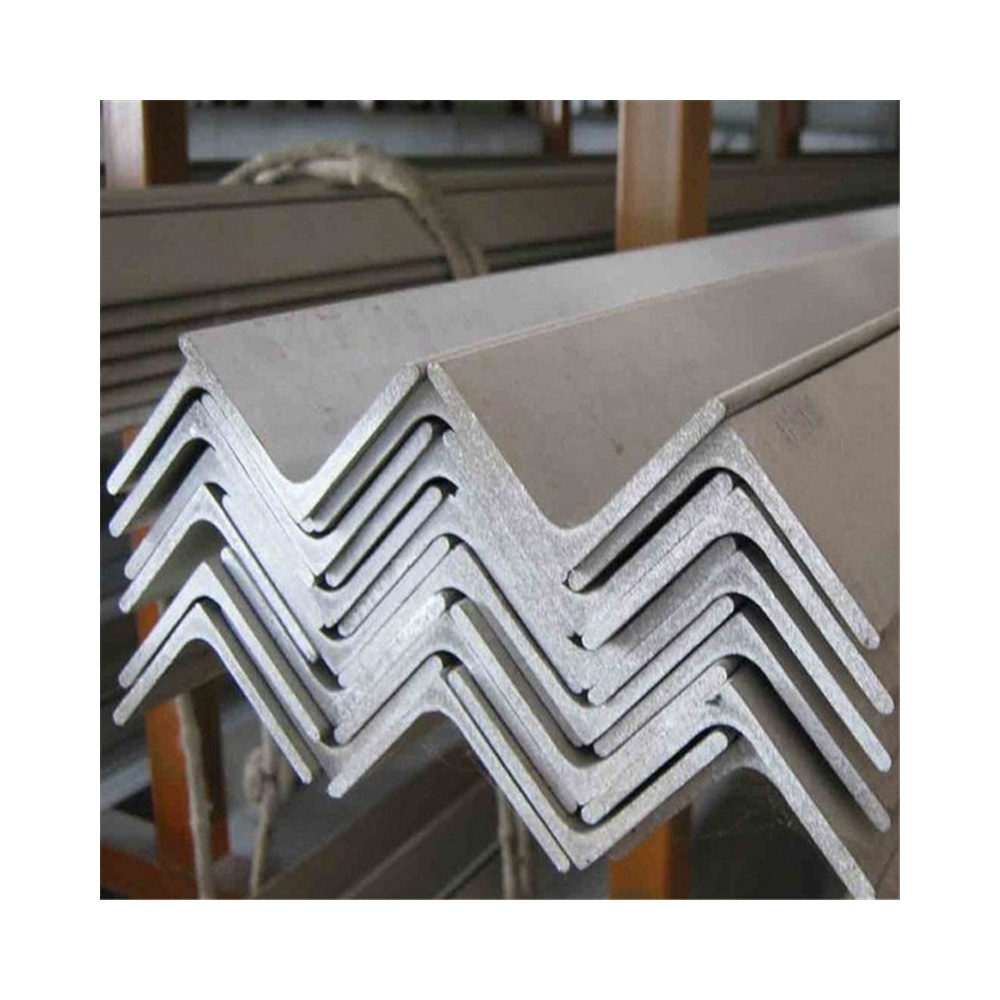

Angle steel is a carbon structural steel for construction. It is a section steel with a simple section. It is mainly used for metal components and the frame of factory buildings. In use, it requires good weldability, plastic deformation performance and certain mechanical strength. The raw material billets for the production of angle steel are low-carbon square billets, and the finished angle steel is delivered in a hot-rolled, normalized or hot-rolled state.
PRODUCT PARAMETERS
Product Name
Steel Angle
Grade
Q235B/Q355B/Q420B of GB standard;S235JR/S355JR/S355JO/S355J2 of EN standard;SS400/SS540 of JIS standard;A36, A572 gr.50/60 of ASTM
standard;Gr. A, Gr. B, Gr. AH32, AH36 of ABS, CCS, VL, LR, BV, KR, RINA and NK standards
Material
Q195,Q215,Q235B,Q345B,S235JR/S355JR/SS400
Thickness
6-35mm
Length
6m, 9m, 12m or as customized
Surface Finish
No.1, 2B mill finish, BA bright annealed,
Application
Widely used in various building structure and engineering structure, such as the beam, bridges, transmission tower, lifting transportation machinery, ship, industrial furnace, reaction tower and container frame etc.
Packing
Standard sea worthy packing, tied by steel strip
Or pack as customized requirement
if require ,then pack into wooden
Technique
Hot rolled/Cold rolled/Galvnized

Cost-Effective

Under the same supporting strength, the weight of angle is lighter, consuming less material and saving cost. It has the advantages of flexible construction and occupies less space.

Wide Application

Because of its high cost performance, it is widely used in many fields such as housing construction, bridges, tunnels, wire towers, ships, brackets, steel structures, etc., playing the role of supporting or fixing structures.
Equal Angle
Specification(mm)
Theoretical weight(kg/m)
Specification(mm)
Theoretical weight(kg/m)
Specification(mm)
Theoretical weight(kg/m)
25*25*2.5
0.98
65*65*6
5.91
125*125*12
22.7
25*25*3
1.12
65*65*8
7.66
130*130*9
17.9
30*30*2.5
1.17
70*70*5
5.76
130*130*10
19.7
30*30*3
1.36
70*70*6
6.38
130*130*12
23.4
30*30*4
1.78
70*70*7
7.35
130*130*15
28.8
30*30*5
2.16
70*70*8
8.37
140*140*10
21.49
38*38*3
1.72
75*75*6
6.85
140*140*12
25.52
38*38*4
2.26
75*75*8
8.92
140*140*14
29.49
40*40*3
1.83
75*75*9
9.96
150*150*12
27.3
40*40*4
2.41
75*75*10
11.02
150*150*15
33.6
40*40*5
2.92
80*80*6
7.32
150*150*16
35.8
40*40*6
3.5
80*80*7
8.48
160*160*12
29.39
45*45*4
2.74
80*80*8
9.55
160*160*14
33.99
45*45*5
3.38
80*80*10
11.87
160*160*16
38.52
50*50*3
2.33
90*90*6
8.28
175*175*12
31.8
50*50*4
3.06
90*90*7
9.59
175*175*15
39.4
50*50*5
3.77
90*90*8
10.9
180*180*12
33.16
50*50*6
4.43
90*90*9
9.59
180*180*14
38.38
50*50*8
5.82
90*90*10
13.3
180*180*16
43.54
55*55*5
4.17
100*100*6
9.22
180*180*18
48.63
56*56*4
3.493
100*100*7
10.7
200*200*14
42.9
56*56*5
4.326
100*100*8
12.1
200*200*15
45.3
60*60*4
3.68
100*100*10
14.9
200*200*18
54.4
60*60*5
4.55
100*100*12
17.9
200*200*20
59.7
60*60*6
5.41
100*100*13
19.1
200*200*25
73.6
60*60*8
7.09
110*110*7
11.92
250*250*20
76.18
63*63*5
4.81
110*110*8
13.47
250*250*25
93.77
63*63*6
5.72
110*110*10
16.69
250*250*28
104
63*63*7
6.54
125*125*8
15.51
250*250*30
111.32
65*65*5
5
125*125*10
19.14
250*250*35
128
We offer equal and unequal angle steels according to the depth of legs and depending on the customer’s requirement.
Hot Products
PACKING & TRANSPORTATION
ABOUT US
Shandong Hefa Steel Co., Ltd. Is a Large-Scale International Steel Production and Sales Enterprise Integrating Production, Sales, Processing, Distribution and Service. The Company Built a Factory in 2012, Covering an Area of 50,000 Square Meters. There Are 360 Employees, Including 5 Senior Engineers, 10 Engineers and 40 Professional and Technical Personnel. 14 Steel Production Lines, 10 Processing Equipment, Processing, Bending, Painting, Heat Treatment, Cutting, Drilling, Groove, Tempering, Surface Treatment, Etc. Testing Equipment Is Complete, Strong Technical Force. Annual Production Capacity of More Than 60,000 Tons.
The Company Has Passed the Iso9001 International Quality Management System Certification, And Has Obtained Provincial Enterprise Credit Certificate, Enterprise Credit Certificate, Quality Service Certificate, Integrity Management Demonstration Unit and Other 8 Quality System Certification Certificates.
The Main Products of the Company: Steel Bar, Stainless Steel, Aluminum, Carbon Steel, Alloy Steel, Plate, Profile, Pipe and so On.
The Company Has Established Perennial Cooperative Relations with Chengdu Iron and Steel Group, Metallurgical Steel Group, Baotou Steel Group, Baosteel Group, Angang Steel Group, Tianjin Seamless, Northeast Special Steel, And Other Well-Known Domestic Major Steel Mills. Applicable to Petroleum, Chemical, Electric Power, Metallurgy, City Gas, Heat Pipe Network, Ships and Other Industries.The Company's Business Philosophy: "The Same Product Than Quality, The Same Quality Than Price, The Same Price Than Service, The Same Service Than Reputation."
Our customers
FAQ
1. CAN I GET SOME SAMPLES?
Yes. We can provide samples, you need to pay the sample fee and shipping cost in advance. We will refund the sample fee after you place your order. Please let us know your courier account or send us your fees and we will arrange to send you a sample.
2. CAN YOU PRODUCE ACCORDING TO THE SAMPLES?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
3. WHAT IS YOUR TERMS OF PAYMENT?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. If you have another question,pls feel free to contact us ASAP.
4. WHAT IS YOUR TERMS OF DELIVERY?
EXW, FOB, CFR, CIF, DDU.
5. CAN WE VISIT YOUR FACTORY?
Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
6. HOW ABOUT YOUR DELIVERY TIME?
Generally speaking, 10 to 25 days after receiving your advance payment.The exact delivery time depends on the goods and quantity you ordered.
7. AFTER-SALE ADVANTAGES.
Year warranty for products; If you find any defective parts for the first time, we will provide you with new parts for free in the next order. As an experienced manufacturer, you can be assured of quality and after-sales service.
