Quick Details
-
Model Number:
-
FL335XXX60xxxx1-IP65
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC12V/24V AC220V
-
Lamp Luminous Flux(lm):
-
809 lm
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-20 - 45
-
Color Temperature(CCT):
-
2700K 3000K 4000K 4500K 5000K 6000K 6500K 7000K
-
LED Light Source:
-
SMD 335
-
IP Rating:
-
IP20 IP54 IP65 IP67
-
LED QTY:
-
60 LEDs/m
-
PCB Color:
-
White PCB
-
PCB Width:
-
8mm
-
Min Cutting:
-
3 LEDs/2.5cm
-
Max Length:
-
10 Meters
-
Warranty:
-
2 Years
-
Luminous Efficacy(lm/w):
-
85
-
Lamp Power:
-
9.6W/m
Quick Details
-
Length:
-
5M/Roll, 5 Meters/roll, 10 Meters/roll
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Uwatt
-
Model Number:
-
FL335XXX60xxxx1-IP65
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC12V/24V AC220V
-
Lamp Luminous Flux(lm):
-
809 lm
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-20 - 45
-
Color Temperature(CCT):
-
2700K 3000K 4000K 4500K 5000K 6000K 6500K 7000K
-
LED Light Source:
-
SMD 335
-
IP Rating:
-
IP20 IP54 IP65 IP67
-
LED QTY:
-
60 LEDs/m
-
PCB Color:
-
White PCB
-
PCB Width:
-
8mm
-
Min Cutting:
-
3 LEDs/2.5cm
-
Max Length:
-
10 Meters
-
Warranty:
-
2 Years
-
Luminous Efficacy(lm/w):
-
85
-
Lamp Power:
-
9.6W/m
Product Description

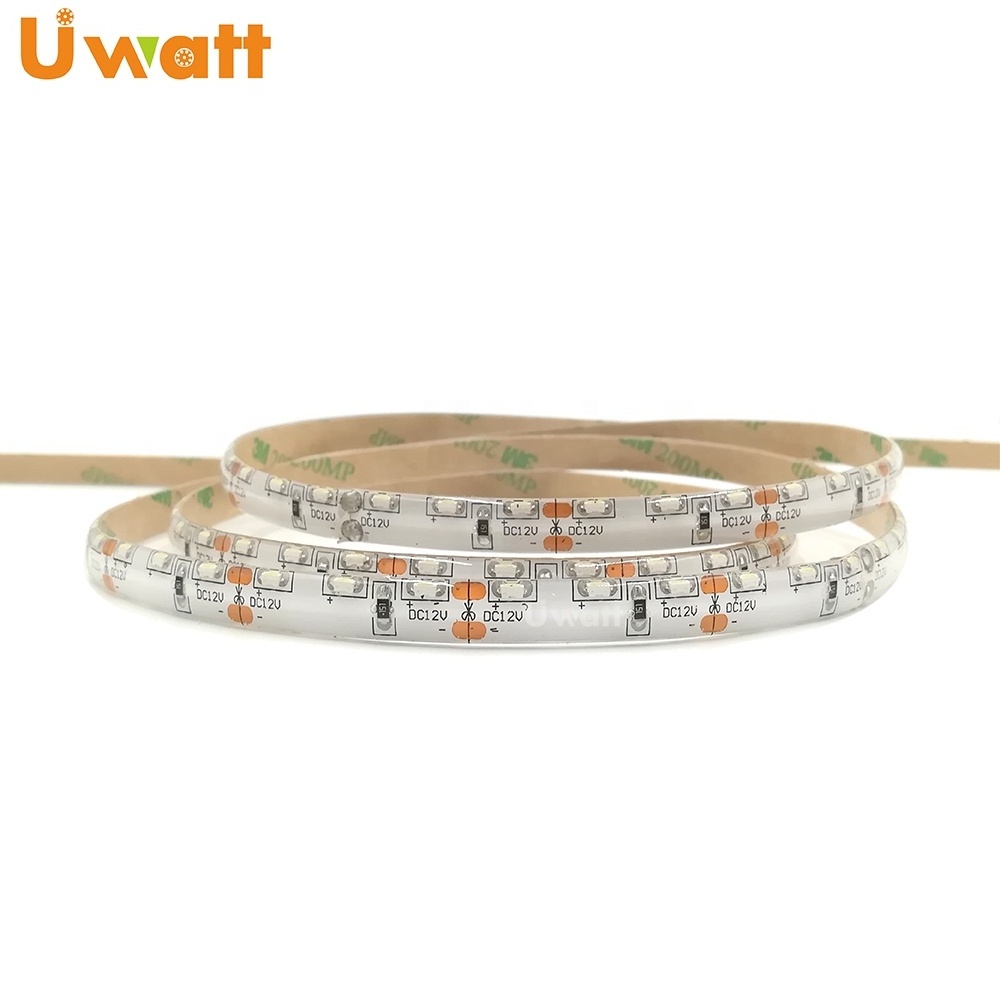

335 SMD Side View LED Strip IP65 Waterproof 12/24V 60leds/m White Red Blue Green Color LED Flexible Edge Emmitting Lighting
|
Part Number
|
FL33512X60xxxx1-IP65
|
|
Colour
|
Natural White, Cool White, Warm White
|
|
Voltage
|
DC 12v 24v AC 220v
|
|
LED Type
|
SMD 335 Led Chip
|
|
Lamp Power
|
9.6W/m
|
|
Lamp Luminous Flux(lm/w)
|
85lm/w
|
|
CRI (Ra>)
|
80
|
|
LED Light Source
|
SMD 335
|
|
LED Qty(LEDs/m)
|
60leds 120leds
|
|
Beam Angle(degree)
|
120
|
|
CCT/nm
|
2700-7000K
|
|
Min. Cutting
|
3LEDs
|
|
Max. Length
|
5M
|
|
PCB Color
|
White
|
|
PCB Width
|
8mm
|
|
Operating Temperature
|
-20-45℃
|
|
Storage Temperature
|
0-60℃
|
|
Environment Humidity
|
40%-70%RH
|
|
IP Rating
|
IP20 IP54 IP65 IP67
|
|
Application
|
Indoor, Outdoor
|
|
Certification
|
CE FCC ROHS
|
|
Packaging Details
|
5m/roll 10m/roll
|
|
Warranty
|
2 years
|
Product Catalog
|
Multi Option And Custom Service For LED Strip Light
|
|
|
|
|
|
|
|
|||||||
|
SMD
|
CRI
|
Voltage
|
LEDs/m
|
Lumen
|
Color
|
FPCB Width
|
FPCB Color
|
|||||||
|
SMD 2210
SMD 2216
SMD 2835
SMD 3014
SMD 3528
SMD 3838
SMD 5050
5050RGBW
5050RGBWW
|
CRI 70
CRI 80
CRI 90
CRI 95
CRI 98
|
5V
9V
12V
18V
24V
36V
48V
110V
220V
Other
|
30leds
60leds
120leds
180leds
240leds
Other
|
10-12LM 15-16LM 20-22LM 22-24LM
Other
|
W
WW
NW CW RGB RGBW RGBWW R/G/B/Y
Other
|
6mm 8mm 10mm 12mm 15mm
Other
|
Black
Other
|
|||||||
If you have any product requirements,
please consult our business manager>>
