Fixed jaw crusher whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble,etc. compression strength does not exceed 320Pa. Gold Ore Jaw Crusher is widely used in mining ,metallurgy ,construction ,highway ,railway ,water conservancy and chemical industries etc for crushing various ores and large material.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HSM
-
Dimension(L*W*H):
-
922*745*933
-
Weight:
-
920 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
portable stone crushing plant price
-
Max feeding size:
-
125mm
-
Discharge size:
-
10-40mm
-
Guarantee:
-
100%quality guaranteed
-
Installation:
-
Under engineer's guide
-
After sale Service:
-
Life-long Service
-
Spare parts supply:
-
Lifelong Time
-
Online Service Time:
-
Consultation
-
Price:
-
Negotiatable
-
The Machines classification:
-
Mining Machinery
Quick Details
-
Application:
-
crushing all kinds of stone
-
Capacity(t/h):
-
1-20t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HSM
-
Dimension(L*W*H):
-
922*745*933
-
Weight:
-
920 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
portable stone crushing plant price
-
Max feeding size:
-
125mm
-
Discharge size:
-
10-40mm
-
Guarantee:
-
100%quality guaranteed
-
Installation:
-
Under engineer's guide
-
After sale Service:
-
Life-long Service
-
Spare parts supply:
-
Lifelong Time
-
Online Service Time:
-
Consultation
-
Price:
-
Negotiatable
-
The Machines classification:
-
Mining Machinery
Products Description
Diesel Engine Fixed Jaw Crusher For Sale Plant Run By Application
Details Images
Advantages
1.fixed jaw crusher Jaw Plate and side plate
Jaw crusher gold crusher have 1pc mobile jaw plate, 1pc fixed jaw plate, 2pcs side plate, when crushing material, this 4 parts directly touch and crush the raw material.
Our jaw plate and side plate is made of High Manganese steel Mn13Cr2, it is a high wear-resistance material, which can prolong the service life of the machine. In case of hard pebble stone, it can crusher 20000 tons stone.
1.fixed jaw crusher Jaw Plate and side plate
Jaw crusher gold crusher have 1pc mobile jaw plate, 1pc fixed jaw plate, 2pcs side plate, when crushing material, this 4 parts directly touch and crush the raw material.
Our jaw plate and side plate is made of High Manganese steel Mn13Cr2, it is a high wear-resistance material, which can prolong the service life of the machine. In case of hard pebble stone, it can crusher 20000 tons stone.
2. fixed jaw crusher Eccentric Shaft
The eccentric shaft after tempering process is very endurable. The upgrade large diameter shaft will suit heavy duty crushing work.
3.Casting Frame
Small and middle model jaw crusher adopt Heay-duty and thick durable design casting frame.
4. fixed jaw crusher Welding Frame
Middle and big model jaw crusher adopt GB steel plate weld. Portable Mining Small Gold Ore Jaw Crusher Machine
5. Main Shaft and Bearing
Main shaft through dynamic balance testing, our jaw crusher bearing is Swedish SKF bearing.
6. Spring
High Strength spring adjusted well discharging sizes.

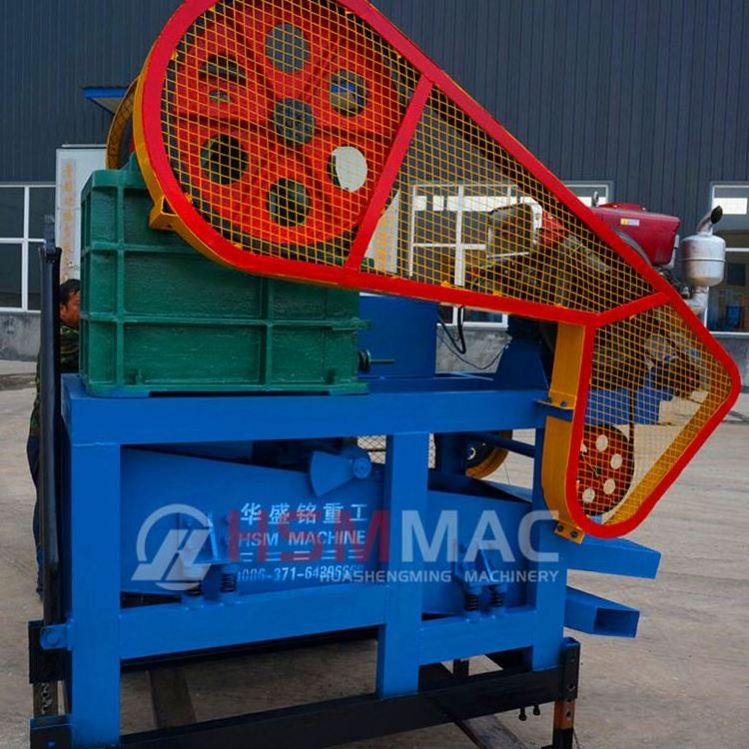

7.Diesel Engine Fixed Jaw Crusher For Sale Plant Run By
Our machine delivery with chassis, can install the motor or diesel engine.
The eccentric shaft after tempering process is very endurable. The upgrade large diameter shaft will suit heavy duty crushing work.
3.Casting Frame
Small and middle model jaw crusher adopt Heay-duty and thick durable design casting frame.
4. fixed jaw crusher Welding Frame
Middle and big model jaw crusher adopt GB steel plate weld. Portable Mining Small Gold Ore Jaw Crusher Machine
5. Main Shaft and Bearing
Main shaft through dynamic balance testing, our jaw crusher bearing is Swedish SKF bearing.
6. Spring
High Strength spring adjusted well discharging sizes.
7.Diesel Engine Fixed Jaw Crusher For Sale Plant Run By
Our machine delivery with chassis, can install the motor or diesel engine.
8. Crushing Screener
fixed jaw crusher can install tires easily mobile and installing vibrating screen get different ideal sizes.
Product advantages
Main Features
1) High reduction ratio and even final particles.
2) Simple structure and easy to be maintained.
3) Easy replacement of wearing and spare parts.
4) Reliable operation and long service life.fixed jaw crusher
5) Convenient maintenance with low cost. gold crusher
6) Wide ranges of products series stone jaw crusher price.
2) Simple structure and easy to be maintained.
3) Easy replacement of wearing and spare parts.
4) Reliable operation and long service life.fixed jaw crusher
5) Convenient maintenance with low cost. gold crusher
6) Wide ranges of products series stone jaw crusher price.
Working principle
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft.
The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and
the stuff will be crushed in multiple ways.fixed jaw crusher The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher.
Product Paramenters
|
Model
|
Opening size (mm)
|
Max feeding size (mm)
|
Discharging size (mm)
|
Capacity
(t/h) |
Powder
(kw) |
Weight
(t) |
Dimension
(mm) |
|
PE-150
|
150*250
|
125
|
10--40
|
1--3
|
5.5--7.5
|
0.7
|
922*745*933
|
|
PE-200
|
200*300
|
165
|
20--70
|
2--8
|
11
|
0.8
|
1056*1100*1120
|
|
PE-250
|
250*400
|
210
|
20--80
|
5--20
|
15--18.5
|
3
|
1108*1142*1392
|
|
PE-400
|
400*600
|
340
|
40--90
|
10--40
|
30
|
7.2
|
1700*1732*1392
|
|
PE-350
|
350*750
|
290
|
30--55
|
20--50
|
37
|
8.9
|
1900*1806*1808
|
|
PE-500
|
500*750
|
425
|
50--100
|
34--68
|
55
|
11.32
|
2050*1860*2145
|
|
PE-600
|
600*900
|
480
|
75--200
|
40--120
|
75
|
17.6
|
2792*2168*2250
|
|
PE-750
|
750*1060
|
630
|
80--200
|
80--160
|
90
|
30.53
|
3480*2876*3330
|
|
PE-900
|
900*1200
|
750
|
100--200
|
110--200
|
110
|
50
|
4180*2560*3070
|
|
PE-1000
|
1000*1200
|
850
|
195--265
|
315--500
|
110
|
55
|
4200*3300*3500
|
|
PE-1200
|
1200*1500
|
1020
|
150--300
|
400--800
|
160
|
100
|
5200*2900*3500
|
|
PEX-150
|
150*750
|
125
|
10--40
|
5--15
|
15
|
3.5
|
1200*1480*1180
|
|
PEX-250
|
250*1000
|
210
|
15--65
|
10--32
|
30
|
4.35
|
1580*1992*1380
|
|
PEX-250
|
250*1200
|
210
|
15--60
|
12--38
|
37
|
8.7
|
1730*2192*1380
|
|
PEX-300
|
300*1300
|
250
|
20--90
|
16--65
|
45--55
|
11.6
|
1930*2400*1747
|
