Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WT
-
Model Number:
-
WT-22
-
Wire Gauge:
-
Customized
-
Product name:
-
Bastion Barrier Wall
-
Color:
-
Silver
-
Size:
-
Customer Size
-
Surface treatment:
-
Galvanized+Powder Coated
-
Keywords:
-
Bastion Barrier Wall
-
Advantage:
-
Longer Life
-
Function:
-
Protective Fence Panel
-
Packing:
-
Plastic Film + Metal Pallet
Quick Details
-
Material:
-
Low-Carbon Iron Wire
-
Type:
-
Welded Mesh
-
Application:
-
Gabions
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WT
-
Model Number:
-
WT-22
-
Wire Gauge:
-
Customized
-
Product name:
-
Bastion Barrier Wall
-
Color:
-
Silver
-
Size:
-
Customer Size
-
Surface treatment:
-
Galvanized+Powder Coated
-
Keywords:
-
Bastion Barrier Wall
-
Advantage:
-
Longer Life
-
Function:
-
Protective Fence Panel
-
Packing:
-
Plastic Film + Metal Pallet

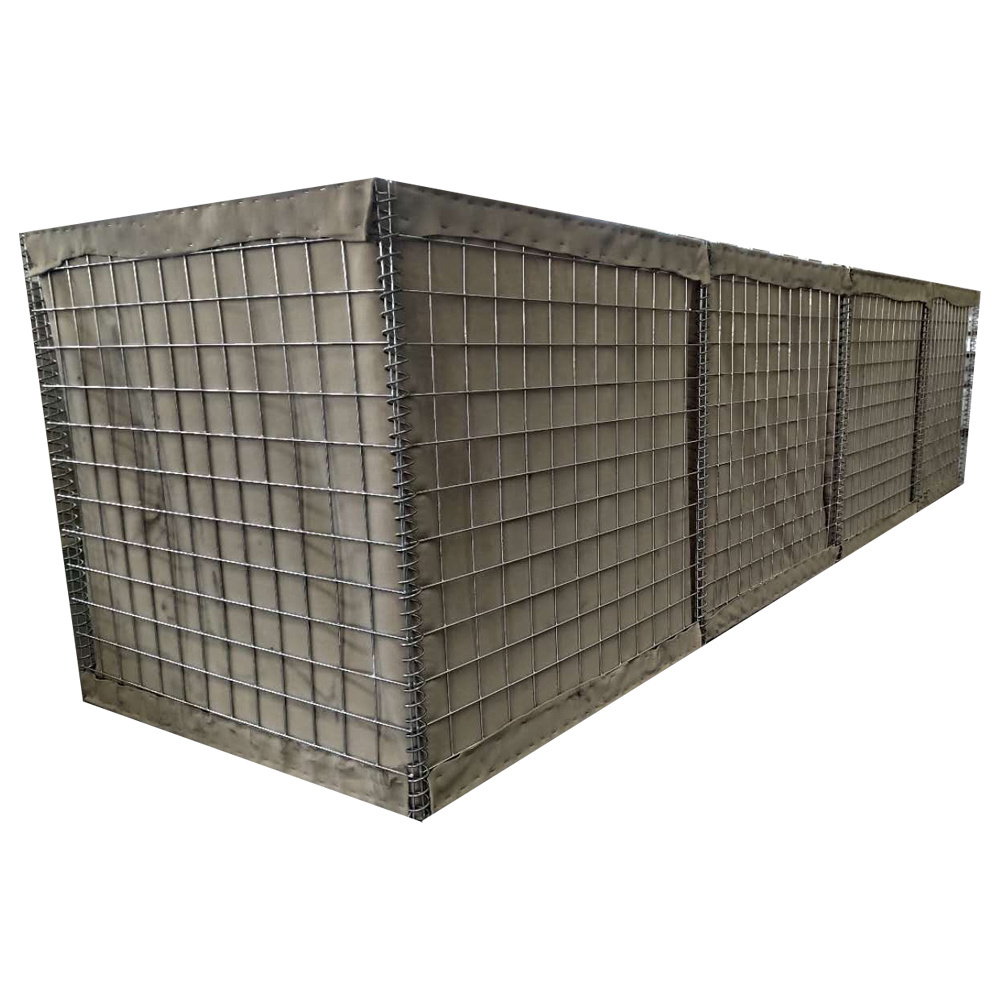

High Quality Galvanized Welded Gabion Iron Wire Mesh Defensive Barrier Bastion Explosionproof Wall
Product Description
Defensive barrier wall is a prefabricated,multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,like a defence wall or bunker,it is widely used for fortification and flood control.
Specification
|
Item No.
|
Height
|
Width
|
Length
|
Cells
|
|
WT-2201
|
4'6" (1.37m)
|
3'6" (1.06m)
|
32'9" (10m)
|
5+4 cells
|
|
WT-2202
|
2' (0.61m)
|
2' (0.61m)
|
4' (1.22m)
|
2 cells
|
|
WT-2203
|
3'3" (1.00m)
|
3'3" (1.00m)
|
32'9" (10m)
|
5+5 cells
|
|
WT-2204
|
3'3" (1.00m)
|
5' (1.52m)
|
32'9" (10m)
|
5+5 cells
|
|
WT-2205
|
2' (0.61m)
|
2' (0.61m)
|
10' (3.05m)
|
5 cells
|
|
WT-2206
|
5'6" (1.68m)
|
2' (0.61m)
|
10' (3.05m)
|
5 cells
|
|
WT-2207
|
7'3" (2.21m)
|
7' (2.13m)
|
91' (27.74m)
|
5+4+4 cells
|
|
WT-2208
|
4'6" (1.37m)
|
4' (1.22m)
|
32'9" (10m)
|
5+4 cells
|
|
WT-2209
|
3'3" (1.00m)
|
2'6" (0.76m)
|
30' (9.14m)
|
6+6 cells
|
|
WT-2210
|
7'3" (2.21m)
|
5' (1.52m)
|
100' (30.5m)
|
5+5+5+5 cells
|
|
WT-2211
|
4' (1.22m)
|
12" (0.30m)
|
4' (1.22m)
|
2 cells
|
|
WT-2212
|
7' (2.13m)
|
3'6" (1.06m)
|
108' (33m)
|
5+5+5+5+5+5 cells
|
|
WT-2213
|
9' (2.74m)
|
3'6" (1.06m)
|
10'5" (3.18m)
|
6 cells
|
Details Images
Packing & Delivery
Our company uses plastic film and metal pallet packaging methods, and can also customize packaging methods according to your requirements.
