Quick Details
-
Dimension(L*W*H):
-
1200*1200*2150mm
-
Weight:
-
350 kg
-
Name:
-
pulse jet self cleaning soldering dust extractor weld fume extractor
-
Application:
-
polishing, cutting
-
Electric Power2:
-
380V/50Hz/3 phases
-
Extraction arm:
-
Double or single
-
Wheels:
-
4
-
Air volume:
-
10000m³/h
-
Efficiency:
-
99.9%
-
After Warranty Service:
-
Online support
Quick Details
-
Minimum Particle Size:
-
0.3um
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Allway
-
Dimension(L*W*H):
-
1200*1200*2150mm
-
Weight:
-
350 kg
-
Name:
-
pulse jet self cleaning soldering dust extractor weld fume extractor
-
Application:
-
polishing, cutting
-
Electric Power2:
-
380V/50Hz/3 phases
-
Extraction arm:
-
Double or single
-
Wheels:
-
4
-
Air volume:
-
10000m³/h
-
Efficiency:
-
99.9%
-
After Warranty Service:
-
Online support

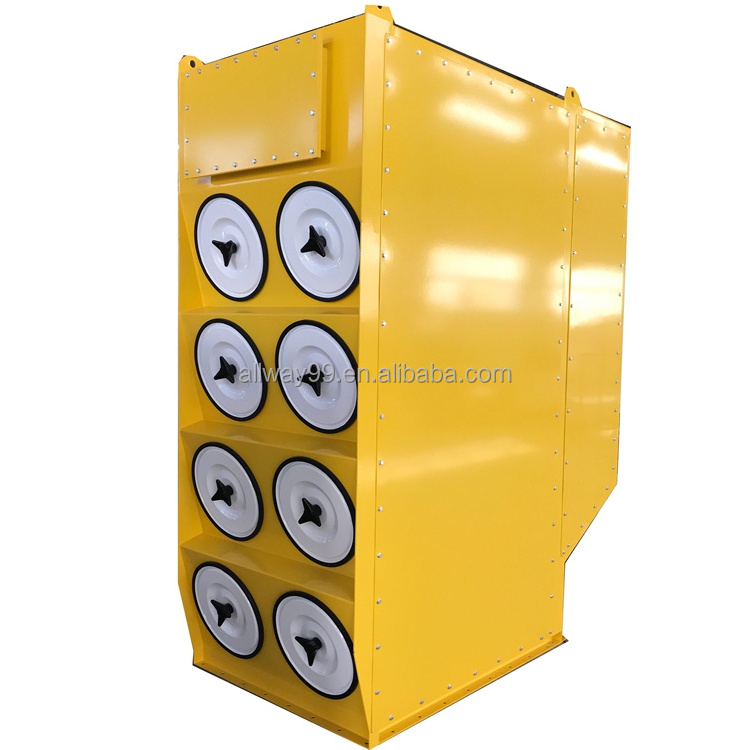

Metal polishing dust collector
Metal polishing dust collector industrial/ filter cartridge pulse dust collector is a suitable for all walks of life production and business activities, in line with the need of environmental protection dust removal equipment; It is widely used in grinding (polishing), petroleum, chemical industry, mechanical processing, pharmaceutical, casting, science and technology electronics, etc., suitable for absorbing a large amount of industrial dust, liquid, strong suction, it is the industrial equipment for cleaning large machining workshop, plant floor cleaning.
Pulse automatic cleaning function
Application
The use of the cartridge precipitator is very wide, including:
1. Polishing metal workpiece
2. Crushing operation
3. Mix the powder
4. Mix ingredients
5. Powder packaging
And so on
Allway Portable/Mobile Welding Fume Extractor
Product Parameters(AW-W002/03/04)
|
No.
|
Model
|
AW-D4
|
AW-D7.5
|
AW-D15
|
AW-D22
|
|||
|
1
|
Dimensions
|
800*800*1700mm
|
1200*1200*2150mm
|
2100*1600*2400mm
|
2500*1300*2500mm
|
|||
|
2
|
power
|
4kw
|
7.5kw
|
15kw
|
22kw
|
|||
|
3
|
air volume
|
4500m³/H
|
10000m³/H
|
15000m³/H
|
20000m³/H
|
|||
|
4
|
filter cartridge
|
φ325*500mm
|
φ325*660mm
|
|
|
|||
|
5
|
filter quantity
|
4pcs
|
9pcs
|
20pcs
|
24pcs
|
|||
|
6
|
Cleaning
|
Pulse shaking self-cleaning
|
|
|
|
|||
|
7
|
Wheels
|
4 universal wheels
|
no wheels
|
|
|
|||
|
8
|
voltage
|
380V/3Phases/50Hz or customized
|
|
|
|
|||
Don't worry about noise,there is a silencer on the top of the machine.
