Quick Details
-
Operating Temperature:
-
-10~+50℃
-
Class Protection:
-
IP65-EN 60529
-
Switch Holding Voltage:
-
400V Max
-
Switch Capacity:
-
1A
-
Duty Cycle:
-
100%ED
-
Time ON:
-
From 0.5 to 10s
-
Time OFF:
-
From 0.5 to 45min
-
Indicators:
-
Yellow LED
-
Manual Override:
-
Test
-
Connction:
-
DIN43650A
Quick Details
-
Theory:
-
Electronic
-
Usage:
-
Industrial
-
Place of Origin:
-
China
-
Operating Temperature:
-
-10~+50℃
-
Class Protection:
-
IP65-EN 60529
-
Switch Holding Voltage:
-
400V Max
-
Switch Capacity:
-
1A
-
Duty Cycle:
-
100%ED
-
Time ON:
-
From 0.5 to 10s
-
Time OFF:
-
From 0.5 to 45min
-
Indicators:
-
Yellow LED
-
Manual Override:
-
Test
-
Connction:
-
DIN43650A

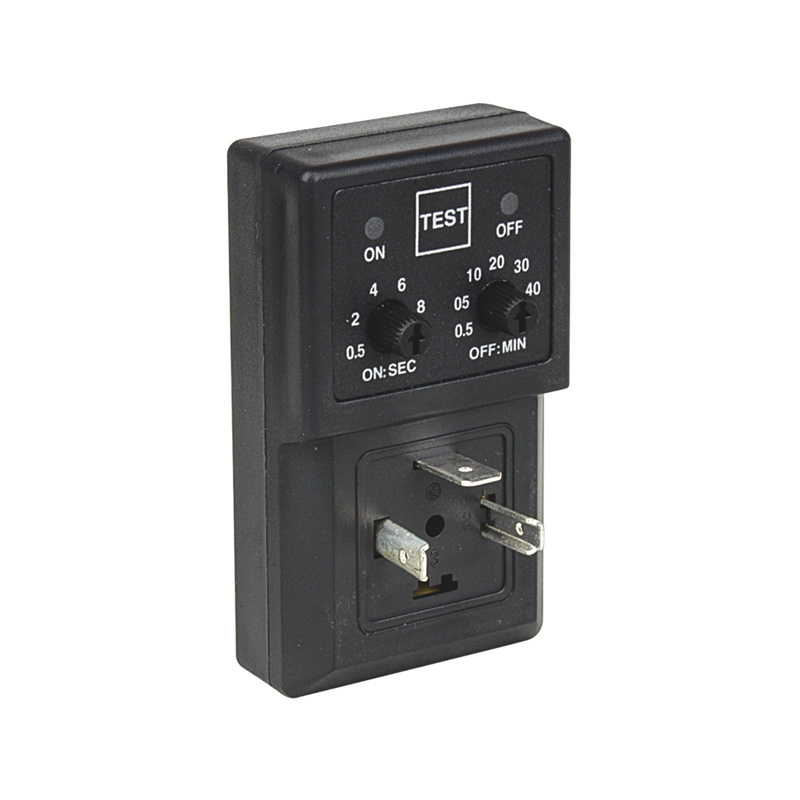

KLT-S Plastic Solenoid Valve 24V Digital Timer Switch
|
Model
|
KLT-S
|
|
Supply Voltage
|
24..240V AC/DC-50Hz/60Hz for "CE" Marked Timer
|
|
Absorption Current
|
4mA Max
|
|
Operating Temperature
|
-10°C~+50°C
|
|
Class Protection
|
IP65-EN 60529
|
|
Switch Holding Voltage
|
400V Max
|
|
Switch Capacity
|
1A
|
|
Inrush Current
|
10A for 10 ms
|
|
Duty Cycle
|
100% ED
|
|
Switch Life
|
3X108
|
|
Time ON
|
from 0.5 to 10s
|
|
Time OFF
|
from 0.5 to 45min
|
|
Indicators
|
Yellow LED
|
|
Manual Override
|
Test
|
|
Connection
|
DIN43650A
|
High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customised products to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves, Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
