Quick Details
-
Model Number:
-
FY-2NG2R-4C
-
Product Name:
-
2NO2NC DPDT Omron Relay
-
Rated voltage:
-
12VAC/DC, 24VAC/DC, 230VAC
-
Relay NO:
-
1, 2,4, 8, 10, 12, 14, 16Channel
-
Relay Mounting:
-
Din Rail
-
Output contact:
-
2NO2NC
-
Rated Load Current:
-
5A 250VAC/30VDC
-
Certifications:
-
CE
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
FY-2NG2R-4C
-
Product Name:
-
2NO2NC DPDT Omron Relay
-
Rated voltage:
-
12VAC/DC, 24VAC/DC, 230VAC
-
Relay NO:
-
1, 2,4, 8, 10, 12, 14, 16Channel
-
Relay Mounting:
-
Din Rail
-
Output contact:
-
2NO2NC
-
Rated Load Current:
-
5A 250VAC/30VDC
-
Certifications:
-
CE
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
···········This link price is only for
FY-2NG2R-4C
···········
Products Description
Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to PLC, microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key control systems not being destroyed.
1. DIN Rail interface relay modules 1/2/4/6/8/10/12/14/16 channels optional;
2. Buit-in OMRON relay G2R-1 certified with VDE,UL,CSA,SEV,SEMKO;
3. Switching current upto 10A at 250VAC or 30VDC;
4. Input connections by screw terminal block.NPN&PNP can be interchangeable,
AC&DC can be in compatible;
5. Relay status indicator LED,surge suppression protection and overvoltage protection are
provided for each relay channel;
6. Relay socket pins are gold plated,makes contact more reliable and stable;
7. DIN Rail mountable for width TS15/28/35
|

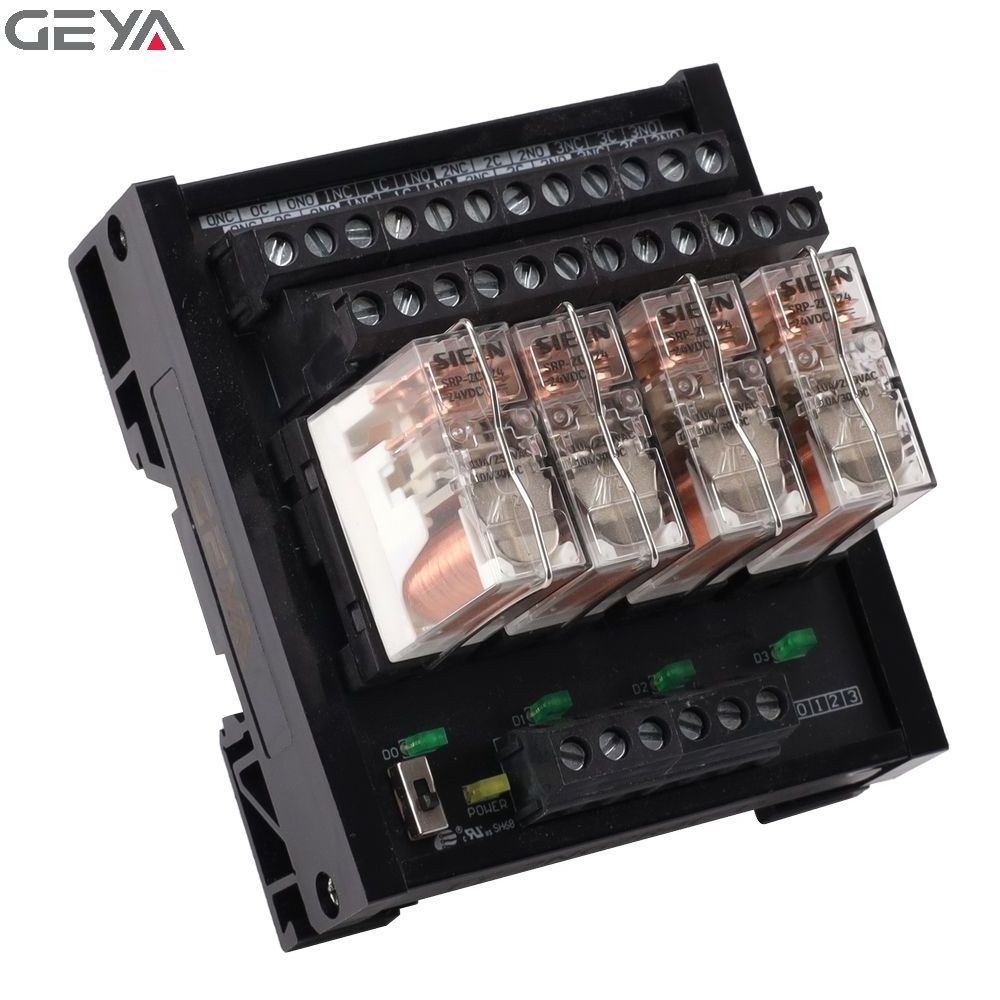

FY-2NG2R
|
4 Channel Relay Module
|
|
|
|
||
|
Dimension
|
70*85*70mm
|
|
|
N.W.
|
200g
|
|
Technical Data
|
Input Operation Voltage
|
Rated DC ±20%&AC±10%
|
|
Relay Mounting
|
Pluggable
|
|
Rated Load Current
|
10A 250VAC/30VDC
|
|
Max Inrush Current
|
10A
|
|
Coil Power
|
Approx 0.53W
|
|
Operate Time(at normal volt.)
|
less15ms
|
|
Release Time(at normal volt.)
|
less10ms
|
|
Input/Output Connections
|
Screw terminal block
|
|
Wire Range
|
0.2~2.5mm2
|
|
Stripping Length
|
6-7mm
|
|
DIN Rail Mountable
|
15/28/35mm
|
|
Power Per Channel
|
|
