Quick Details
Quick Details
-
Brand Name:
-
JIAHUI
-
Type:
-
tools
-
Model Number:
-
2B01
Product Description

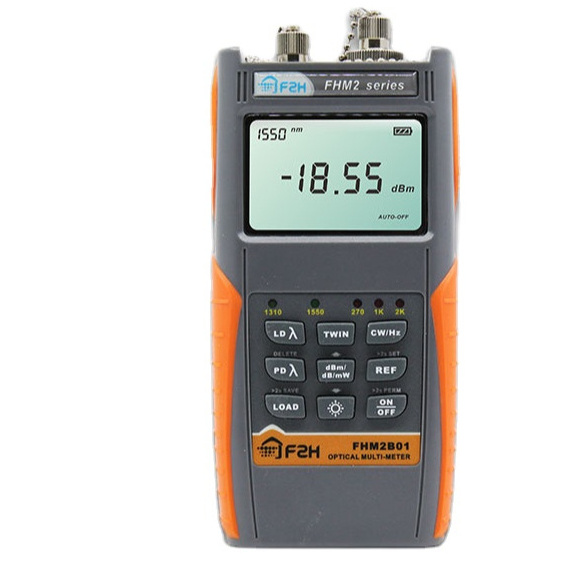

The FHM2A/B01 optical multimeter integrates a stable light source and an accurate optical power meter.
The light source only uses one output port to provide 1310nm and 1550nm wavelength output. The optical power meter can automatically identify the test wavelength when used with the light source.
The light source only uses one output port to provide 1310nm and 1550nm wavelength output. The optical power meter can automatically identify the test wavelength when used with the light source.
Specification
|
Light source
|
|
|
Output wavelength
|
1310/1550nm
|
|
Output power
|
-5dBm±2db
|
|
Frequency output
|
270Hz/1kHz/2kHz
|
|
wavelength identification code
|
wavelength identification code
|
|
Optical power
|
|
|
Power range
|
-50~+26dBm
|
|
Display accuracy
|
0.01db(The last 10db of the range is 0.1db)
|
|
Calibration wavelength
|
850/1300/1310/1490/1S50/1625nm
|
|
uncertainty
|
±0.5dB±1nw
|
|
Frequency identification
|
270Hz/1kHz/2kHz
|
|
wavelength identification
|
Yes (power value>-20dBm)
|
|
data storage
|
999 pcs
|
|
Others
|
|
|
USB connection provided
|
Yes
|
|
Working temperature
|
-10℃~+50℃
|
|
Storage temperature
|
-20,℃~+70℃
|
|
Power supply battery
|
2*AA Ni-MH 1,2V 2500mAh with charging cage
|
