Quick Details
-
Brand Name:
-
LTMG
-
Fork Length:
-
2440mm
-
Fork Width:
-
320mm
-
Overall Dimensions:
-
9460*3200*4000mm
-
Weight (KG):
-
18500 kg
-
Type:
-
Diesel Forklift 30 tons
-
Product Name:
-

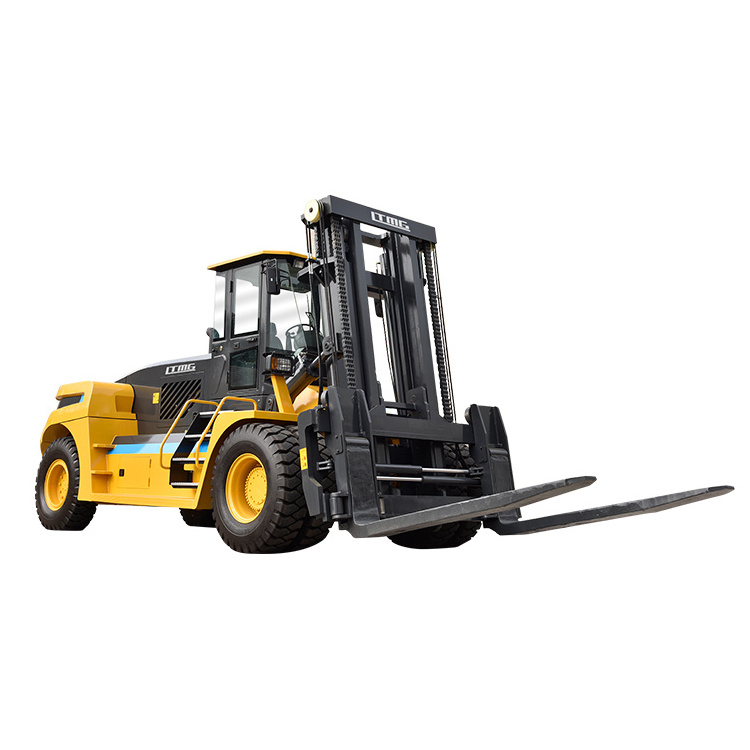

Heavy Duty 30 ton 32 ton 40 ton Diesel Forklift Truck
-
Rated Capacity:
-
30 ton
-
Load Centre:
-
1250mm
-
Engine:
-
Weichai/Cummins
-
Ground Clearance:
-
350mm
-
Max.lifting speed:
-
260 mm/s
-
Turning Radius:
-
6800mm
-
Wheelbase:
-
4800mm
-
Service weight:
-
39500kg
Quick Details
-
Min. Lifting Height:
-
350mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Fork Length:
-
2440mm
-
Fork Width:
-
320mm
-
Overall Dimensions:
-
9460*3200*4000mm
-
Weight (KG):
-
18500 kg
-
Type:
-
Diesel Forklift 30 tons
-
Product Name:
-
Heavy Duty 30 ton 32 ton 40 ton Diesel Forklift Truck
-
Rated Capacity:
-
30 ton
-
Load Centre:
-
1250mm
-
Engine:
-
Weichai/Cummins
-
Ground Clearance:
-
350mm
-
Max.lifting speed:
-
260 mm/s
-
Turning Radius:
-
6800mm
-
Wheelbase:
-
4800mm
-
Service weight:
-
39500kg
Advantages
|
Technical Parameter
|
|
|
|
|
||||
|
Item
|
|
|
FD300
|
FD320
|
||||
|
|
|
|
|
|
||||
|
Features
|
Rated Load
|
Q(Kg)
|
30000
|
32000
|
||||
|
|
Load Center
|
c(mm)
|
1220
|
1220
|
||||
|
|
Wheelbase
|
y(mm)
|
4400
|
4800
|
||||
|
Weight
|
Weight
|
kg
|
38000
|
42000
|
||||
|
Chassis
|
Tire Specs:Front
|
|
14.00-24
|
16.00-25
|
||||
|
|
Tire Specs:Rear
|
|
14.00-24
|
16.00-25
|
||||
|
|
Tires Qty,front/rear(X-dreve wheels)
|
|
4/2
|
4/2
|
||||
|
|
Wheel tread:Front
|
b3(mm)
|
2220
|
2430
|
||||
|
|
Wheel tread:Rear
|
b4(mm)
|
2300
|
2230
|
||||
|
Performance
|
Max.lifting speed(with load/without load)
|
mm/s
|
260/280
|
260/280
|
||||
|
|
tractionn
|
KN
|
180
|
200
|
||||
|
|
gradeability(with load/without load)
|
%
|
20/22
|
20/20
|
||||
|
|
Driving brake
|
|
Hydraulic clamp disvc
|
Hydraulic clamp disvc
|
||||
|
Engine
|
Engine brand/model
|
Optional one
|
WeiChai Engine
|
WeiChai Engine
|
||||
|
|
|
|
WD10G240E
|
WD10G240E
|
||||
|
|
|
Optional two
|
Dongfeng cummins
|
Dongfeng cummins
|
||||
|
|
|
Rated Output
|
178(Kw)
|
178(Kw)
|
||||
|
|
|
Cylinder No
|
6
|
6
|
||||
|
Others
|
Transmission gears(Front/rear)
|
|
2/1
|
2/1
|
||||
OEM/ODM
Optional Attachment
Optional Configuration
Spare Parts
