Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACC Machinery
-
Voltage:
-
380V 50HZ380v 50hz 3phase (customized)
-
Dimension(L*W*H):
-
6m*1.6m*2.0m
-
Power (kW):
-
30
-
Weight:
-
3T
-
Name:
-
PEcorrugrated pipe machine
-
Product:
-
PE Corrugrated Pipe
-
Processing Type:
-
Extrusion
-
Raw material:
-
PE Granules
-
Usage:
-
Sheathed Cables
-
Color:
-
Selectable
-
Motor:
-
Siemens Beide
-
Inverter:
-
ABB
-
Capacity:
-
25kgh
-
Certification:
-
CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
50 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACC Machinery
-
Voltage:
-
380V 50HZ380v 50hz 3phase (customized)
-
Dimension(L*W*H):
-
6m*1.6m*2.0m
-
Power (kW):
-
30
-
Weight:
-
3T
-
Name:
-
PEcorrugrated pipe machine
-
Product:
-
PE Corrugrated Pipe
-
Processing Type:
-
Extrusion
-
Raw material:
-
PE Granules
-
Usage:
-
Sheathed Cables
-
Color:
-
Selectable
-
Motor:
-
Siemens Beide
-
Inverter:
-
ABB
-
Capacity:
-
25kgh
-
Certification:
-
CE

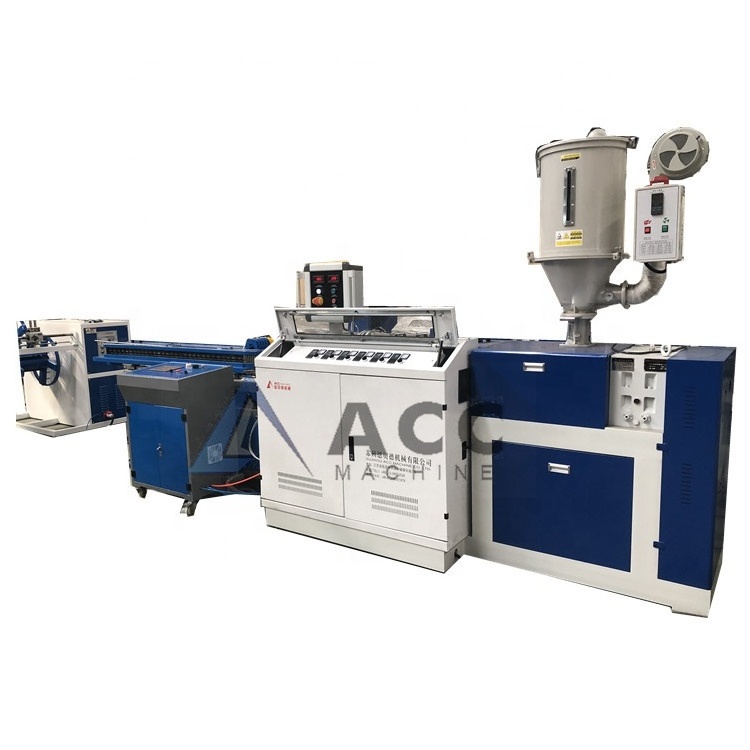

PE Flexible Hose Production Line
Product Description
The machine is used to produce single wall corrugated pipe by PE PVC PP or PA Nylon Materials. This kind of corrugated pipe is always 10-50mm diameters, popular used in machine tool, machine building, eledtric insulation protection system, electric automatic control system, public traffic equipment, metor, electric locomotive and air-conditioner equipment, etc.
Parameters
The high speed corrugated pipe machinery features:
1. High speed high efficiency extruder, 20% less power than normal type but 20kg/h higher output. Our 45/33 high speed high efficiency extruder could meet 70-80kg/h, it is enough to support 20m/min for 10-50mm diameter corrugated pipe.
2. Good design and good quality forming machine. Gear driven and 100% covered water cooling system for forming machine to support high speed running.
3. Automatic winder, it could meets 20m/min speed coiling.
1. High speed high efficiency extruder, 20% less power than normal type but 20kg/h higher output. Our 45/33 high speed high efficiency extruder could meet 70-80kg/h, it is enough to support 20m/min for 10-50mm diameter corrugated pipe.
2. Good design and good quality forming machine. Gear driven and 100% covered water cooling system for forming machine to support high speed running.
3. Automatic winder, it could meets 20m/min speed coiling.
| Extruder | SJ 30/30 | SJ 45/33 | SJ 65/30 | SJ 65/33 |
| Main motor power | 5.5kw | 11-18.5kw | 30-45kw | 55kw |
| Molding | 54pairs | 44-72pairs | 60-72pairs | 60pairs |
| Pipe diameter | 4-17mm | 10-50mm | 30-75mm | 40-100mm |
| Speed | 5-15m/min | 15-20m/min | 10-20m/min | 6-15m/min |
| Output | 10-30kg/h | 60-100kg/h | 100-150kg/h | 100-180kg/h |
