Automatic Air Bubble Wrap Cutting Machine Pvc Roll Cutter Paper Roll To Sheet Cutting Machine

Automatic Air Bubble Wrap Cutting Machine Pvc Roll Cutter Paper Roll To Sheet Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1990

≥3 Sets

US $1960

≥10 Sets

US $1895

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Industries:: paper processing machinery

Place of Origin:: Henan, China

Brand Name:: YIZE

Voltage:: 110V 220V 380V

Dimension(L*W*H):: 540*450*430mm

Weight:: 27 kg

Marketing Type:: New Product

Name:: Automatic aluminium foil paper roll to pvc sheet cutter

Suitable for:: Pet film,leather,nonwoven fabric,eva foamed,pearl wool

Display:: English interface LCD display

Function:: Pvc film paper fabric wrapper roll to sheet cutting

Feeding speed:: 700mm/s

Key words:: aluminium foil paper fabric film cutting machine

Other name:: pvc sheet cutting machine

Blade material:: High speed wear resistant steel

Related products:: Computer Metal tube cutting machine for iron steel wire

Product name:: Automatic computer cutting machine

Quick Details

Type:: cutting machine

Production Capacity:: 200 m/min

Max. workable width:: 1600mm

Applicable Industries:: paper processing machinery

Place of Origin:: Henan, China

Brand Name:: YIZE

Voltage:: 110V 220V 380V

Dimension(L*W*H):: 540*450*430mm

Weight:: 27 kg

Marketing Type:: New Product

Name:: Automatic aluminium foil paper roll to pvc sheet cutter

Suitable for:: Pet film,leather,nonwoven fabric,eva foamed,pearl wool

Display:: English interface LCD display

Function:: Pvc film paper fabric wrapper roll to sheet cutting

Feeding speed:: 700mm/s

Key words:: aluminium foil paper fabric film cutting machine

Other name:: pvc sheet cutting machine

Blade material:: High speed wear resistant steel

Related products:: Computer Metal tube cutting machine for iron steel wire

Product name:: Automatic computer cutting machine

Product Description

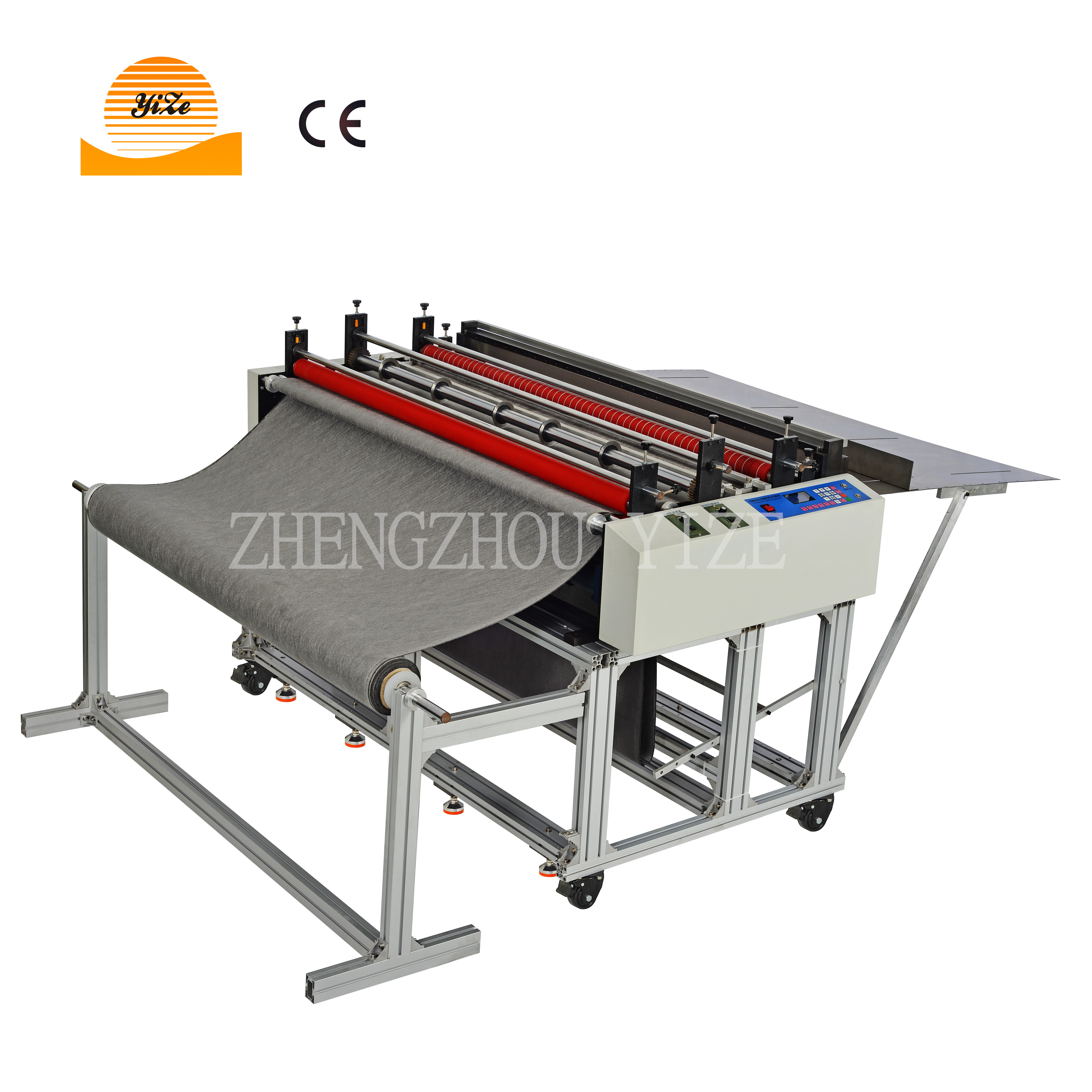

Automatic earmuff aluminium foil roll to pvc sheet cutter machine Cnc plastic pet film kraft insulating paper cutting machine:

The machine suitable for cutting all kinds of non-woven fabrics, PET protective film, PVC film, PE film, plastic
film,heat shrinkable film, hot melt film, Mylar film, EVA foam, all kinds of insulation paper, release paper, quit Tape, all kinds of copper foil, aluminum foil, copper tape, aluminum tape, nickel tape, tin foil and other metal sheet.

Cutting length：0.1-9999mm adjustable

Cutting precision：0.1mm

Cutting speed：Max.80m/min(depends on the cuting length)

Voltage：220V
50HZ single phase

Feature:

1. Simple operation panel
Simple panel, simple operation, Chinese and English switching, LCD screen
2. High-strength high-performance steel knife
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven
surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate
3. Multi-function button
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting
4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor.

Detailed Images

Chinese and English operating system: LCD multi-function large screen display, one-key switch between Chinese and English. Simple panel and easy operation

Vacuum heat-treated steel knife: High-quality SKD11 high-speed steel knife with special mechanical structure, sharp edge, durable

Feeding rubber wheel: It is made of special superior rubber, wear-resistant, pressure-resistant and high-temperature resistant. It
is equipped with pressure-regulating screws at both ends to prevent material slippage.

Tension straightening device: Make sure that the materials are on the same line, avoiding the material deviation and causing the
section to be irregular. It can cut multiple materials at the same time and improve production efficienc y. apes.

High-precision motor: Computer program control accuracy up to 0.1mm, fast feeding, strong power, high safety, longer service life

Vertical bearing frame: Floor-standing design, solid and sturdy, with bearing cone, labor-saving and durable, can be placed in
various rolls

High-power cooling fan: Multiple sets of super-powered fans for heat dissipation and exhaust, reducing machine heat and ensuring long-term operation of the machine

Multiple safety protection: Grounding three plugs and built-in fuses, will not leak the main board, ensuring the safety of
operators and machines

Cutting machine other models show

if you want to know more please contact us.

Model	YZCQ-100G/120G/160G/200G/250G/300G/400G/500G/ 600G/800G/1000G/1200G/1300G/1500G/1600G/1700G/2000G/customized model.....
Max. Cutting width	100/120/160/200/250/300/400/500/600/800/1000/1200/1300/1500/1600/1700/200mm/customized model.....
Cutting length	0.1-9999mm adjustable
Cutting precision	0.1mm
Cutting speed	Max.80m/min(depends on the cuting length)
Voltage	220V 50HZ single phase
cutting blade material	High precision stepper motor
cutting motor	High power Reducer variable spee
Voltage	220V/110V,50/60hz, Ac-------380v/,50/60hz,3phase
Language	Chinese and English (Spanish is Optional)
Package	Wooden case/Carton Send messages to us for actual packing size
Optional functions	Electronic eye device, Blades slitting group, Round knife slitting group, Spring Static Eliminator, Conveyor stacking part

Model	YZCQ-300T/400T/500T/ 600T/800T/1000T/1200T/1300T/1500T/1600T/1700T/2000T/customized model.....
Max cutting width	300/400/500/600/800/1000/1200/1300/1500/1600/1700/200mm/customized model.....
Cutting length	0.1-9999mm adjustable
Cutting precision	0.1mm
Cutting speed	30-120 pcs/min
Cutting blade material	SKD11 high speed steel wear resistant steel
Display mode	English and Chinese interface blue screen 186 * 60 LCD display
Feeding motor	High precision stepper motor
Cutting motor	High power Reducer variable spee
Voltage	220V/110V,50/60hz, Ac-------380v/,50/60hz,3phase
Language	Chinese and English (Spanish is Optional)
Package	Standard export Wooden case
Optional functions	Electronic eye device, Blades slitting group, Round knife slitting group, Spring Static Eliminator, Conveyor stacking part

Our machine can be suitable for many material as below:

Eva fpamed；Pet film；Pvc Cell membrane；tapetum lucidum，leather，non-woven fabrics，highland barley paper ; knitter fabric ; pearl wool .
