Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
Sinotruk Howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
6980*2496*3150mm
-
Cargo Tank Dimension:
-
standard
-
Tire::
-
12.00R20 tubeless radial tyre
-
Engine::
-
WD615 STYER
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
Sinotruk Howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
6980*2496*3150mm
-
Cargo Tank Dimension:
-
standard
-
Tire::
-
12.00R20 tubeless radial tyre
-
Engine::
-
WD615 STYER

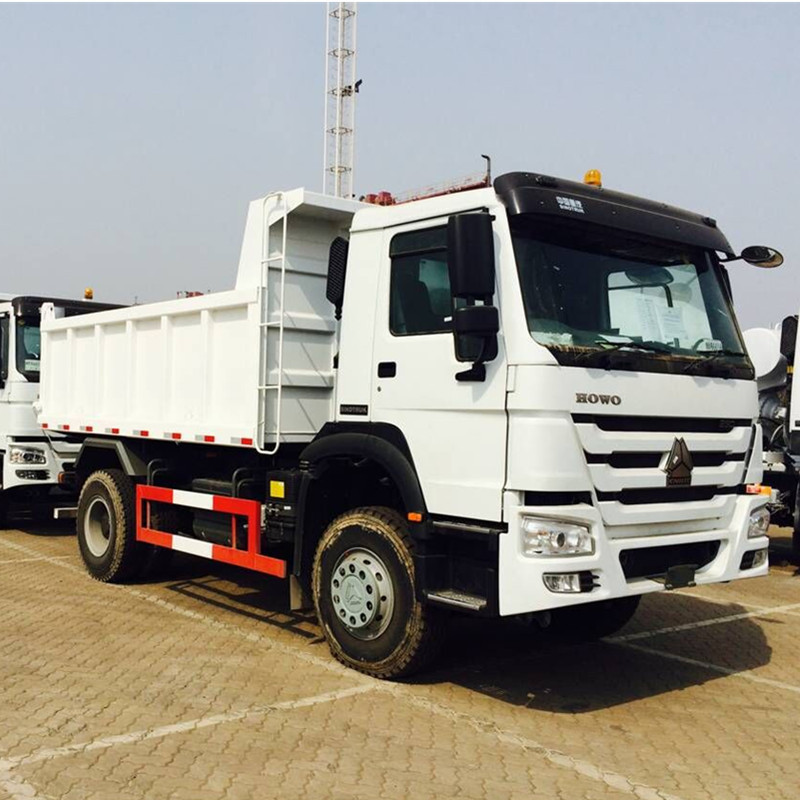

Sinotruk 290hp 4*2 6 wheel 10 Ton Small Howo Dump Truck for Sale
290hp 4*2 6 wheel 10T small Howo Dump Truck for Sale
Gear box :HW19710
Engine:WD615.87
steering:Power steering
Cabin:HW70
Front axle:HF9
Rear axle:HC16
Tire:12.00R20
Wheel base:3800mm
Dimension:6980*2496*3150mm
Body dimension:4200*2300*800mm
6*4 howo dump truck is also available for us.
|
Cabin: |
HW7 6 , flat head, double doors, tippable, normal-roof with A/C
|
||
|
Traction Type: |
6*4 |
||
|
Driving Type: |
LHD |
||
|
Steering model: |
ZF8098 hydraulic steering with power assistance |
||
|
Approaching Angle/Departure Angle : |
19/27 |
||
|
Overhang (Front/rear) (mm): |
1500/1470 |
||
|
Dimension(mm) : |
7545×2496×3170 |
||
|
Engine |
|||
|
|
Engine type: |
Diesel 4-stroke direct injection engine, 6-cylinder in-line,water cooling,turbo-charging & intercooling |
|
|
Engine model: |
WD615.87 |
||
|
Displacement: |
9.726L |
||
|
|
Fuel type: |
diesel |
|
|
Min.fuel consumption: |
198(g/kw.h) |
||
|
Emission Standard: |
Euro2 |
||
|
Max. Output: |
290hp@2200rpm |
||
|
Max. Torque: |
1160NM@1100-1600rpm |
||
|
Gear box |
|||
|
|
Model: |
H15710, 10 forward, 2 reverse
|
|
|
Capacity: |
12L |
||
|
Axle |
Rear axle: |
HC16, 16T*2 loading capacity, double reduction driving axle
|
|
|
Front axle: |
HF9 , 9T loading capacity. Drum brake |
||
|
PTO type: |
Hw50 |
||
|
Body: |
|||
|
Wheel base: |
3225+1350(mm) |
||
|
Tyres: |
11.00-20 |
||
|
Cargo Dimension (mm) |
5200*2300*1500 |
||
|
Thickness of body steel: |
Floo r8 side 4 |
||
|
Lifting Type: |
Middle tipping F type |
||
|
Payment: |
T/T or 100% irrevocable L/C payable at sight |
||
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
Delivery Details: 15-35 days after receiving 30% deposit
Shiping Pictures:
