FOB Reference Price: Get Latest Price
≥1 Sets
US $176000
≥3 Sets
US $100000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

No. of Slitting Lines:
5 - 12
Coil Weight (T):
15 T
Place of Origin:
Jiangsu, China
Brand Name:
HITECH
Voltage:
380V, 220/380/415/440V
Rated Power:
300KW
Dimension(L*W*H):
30x2x2m
Weight:
55000
Product Name:
Galvanized Steel Aluminum Coil Slitting Line Slitting Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Steel Coil Cutting
Slitting Speed:
100m/min
Slitting Precision:
1.5mm
Service:
24*7 Technical Support
Cutting Material:
Carbon Steel,Galvanized Steel,Stainless Steel
Machine Type:
steel coil slitting line

Quick Details

Cutting Width (mm):
50 - 5000 mm
Material Thickness(mm):
0.2 - 3 mm
Cutting Speed(m/min):
80 - 120 mm
No. of Slitting Lines:
5 - 12
Coil Weight (T):
15 T
Place of Origin:
Jiangsu, China
Brand Name:
HITECH
Voltage:
380V, 220/380/415/440V
Rated Power:
300KW
Dimension(L*W*H):
30x2x2m
Weight:
55000
Product Name:
Galvanized Steel Aluminum Coil Slitting Line Slitting Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Steel Coil Cutting
Slitting Speed:
100m/min
Slitting Precision:
1.5mm
Service:
24*7 Technical Support
Cutting Material:
Carbon Steel,Galvanized Steel,Stainless Steel
Machine Type:
steel coil slitting line
Product Description

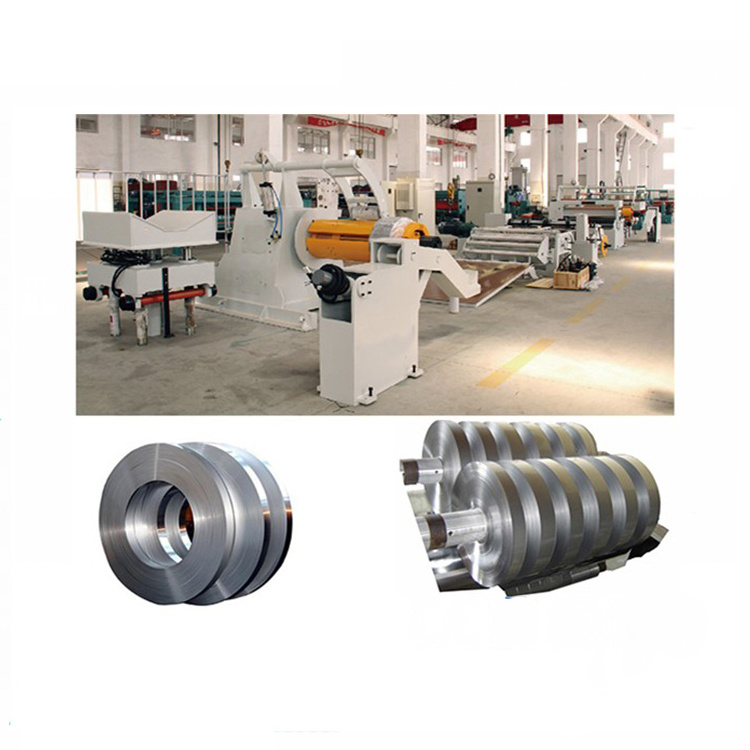

Slitting Line for Steel Coil Uncoiling Leveling Shearing Machine

Application: It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
Advantages: Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.
Structure: It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
Applicable Materials: Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.

Slitting machine line schematic diagram for your information.

Main Parameters
Processing Thickness
0.3~4.5mm
Processing Width
600-1600mm
Slitting Accuracy
±0.15 mm
Slitting Speed
120m/min
Coil Inner Diameter
500/610 mm
Coil Outer Diameter
≤2000 mm
Max. Slitting Numbers
6-22pcs
Slitting Coil Width
≥20 mm
……
……
Not limited to these parameters, custom made according to client practical demands.
Detailed Pictures

Loading cart:Load coil to uncoiler

Uncoiler:Uncoil steel coils

Leveling machine:Leveling sheet and transmit sheet to devices behind it.

Shearing machine:shearing coil end.

Horizontal accumulator:Store a amount of sheet to ensure machine working continuously.

Centering device:center sheet before slitting.

Slitting machine:Slitting coil into strips.It can slit strips of different widths at the same time.

Waste material winder:recoil waste material.

Recoiler:recoil strips into small coils.

Welcome To Visit Our Factory!!!

Our Service

Automatic Cold Rolling Metal Slitting Machine Line

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ

Q:Are you manufacturer?
A: Yes, we are manufacturers of slitting machine,we have our own technical team, and about 80,000 sq.m workshop, welcome to visit us!


Q:What payment terms do you accept?
A: We are flexible on payment terms,we can also help you on financing,please contact us for details!


Q:What information will you need to make the proposal?
A: Coil weight,coil width,coil thickness,minimum strip width,maximum slitting quantity and your special requirements.


Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.


Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer’ s port.
Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send
engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.


Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our  slitting machines are exported to many countries in the world.
You can get higher quality product & better professional service from Hitech with same price.
