Quick Details
-
Application:
-
Machinery
-
Type:
-
Double Action
-
Material:
-
Aluminium Alloy
-
Certificate:
-
Ce, ISO
-
OEM:
-
OEM Services Provided
-
Feature:
-
Widely Used
-
Product type:
-
Enerpac Standard Electric Hydraulic
-
Motor:
-
Brushless Motor
-
Working temperature:
-
-30℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mingshi
-
Product name:
-
electric cylinder
-
Application:
-
Machinery
-
Type:
-
Double Action
-
Material:
-
Aluminium Alloy
-
Certificate:
-
Ce, ISO
-
OEM:
-
OEM Services Provided
-
Feature:
-
Widely Used
-
Product type:
-
Enerpac Standard Electric Hydraulic
-
Motor:
-
Brushless Motor
-
Working temperature:
-
-30℃
Product Description

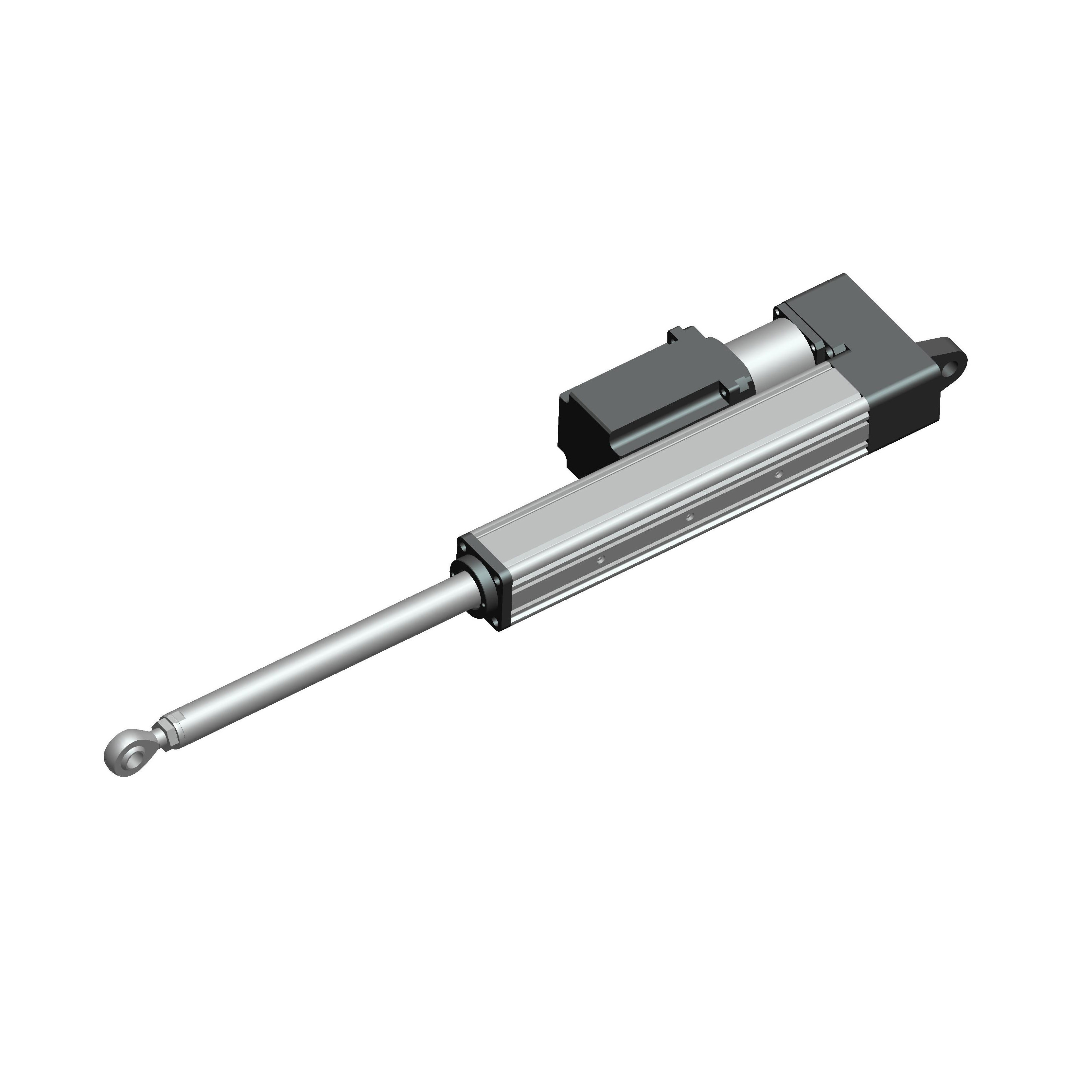

G series electric cylinder, the driving power is DC24V, DC48V, AC220V, AC380V, power 200W-3000W. 400 kg to 5 tons of thrust (the thrust is calculated according to the standard lifting trolley movement speed), the speed is 15mm/S-60mm/S, the installation is simple and fast, only need to connect the power supply and the direction of movement control line to operate, the speed and thrust can be custom made.
Specification
|
Cylinder Diameter/mm
|
32
|
40
|
50
|
50
|
63
|
63
|
80
|
80
|
|||
|
Power/W
|
210
|
300
|
550
|
570
|
1000
|
1500
|
2000
|
3000
|
|||
|
Voltage/V
|
DC24V/DC48V
|
DC24V/DC48V
|
DC24V/DC48V/AC220V
|
|
DC24V/DC48V/AC220V
|
|
AC220V
|
|
|||
|
Rated Speed/mm/s
|
21mm/s-50mm/s
|
21mm/s-50mm/s
|
21mm/s-50mm/s
|
|
21mm/s-50mm/s
|
|
21mm/s-50mm/s
|
|
|||
|
Rated Thrust/KG
|
450KG, 380KG, 320KG, 250KG, 200KG
|
600KG, 500KG, 420KG, 350KG, 250KG
|
1100KG, 950KG, 750KG, 650KG, 450KG
|
1550KG, 1300KG, 1100KG, 900KG, 650KG
|
1900KG, 1600KG, 1300KG, 1100KG, 800KG
|
2800KG, 2400KG, 2000KG, 1600KG, 1150KG
|
3600KG, 3100KG, 2500KG, 2100KG, 1550KG
|
5400KG, 4600KG, 3800KG, 3000KG, 2250KG
|
|||
|
Standard Stroke/mm
|
5-400mm
|
5-400mm
|
G01: 5-500mm; G02: 800mm, 1000mm
|
|
G01: 5-600mm; G02: 800mm, 1000mm
|
|
5-800mm
|
|
|||
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
