Quick Details
-
Model Number:
-
KBSG
-
Coil Number:
-
Three
-
Usage:
-
Mining
-
Coil Structure:
-
layer Coil
-
Standard:
-
IEC 60079
-
Rated capacity:
-
100-- 8000KVA
-
Input voltage:
-
5kV/6kV/10kV/11kV/20kV
-
Material:
-
Copper Winding
-
Type:
-
flame-proof dry type substation
-
Certification:
-
ISO/CE
-
Frequency:
-
50Hz
-
Rated voltage:
-
20KV
-
Insulation class:
-
H
-
Vector Group:
-
Dyn11/Yyn0/Yd11/YNd11
Quick Details
-
Phase:
-
Three
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Varelen
-
Model Number:
-
KBSG
-
Coil Number:
-
Three
-
Usage:
-
Mining
-
Coil Structure:
-
layer Coil
-
Standard:
-
IEC 60079
-
Rated capacity:
-
100-- 8000KVA
-
Input voltage:
-
5kV/6kV/10kV/11kV/20kV
-
Material:
-
Copper Winding
-
Type:
-
flame-proof dry type substation
-
Certification:
-
ISO/CE
-
Frequency:
-
50Hz
-
Rated voltage:
-
20KV
-
Insulation class:
-
H
-
Vector Group:
-
Dyn11/Yyn0/Yd11/YNd11
11/0.4 KV 800kva mining substation manufacturers underground mining equipment

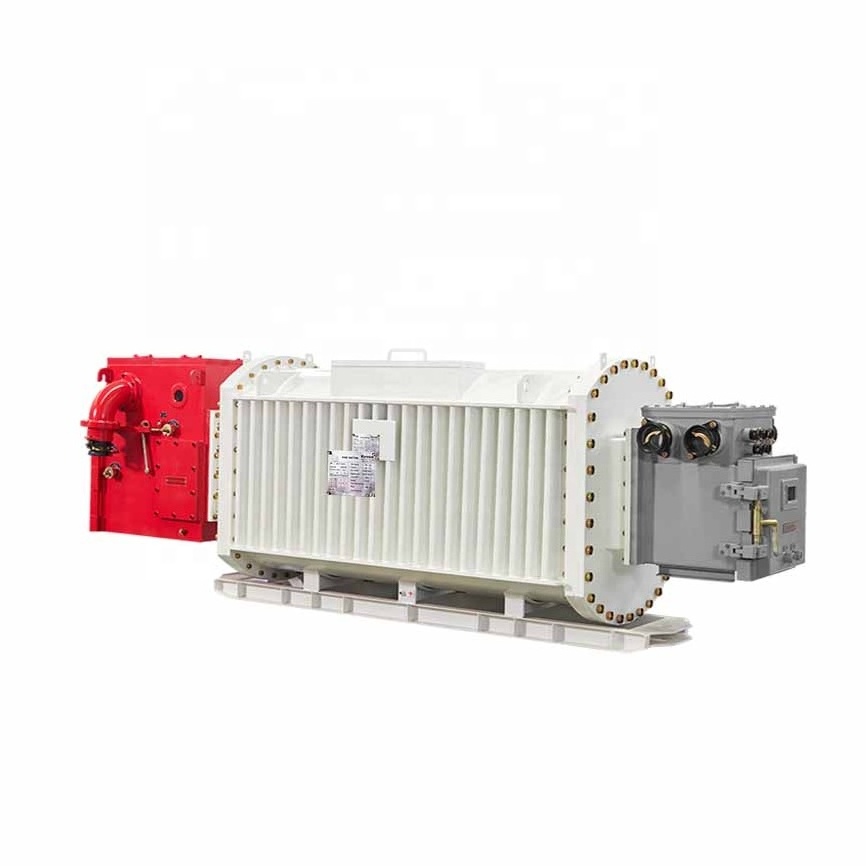

Mining Flame-proof Mobile Substation
Transformers/reactors/intelligent integrated substations-Smart Energy for Better Life
Mining Flame-p roof Mobile Substation is designed especially for the environment of methane mixture gas, coal dust, and potentially explosive areas. It’s widely used in coal mines, non-ferrous metal mines, tunnel projects, etc.
The Explosion-proof Mobile Substation consists of mainly explosion-proof high voltage switch, explosion-proof transformer, and explosion-proof low voltage switch. The transformer is bolted to the high and low voltage switches.
Main Specifications
|
Transformer type |
Three phases, dry type |
|
Frequency |
50/60Hz |
|
Up to 8000kVA |
|
|
Rated voltage |
Up to 10kV |
|
Insulation class |
H, C |
|
Cooling mode |
ANAN |
|
Explosion-proof type |
ExdIMb |
|
Connection code |
Yd, Dyn, Yin, etc. |
|
Executive standard |
IEC60079 |
HV and LV switch es ha ve three configuration option s :
A) Mining Flameproof HV vacuum switch + Mining Flameproof LV protection box
B) Mining Flameproof HV vacuum switch + Mining Flameproof LV feed switch
C) Mining Flameproof HV vacuum switch + Mining Flameproof LV multi-loop combined switch(LMCC)
