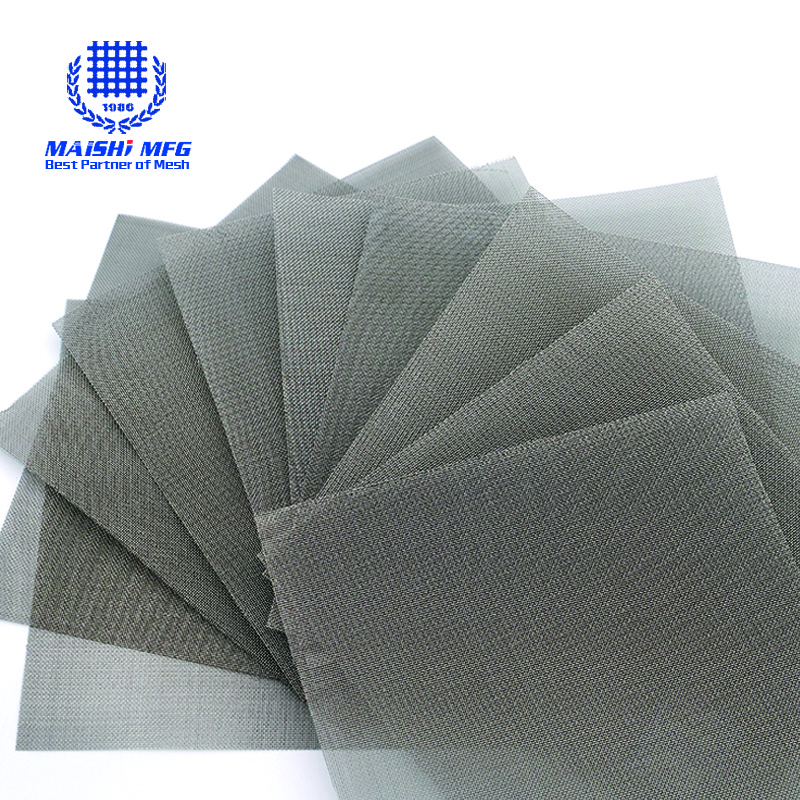

High Grade Screen Micron Stainless Steel Woven Wire Mesh

High Grade Screen Micron Stainless Steel Woven Wire Mesh

FOB Reference Price: Get Latest Price

≥50 Square meters

US $35

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hebei, China

Model Number:: SS-SSM

Brand Name:: MAISHI

Width:: 1m, 1.2m, 1.5m, 2m, at your reques

Length:: 30m/roll, 50m/roll at customer request

Packing:: In waterproof paper, pvc bag, poly-wood case

Features:: Acid resistant, alkali resistant

Certificate:: ISO9001:2008

Hole shape:: Square Hole

Product name:: High Grade Screen Micron Stainless Steel Woven Wire Mesh

Quick Details

Material:: STAINLESS STEEL WIRE

Type:: Weave Wire Mesh

Application:: Filters

Place of Origin:: Hebei, China

Model Number:: SS-SSM

Brand Name:: MAISHI

Width:: 1m, 1.2m, 1.5m, 2m, at your reques

Length:: 30m/roll, 50m/roll at customer request

Packing:: In waterproof paper, pvc bag, poly-wood case

Features:: Acid resistant, alkali resistant

Certificate:: ISO9001:2008

Hole shape:: Square Hole

Product name:: High Grade Screen Micron Stainless Steel Woven Wire Mesh

High Grade Screen Micron Stainless Steel Woven Wire Mesh

MAISHI Wire Mesh MFG is a professional wire mesh manufacturers in China and produce wire mesh product since 1986. and our mesh product has been exported to more than 90 countries and regions, such as USA, Germany etc. I f you need SS wire mesh(including deep processing product), please do not hesitate to contact us.We will do our best to support you.

Stainless Steel Woven Wire Mesh (Plain Weave)
mesh/inch	wire diameter(mm)	aperture(mm)	-	mesh/inch	wire diameter(mm)	aperture(mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.25	0.0385

Stainless Steel Woven Wire Mesh(Twill Weave)
mesh	wire diameter(mm)	aperture(mm)	material (AISI)
250mesh	wire dia.0.040mm	0.063	304 or 316
300mesh	wire dia.0.040mm	0.044	304 or 316
325mesh	wire dia.0.035mm	0.043	304 or 316
350mesh	wire dia.0.030mm	0.042	304 or 316
400mesh	wire dia.0.030mm	0.033	304 or 316

Stainless Steel Woven Wire Mesh(Dutch Weave)
Mesh	Wire Dia. (MM)	Material(AISI)
12meshX64mesh	0.58/0.40	304 or 316
24meshX110mesh	0.36/0.25	304 or 316
14meshX88mesh	0.50/0.33	304 or 316
30meshX150mesh	0.18/0.14	304 or 316
40meshX200mesh	0.14/0.11	304 or 316
50meshX250mesh	0.10/0.071	304 or 316
80meshX700mesh	0.06/0.05	304 or 316
165meshX800mesh	0.071/0.040	304 or 316
165meshX1400mesh	0.05/0.032	304 or 316
200meshX1800mesh	0.05/0.03	304 or 316
325meshX2300mesh	0.030/0.025	316L
400meshX2800mesh	0.030/0.02	316L

Material: SS304,SS316 Stainless Steel Wire

Weave Type: Plain weave, Twilled weave, Dutch weave

Wire Diameter: 0.025-1.8mm

Performance : Corrosion-resisting, Wear-resisting, Tear-resisting

Uses: Mainly used for Filter, protect, Food industry, Chemical industry and so on.

Special size and specification are available according to customers requirment.

Feature:

1. Acid and alkali resistance

2. Corrosion and rust resistance

3. High resistance due to tight wire position

4. Extreme low absolute grade of fineness (down to 5 - 6 μm)

5. Heat resistance

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

HEBEI MAISHI dostrictly tested before the goods dispatched from our factory to ensure the quality for wire mesh .Make sure customers get perfect quality.

· Mesh Count inspect

· Thickness inspect

· Thread diameter& Hole size inspect

· Tensile Strength inspect

· Surface Tension test

Package details for wire mesh :

Paper tube inside, then waterproof paper and plastic bag, finally in poly-wood case or at customer request.

Payment:

T/T in advance if order amount less thanUSD10000.00, 30%paid in advance and 70%paid before shipment if order amount more than USD10000.00.

L/C payment is workable.

Any other payment term can be negotiatory
