Quick Details
-
Weight (KG):
-
220
-
Use:
-
welding
-
Power of motor:
-
1.5KW
-
Work pressure:
-
6.5MPa
-
External dimension:
-
L620*W550*H1000mm
-
Weight:
-
220kg
-
Application:
-
Welding Machine
-
After-sales Service Provided:
-
Video technical support Online support
-
Key words:
-
cold welding machine for copper wire
-
Brand:
-
EASTMAC
-
Model:
-
LS5TY-A
-
Material:
-
ductile iron
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Eastmac
-
Weight (KG):
-
220
-
Use:
-
welding
-
Power of motor:
-
1.5KW
-
Work pressure:
-
6.5MPa
-
External dimension:
-
L620*W550*H1000mm
-
Weight:
-
220kg
-
Application:
-
Welding Machine
-
After-sales Service Provided:
-
Video technical support Online support
-
Key words:
-
cold welding machine for copper wire
-
Brand:
-
EASTMAC
-
Model:
-
LS5TY-A
-
Material:
-
ductile iron
Product Description

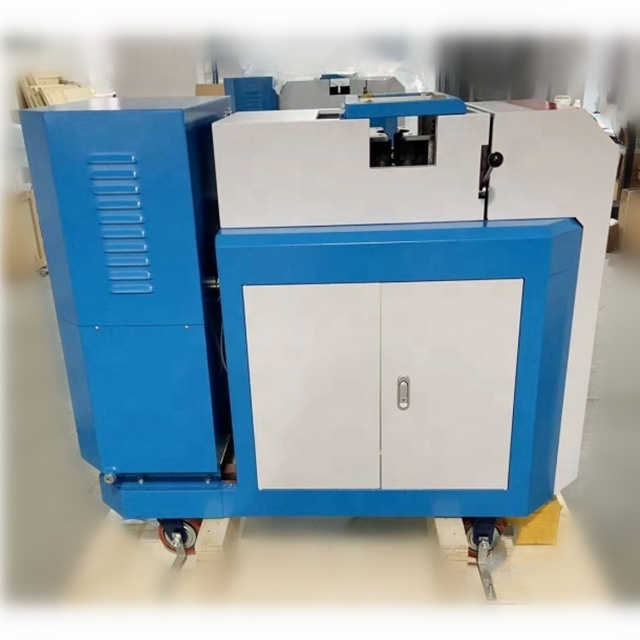

LS5TY-A(J5-A) Hydraulic Desktop Cold Welding Machine
Feature:
The wiring range of hydraulic cold welder is from 1.00mm~25.00mm. According to the different wiring range, there are four models: LS3TY, LS4TY, LS5TY, and LS6TY. The hydraulic parts are all manufactured by well-known professional manufacturers, and their performance is stable and reliable. The oil cylinder adopts high-strength precision cold drawn oil cylinder, and the piston rod of the oil cylinder is specially treated on the surface. Ensure its high strength, high corrosion resistance and corrosion resistance. All control voltages are low voltage, and safety has passed CE certification.
Technical parameters:
|
The range of wire |
Cu: Φ 4.00mm-8.00mm |
AI: Φ 4.00mm-15.00mm |
|
Power of motor |
5.5KW |
|
|
Work pressure |
6.5MPa |
|
|
External dimension |
L1190*W570*H1100mm |
|
|
Weight |
650kg |
|
LS3T-D(J3-D) cold welding machine
Th e Frame is ductile iron
Technical parameters:
|
Dimensions |
L280*W180*H300mm |
|
|
Weight |
33KG |
|
|
The range of wire |
Cu:1.00mm-3.25mm |
AI:1.00mm-5.00mm |
LS4TY(J4) cold welding machine
Technical parameters:
|
The range of wire |
Cu:Φ2.00mm-5.00mm |
AI:Φ2.00mm-8.00mm |
|
Power of motor |
1.5KW |
|
|
Work pressure |
6.5MPa |
|
|
External dimension |
L620*W550*H1000mm |
|
|
Weight |
220kg |
|
LS2T-A(J2-A) cold welding machine
The organism is made of the cast steel
Technical parameters:
|
Dimensions |
L220*W130*H200mm |
|
|
Weight |
9.5KG |
|
|
The range of wire |
Cu:0.30mm-1.20mm |
AI:0.30mm-1.40mm |
LS2T-B(J2-B) cold welding machine
The organism is made of the nodulap cast iron
Technical parameters:
|
Dimensions |
L220*W160*H230mm |
|
|
Weight |
11KG |
|
|
The range of wire |
Cu:0.30mm-1.20mm |
AI:0.30mm-1.40mm |
Pallet Packing, Wooden Packing, Vaccum Packing are all avaible as per your request.
Our Services
Warranty Period - 12Months:
After Service Support:
Factory Visit Available:
Strongger commissioning:
we understand that onsite support for commissioning is a crucial activity and hence we provide a skillful team of experienced engineers to ensure that the start-up and commissioning of our system at your plant is smooth.
Our start-up team is capable to manage and reduce unforeseen risks of performance problems and equipment failures. Our team follows standard processes to ensure that the necessary electrical, mechanical and environmental criteria have been met before commissioning.
Q: What can you offer me?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
Q:Could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical successful commissioning at the buyer's factory)
Q: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP),and we support payment L/C,T/T and so on to ensure your safety.
Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the area of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
