Quick Details
-
Max. Resolution:
-
576 dots/line 512 dots/line
-
Brand Name:
-
woso
-
Place of Origin:
-
Guangdong, China
-
After-sales Service:
-
contact us
-
Accessory specification:
-
OEM
-
Printing Method:
-
Direct thermal
-
Interface:
-
Serial+USB+Lan
-
Print width:
-
72mm / 3inch
-
Print command:
-
ESC/P0S
-
Paper thickness:
-
0.06-0.08mm
-
Dimensions:
-
193.76*144.23*133mm
-
Paper width:
-
79.5+/-0.5 Mm
-
Weight:
-
1.1 kg
-
Auto cutting:
-
half cutting
-
Output:
-
DC 24V/2.5A
Quick Details
-
Max Paper Size:
-
80mm
-
Black Print Speed:
-
300mm/s
-
Color Print Speed:
-
others
-
Max. Resolution:
-
576 dots/line 512 dots/line
-
Brand Name:
-
woso
-
Place of Origin:
-
Guangdong, China
-
After-sales Service:
-
contact us
-
Accessory specification:
-
OEM
-
Printing Method:
-
Direct thermal
-
Interface:
-
Serial+USB+Lan
-
Print width:
-
72mm / 3inch
-
Print command:
-
ESC/P0S
-
Paper thickness:
-
0.06-0.08mm
-
Dimensions:
-
193.76*144.23*133mm
-
Paper width:
-
79.5+/-0.5 Mm
-
Weight:
-
1.1 kg
-
Auto cutting:
-
half cutting
-
Output:
-
DC 24V/2.5A
Product Paramenters

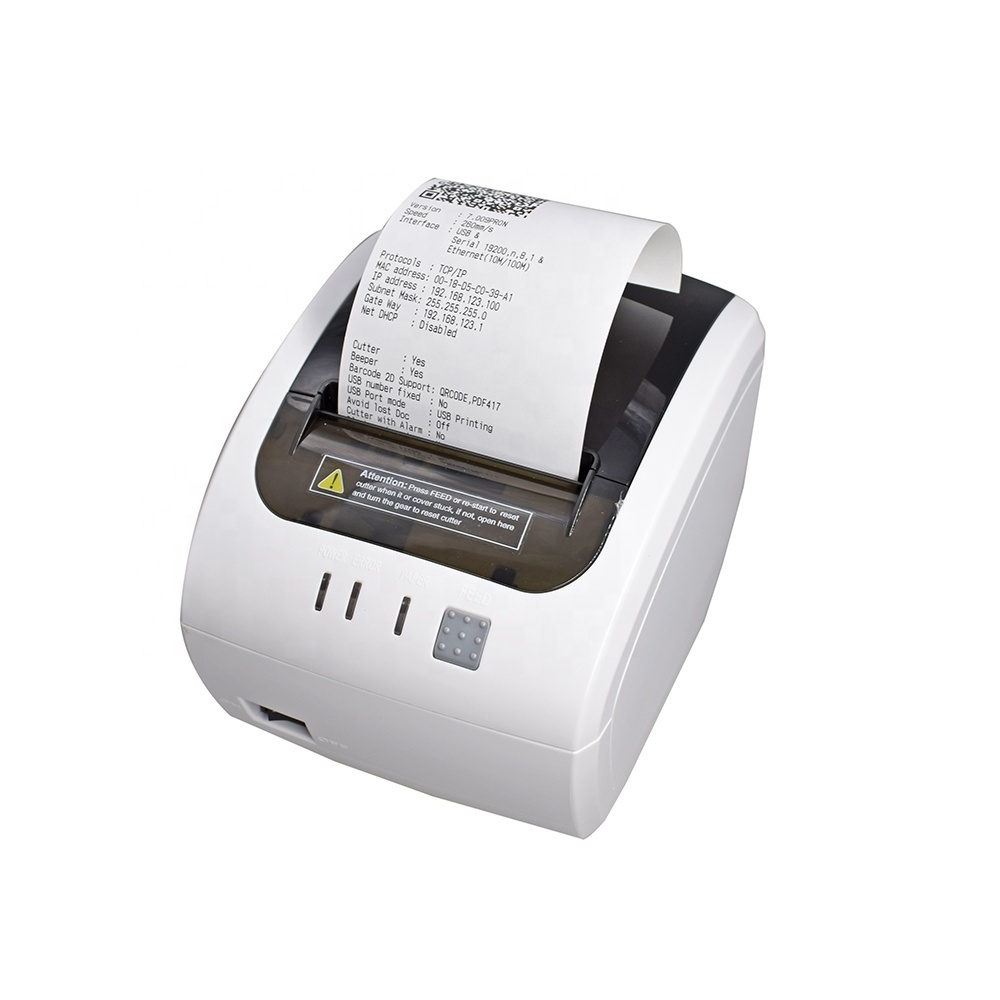

3 inch Thermal Pos Receipt Printer Pos 80mm Bill RS232 Serial USB Lan Thermal Printer driver download
|
Three interface desk 80mm thermal printer DP80USL-17
|
|
|
||
|
print
|
Printing method
|
Direct thermal
|
||
|
|
Print width
|
72mm
|
||
|
|
Column capacity
|
576 dots/line 512 dots/line
|
||
|
|
Printing speed
|
300mm/s
|
||
|
|
Paper thickness
|
0.06-0.08mm
|
||
|
|
Buzzer and indicator light
|
Optional
|
||
|
|
Interface
|
Serial+USB+Lan
|
||
|
|
Printing paper
|
79.5±0.5mm×φ83mm
|
||
|
|
Line spacing
|
3.75mm (Adjustable by commands)
|
||
|
|
Column number
|
80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24
columns |
||
|
|
Font
|
ANK，Font A：1.5×3.0mm（12×24）
|
||
|
|
|
Font B：1.1×2.1mm（9×17）
|
||
|
|
|
chinese：3.0×3.0mm（24×24）
|
||
|
Character and barcode
|
Character
|
PC347（Standard Europe）、Katakana、
|
||
|
|
|
PC850（Multilingual）、PC860（Portuguese）、
|
||
|
|
|
PC863（Canadian-French）、PC865（Nordic）、
|
||
|
|
|
West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
|
||
|
|
Barcode
|
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/
|
||
|
|
|
CODE39/ITF/CODABAR/CODE93/CODE128 QR CODE. PDF417
|
||
|
Cutter
|
Auto cutting
|
half cutting
|
||
|
Flash
|
Input flash
|
256k bytes
|
||
|
|
NV Flash
|
256k bytes
|
||
|
Power
|
Input
|
AC 100-240V, 50～60Hz
|
||
|
|
Output
|
DC 24V/2.5A
|
||
|
|
Output for cash drawer
|
DC 24V/1A
|
||
|
Physical
|
Weight
|
1.1 kg
|
||
|
|
Dimension
|
193.76*144.23*133mmmm
|
||
|
environment
|
Working environment
|
temperature: 0～45℃,humidity: 10～80%
|
||
|
|
Storage environment
|
temperature: -10～60℃, humidity: 10～90%
|
||
|
working life
|
Cutter working life
|
1.5 million times
|
||
|
|
print head working life
|
150 km
|
||
