Quick Details
-
Graphic Format Supported:
-
BMP, JPG
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China, CN
-
Brand Name:
-
NEJE
-
Dimension(L*W*H):
-
19*14.5*16cm
-
Weight (KG):
-
1.8 KG
-
Core Components:
-
laser head
-
Material:
-
Acrylic + Aluminum + Stainless Steel
-
Laser wavelength:
-
405nm
-
Software support:
-
Laser Carver
-
Image size:
-
490*490Pixles
-
Power mode:
-
Dual USB
-
Laser Operating temperature:
-
500 degrees
-
power supply voltage:
-
4.2-5V
-
Item:
-
DIY USB Laser Engraving Machine Mini
-
Certification:
-
ce
Quick Details
-
Engraving Area:
-
38*38MM
-
Laser Type:
-
Diode
-
Engraving Speed:
-
0-100
-
Graphic Format Supported:
-
BMP, JPG
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China, CN
-
Brand Name:
-
NEJE
-
Dimension(L*W*H):
-
19*14.5*16cm
-
Weight (KG):
-
1.8 KG
-
Core Components:
-
laser head
-
Material:
-
Acrylic + Aluminum + Stainless Steel
-
Laser wavelength:
-
405nm
-
Software support:
-
Laser Carver
-
Image size:
-
490*490Pixles
-
Power mode:
-
Dual USB
-
Laser Operating temperature:
-
500 degrees
-
power supply voltage:
-
4.2-5V
-
Item:
-
DIY USB Laser Engraving Machine Mini
-
Certification:
-
ce

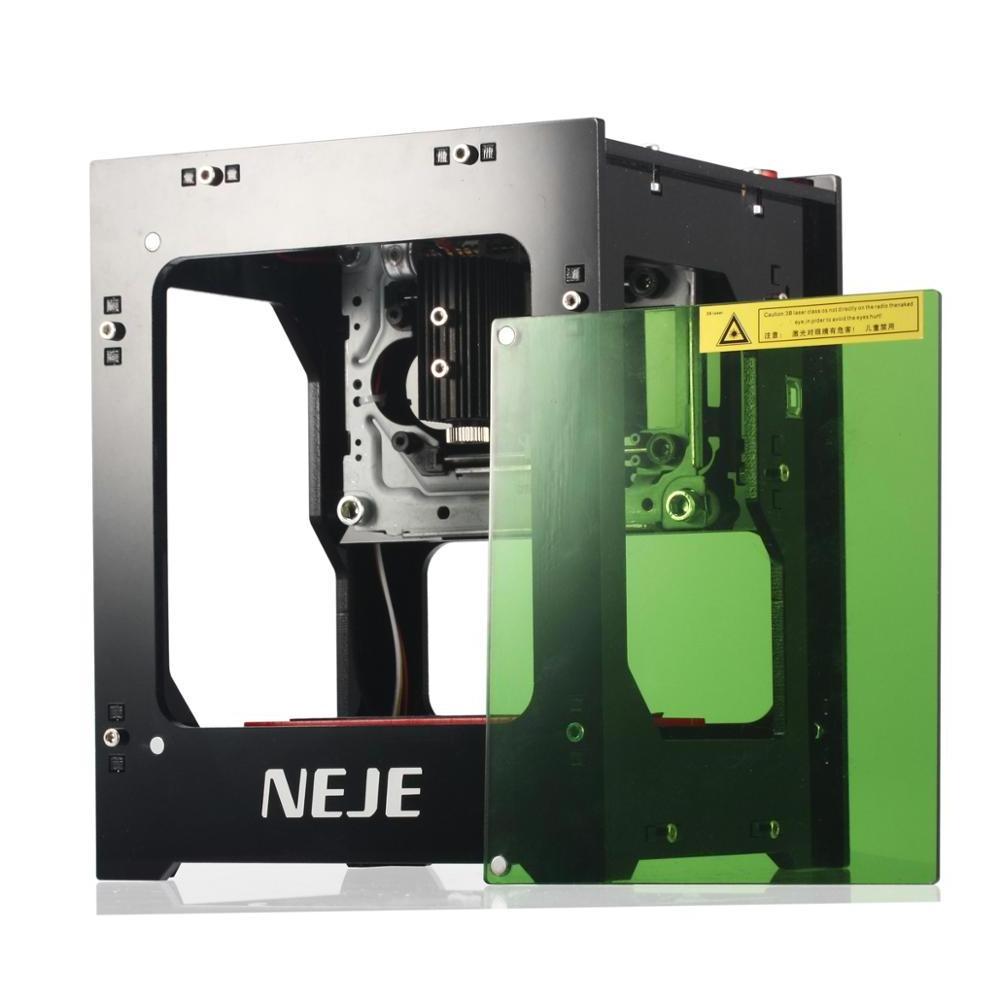

Smart DIY USB Laser Engraving Machine Mini
NOTE:
1. It can not engrave metal, acrylic and any other retardant material.
2. Can't support Macbook system, only support Windows 7 / 8 / 10.
3. To prevent the laser head from burning out caused by overheating, please turn off the machine for at least 5mins after 30mins continuous working.
1. Support our professional English, Simplified Chinese, Japanese, French, Italian, German design software .
2. Engraving is 10 times faster.
3. Strong and cool design, high precision and stability, with 108 screws and alloy structure that make it strong.
4. Unique frame and weak light automatic positioning, Frame positioning makes the image positioning easier, Weak light even would not be difficult to engrave in toothpicks, Make engraving picture no
excess residue and perfect, also more safe to prevent fire.
5. 490x490 high Resolution Print, Soft material can print out the 3D and the gradient effect.
6. Lone time use, NEJE developed the professional power IC and radiator, Carving time will last much longer than other laser and more
stable.
7. Truly 1500mW Blue and purple laser head, more higher speed, support more types of materials.
Specifications:
Brand: NEJE
Model: DK-8-KZ
Color: Black & Red
Material: Acrylic + Aluminum + Stainless Steel
Laser Power: 1500mw;
Laser wavelength: 405nm;
Laser Operating temperature: 500 degrees;
Support software: Laser Carver;
Image formats: jpg;
Image Size: 490x490pixels;
Image engraving pattern: Bitmap engraving;
Supply voltage: 4.2V-5.5V;
Supply Current: 1A;
Support xp, win7, win8, win10;
Can be carved objects: mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc and so on. Can NOT engrave Metal/Aluminum/Acrylic.
Uses: engraving, hand tools and industrial processing
High power, high speed, high precision
Work Area: 38*38mm
What size image can it print up to , what thickness of items can be printed on? 38*38mm
Size: 19.8x14.5x16cm
Net weight:1100g
Package size: 30*21*23cm
Package Weight: 1800g
Package List:
1 * Engraving Machine
1 * Protective Board
2 * USB Cables
1 * Allen Wrench
1 * Focusing Film
1 * User Manual
