Vehicle Bus Truck Tractor Air Condition Switch Hvac Climate Controller Switch

Power supply

DC12V(DC9+1V-15+1V)

Power consumption

3W

Current

Max.200mA

Dimensions

118X53X23mm

Input

1) Inside temp. sensor(25°C,Rb=5K,B=3274)
2) Defrost sensor(25°C,Rb=5K,B=3274)
3) Power check
4) Pressure switch
5) ACC powerDC12V(battery)

Output

1) Evaporate High (Max 0.4A)
2)Evaporate Middle (Max 0.4A)
3) Evaporate Low (Max 0.4A)
4) Compressor& Clutch(max 0.4A)
5) Water valve
6) Fresh air

Display

2 segment

Ambient temperature

-30°C—80°C 5%-95%RH Non-condensing

Storage temperature

-10°C—70°C 5%-95%RH Non-condensing

Display precision

Dual digit display of set temp., accuracy 1°C; dual digit display of inside temp. accuracy 1°C

Humidity test standard

Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2°C, defrost off at
4°C

Connector

5569-10A ,5569-4A

Faceplate level

IP43

EMC level

EN50081&EN50082-2

Security level

Applied to EN61010-II, Pollution degree: II

Weight

305g

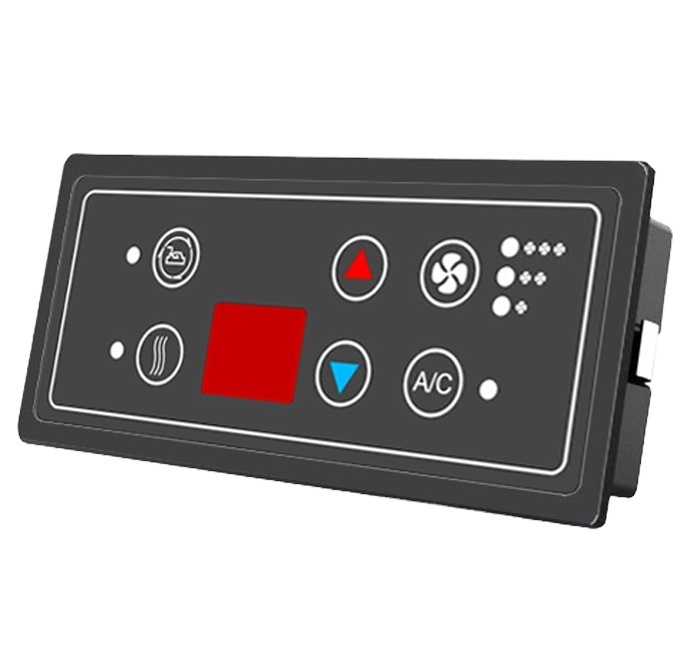

Bus air conditioning control panel: Bus Internal Climate Control (Successful Case: YUTONG,Winia mando,Hyundai,Yuxin automative air conditioner)

Main function: Manual operation, cool, fresh air, error alarm, air-flow regulation, linear temp. setting. (can be customized as your requiry)

Application case: (can be customized as your requiry)

Technical date (can be customized as your requiry)
