Quick Details
-
Dimension(L*W*H):
-
850*350*750mm
-
Weight:
-
95 kg
-
Marketing Type:
-
Hot Product 2023
-
Item name:
-
feed pellet making machine
-
Usage:
-
Producing Animal Feeds Pellets
-
Keywords:
-
Aniaml Feed Machine
-
Function:
-
Feed Pellet Production Machine
-
final pellet:
-
2-10mm Pellet
-
Raw material:
-
Bran, maize, soybean, cereal
-
Spare parts:
-
Flat Die+ Rollers
-
Application:
-
Producing Animal Feeds Pellets
Quick Details
-
Max. Capacity:
-
80-1600G/H
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
850*350*750mm
-
Weight:
-
95 kg
-
Marketing Type:
-
Hot Product 2023
-
Item name:
-
feed pellet making machine
-
Usage:
-
Producing Animal Feeds Pellets
-
Keywords:
-
Aniaml Feed Machine
-
Function:
-
Feed Pellet Production Machine
-
final pellet:
-
2-10mm Pellet
-
Raw material:
-
Bran, maize, soybean, cereal
-
Spare parts:
-
Flat Die+ Rollers
-
Application:
-
Producing Animal Feeds Pellets
Product Description

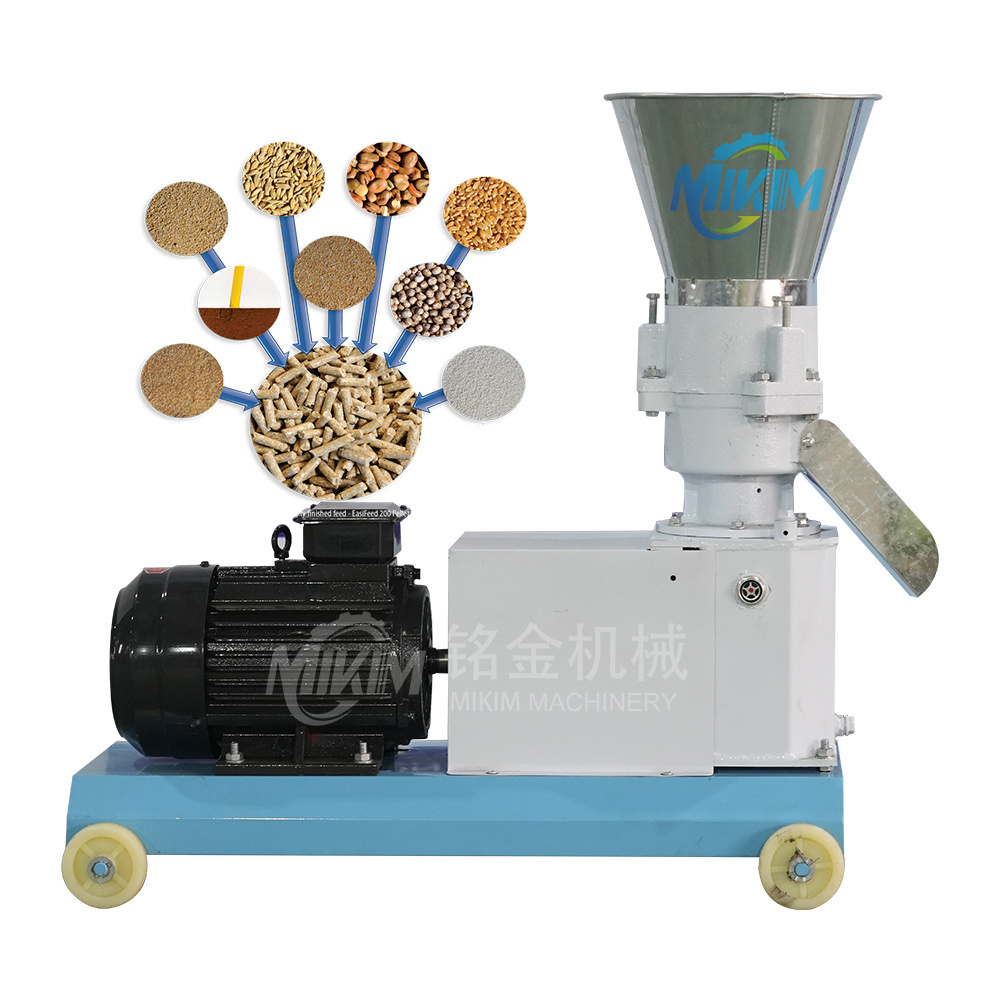

Automatic animal feed pellet machine fish shrimp chicken feeds pelletizer granulator sheep cattle feed making processing machine
The most popular type of small pellet mill for sale is electric pellet mill. Because of its relatively small capacity, usually the small pellet mills are used for home, small farm or small plants and workshops. The pellets made by the mill can be used for home heating, cooking, horse bedding, cat litter, and so on.
Technical Parameter of
Small Pellet Mill
|
Model
|
Capacity(kg/h)
|
Motor（kw）
|
Diesel（hp）
|
Pack Size (mm)
|
Weight(kg)
|
|
AKK-125
|
80-100
|
3
|
8
|
850*350*750
|
95
|
|
AKK-150
|
90-150
|
4
|
8
|
850*350*750
|
98
|
|
AKK-160
|
150-220
|
4.5
|
8
|
850*350*750
|
100
|
|
AKK-210
|
200-300
|
7.5
|
15
|
1100*520*780
|
200
|
|
AKK-230
|
250-350
|
11
|
22
|
1200*530*820
|
250
|
|
AKK-260
|
400-500
|
15
|
24
|
1250*560*920
|
320
|
|
AKK-300
|
600-800
|
22
|
35
|
1450*660*960
|
415
|
|
AKK-360
|
900-1000
|
22
|
35
|
1550*720*1150
|
600
|
|
AKK-400
|
1200-1500
|
30
|
55
|
1650*780*1220
|
800
|
|
AKK-500
|
1500-1600
|
45
|
|
1960*880*1500
|
1000
|
|
Performance Features of Feed Pellet Making Machine
|
|
|
|
1
|
Transmission gears made of High quality alloy steel,surface adopts carburizing and quenching treatment,precision machining by grinding,smooth transmission,low noise,large carrying capacity, low temperature rise,long life etc.
|
|
|
2
|
Spindle with a heavy thrust bearing, support axial force, long life span.
|
|
|
3
|
Roller and flat die wear peace deal,both side can use the flat die ,long service life.
|
|
|
4
|
Use large diameter roller,big yield,pelletizing rate is high,uniform high strength pellets.
|
|
|
5
|
All bearings are sealed structure that effectively prevent dust,improve the working bearings, environment, extending bearing lift.
|
|
|
6
|
Highest grade tool steel die and rollers that are designed to fit YOUR PRODUCT.
|
|
|
7
|
Full consultation at NO Charge at YOUR FACILITY.
|
|
|
8
|
Low wear of roller,dies and bearings.
|
|
|
9
|
Do not need to add binder.
|
|
|
10
|
Pellet diameter from 6-12mm for user select.
|
|
|
11
|
Easier to clean than pellet machine with ring die.
|
|
|
12
|
Small and lightweight, available for homemade or farm pellet production.
|
|
|
13
|
If you need support on selection of Pellet Machine,contact us.
|
|
Factory Photos
Product Application
Raw Materials:
* For feed stuff use:
The compressed piece is suitable to be used as fuels and feedstuff of animals, such as horse, sheep, deer, pig, chicken, etc. Such machines are suitable for farms, and organic herbal medicine and chemical industry etc.
* For wood pellets use:
This series flat die pellet presses can be used for producing wood pellets. Wood pellets are made of all kinds of wood sawdust and wood waste particle.
* For biomass pellets use
Biomass pellets are made of peanut sheller, corn stalk and other biomass materials. Crushed agriculture waste including corn stalks, cotton stalks, wheat straw, rice husk, corn cob, groundnut shell,etc.
The compressed piece is suitable to be used as fuels and feedstuff of animals, such as horse, sheep, deer, pig, chicken, etc. Such machines are suitable for farms, and organic herbal medicine and chemical industry etc.
* For wood pellets use:
This series flat die pellet presses can be used for producing wood pellets. Wood pellets are made of all kinds of wood sawdust and wood waste particle.
* For biomass pellets use
Biomass pellets are made of peanut sheller, corn stalk and other biomass materials. Crushed agriculture waste including corn stalks, cotton stalks, wheat straw, rice husk, corn cob, groundnut shell,etc.
