Quick Details
-
Certificate:
-
CE
-
flow rate:
-
28.3L/M(1 CFM)
-
monitor type:
-
online
-
monitor size:
-
120*80*100mm
-
Power supply:
-
7.4-12VDC
-
Analog signal out put:
-
RS323/RE485 or 4-20mA
-
Channels:
-
0.5um, 5.0um
-
Life time of laser:
-
60,000 hours
-
MOQ:
-
1 PC
-
Price:
-
Customizable,It depends on the actual situation
Quick Details
-
Brand Name:
-
HJCLEAN TECH
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
Y09-SS
-
Certificate:
-
CE
-
flow rate:
-
28.3L/M(1 CFM)
-
monitor type:
-
online
-
monitor size:
-
120*80*100mm
-
Power supply:
-
7.4-12VDC
-
Analog signal out put:
-
RS323/RE485 or 4-20mA
-
Channels:
-
0.5um, 5.0um
-
Life time of laser:
-
60,000 hours
-
MOQ:
-
1 PC
-
Price:
-
Customizable,It depends on the actual situation
Product Description
product introduction

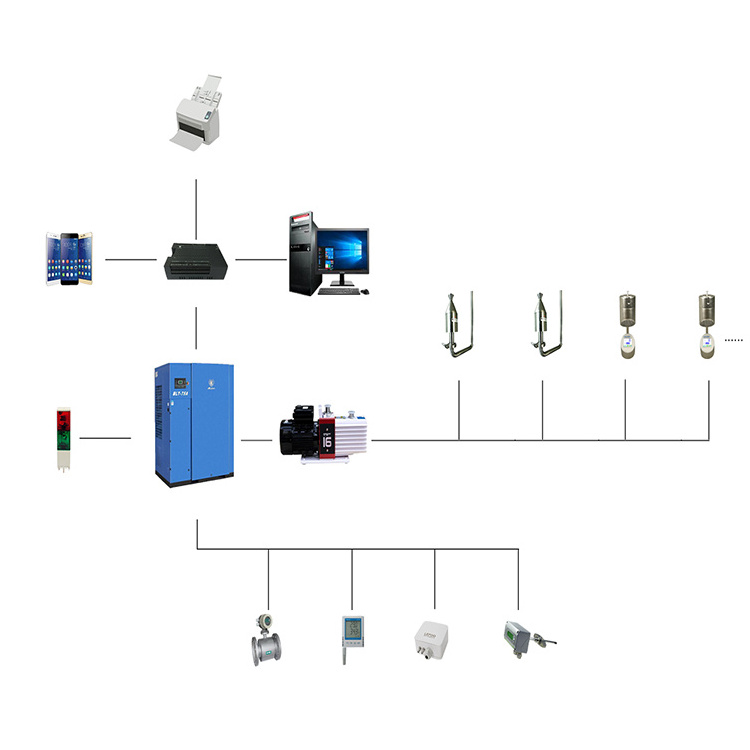

The online monitoring system of suspended particles is used to record the status of suspended particles in the air of key areas of the production line. It can automatically and continuously monitor and record the size and quantity distribution of suspended particles in the monitored ambient air, and generate reports at the same time. When the state of the dust particles in the monitoring environment exceeds the warning line and deviation correction line, the system can automatically trigger the sound and light alarm and inform the relevant personnel to deal with it, so as to help ensure that the state of the particles in the key monitored environment is in a normal state and ensure the smooth progress of production.
|
Certificate
|
CE
|
|
flow rate
|
28.3L/M(1 CFM)
|
|
monitor type
|
online
|
|
monitor size
|
120*80*100mm
|
|
Power supply
|
7.4-12VDC
|
|
Analog signal out put
|
RS323/RE485 or 4-20mA
|
|
Channels
|
0.5µm, 5.0µm
|
|
Wave length of laser
|
650nm
|
|
Life time of laser
|
60,000 hours
|
