Quick Details
-
Productivity:
-
100/60M3/h
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
maxizm
-
Weight:
-
15200 kg
-
Dimension(L*W*H):
-
9845*2500*3596 mm
-
Product name:
-
Concrete Pump Truck
-
Model:
-
38X-5RZ-2
-
Maximum theorical output:
-
100/60m3/h
-
Maximum pressure on concrete:
-
80/150bar
-
Concrete hopper capacity:
-
550L
-
Hydraulic circuit:
-
Open
-
Maximum vertical reach:
-
37.1m
-
Maximum horizontal distance:
-
32.8m
-
Minimum unfolding height:
-
8m
-
Section numbers:
-
5
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
37.1M
-
Max. horizontal conveying distance:
-
32.8M
-
Productivity:
-
100/60M3/h
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
maxizm
-
Weight:
-
15200 kg
-
Dimension(L*W*H):
-
9845*2500*3596 mm
-
Product name:
-
Concrete Pump Truck
-
Model:
-
38X-5RZ-2
-
Maximum theorical output:
-
100/60m3/h
-
Maximum pressure on concrete:
-
80/150bar
-
Concrete hopper capacity:
-
550L
-
Hydraulic circuit:
-
Open
-
Maximum vertical reach:
-
37.1m
-
Maximum horizontal distance:
-
32.8m
-
Minimum unfolding height:
-
8m
-
Section numbers:
-
5
Product Description

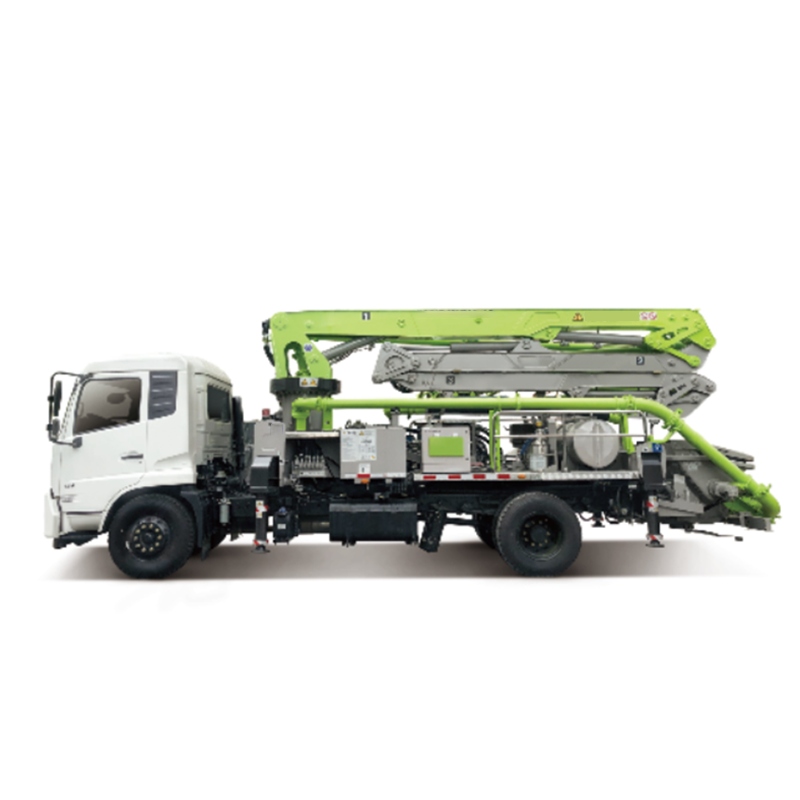

38X-5RZ-2 mobile trailer mounted price concrete pump 38m pump truck
Product Features:
Compact in design. If you want a truck pump with 38m boom working in narrow space, you can choose 38X-5RZ on a 2 axles truck.
Dual-function. Max. pressure is up to 150 bar, so it can be used as a city pump.
Boom intelligent damping technology. Reducing the impacting vibration of booms and makes operate more stably, reliably and safely.
Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
Adaptive concrete material pumping technology: Specially designed for poor concrete with easy segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Full self-diagnosis before, after and during pumping to ensure working safely.
Compact in design. If you want a truck pump with 38m boom working in narrow space, you can choose 38X-5RZ on a 2 axles truck.
Dual-function. Max. pressure is up to 150 bar, so it can be used as a city pump.
Boom intelligent damping technology. Reducing the impacting vibration of booms and makes operate more stably, reliably and safely.
Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
Adaptive concrete material pumping technology: Specially designed for poor concrete with easy segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Full self-diagnosis before, after and during pumping to ensure working safely.
Specification:
|
Max. Theor. output |
m3/h
|
140/90
|
|
Max. Theor. concrete output Pressure
|
MPa
|
7/11
|
|
Rated working pressure
|
MPa
|
35
|
|
Pumping frequency
|
min-1
|
27/17
|
|
Hopper capacity
|
L
|
550
|
|
Filling height
|
mm
|
1540
|
|
Hydraulic system type
|
|
opened loop
|
|
Distribution valve
|
|
S valve
|
|
Oil cylinder dia.×stroke
|
mm
|
φ130×2100
|
|
Concrete cylinder dia.×stroke
|
mm
|
φ230×2100
|
|
Hydraulic oil cooling
|
|
Wind cooling
|
|
Recommended concrete slump
|
cm
|
12~23
|
|
Max. aggregate dimension
|
mm
|
40
|
