Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bendakang
-
Model Number:
-
Armored/ YJV32
-
Size:
-
16mm to 240mm
-
Product name:
-
Xlpe Insulated PVC Sheathed Power Cable
-
Voltage Rate:
-
0.6/1kv
-
Range of NOminal cross section:
-
1.5mm2~630mm2
-
Standard:
-
IEC,BS,GB/T
-
Insulation:
-
XLPE
-
Max.operating Temperature:
-
70℃,can be,90℃ , 110℃ as per requirement
-
Packing:
-
Wooden Drum or as per requirement
-
Remark:
-
can be of flame retaradance,fire resistance and other property
-
core:
-
1C.2C.3C.4C.5C.3C+1E.4C+1E.3C+2E
-
keyword:
-
copper conductor cable
-
Color:
-
Black, Blue ,Brown ,Black ,White,Green Yellow
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Industrial
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bendakang
-
Model Number:
-
Armored/ YJV32
-
Size:
-
16mm to 240mm
-
Product name:
-
Xlpe Insulated PVC Sheathed Power Cable
-
Voltage Rate:
-
0.6/1kv
-
Range of NOminal cross section:
-
1.5mm2~630mm2
-
Standard:
-
IEC,BS,GB/T
-
Insulation:
-
XLPE
-
Max.operating Temperature:
-
70℃,can be,90℃ , 110℃ as per requirement
-
Packing:
-
Wooden Drum or as per requirement
-
Remark:
-
can be of flame retaradance,fire resistance and other property
-
core:
-
1C.2C.3C.4C.5C.3C+1E.4C+1E.3C+2E
-
keyword:
-
copper conductor cable
-
Color:
-
Black, Blue ,Brown ,Black ,White,Green Yellow
Product Description
copper conductor cable price 25 35 50 70 95 mm copper electrical cable PVC XLPE power cable manufacture
Product Description
1. Standards: GB/T12706-2008, IEC60502-2005.

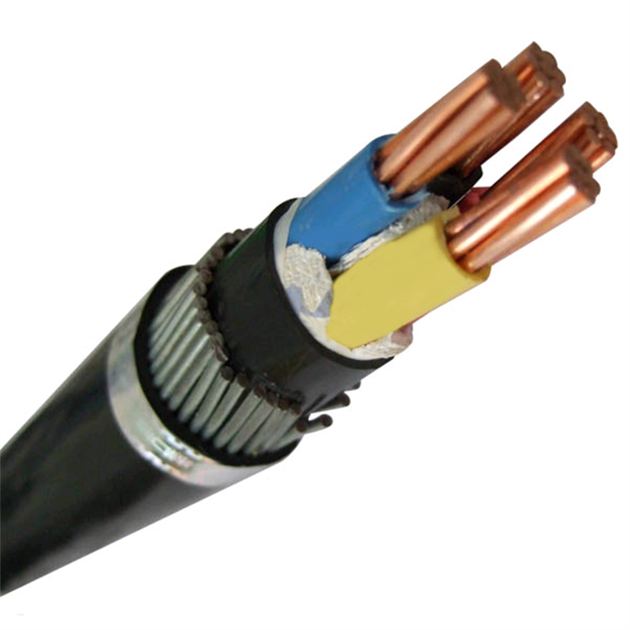

2. Description: copper conductor, XLPE insulated PVC sheathed steel tape armoured power cable.
3. Conductor: Copper.
4. Insulation/sheath:XLPE/ PVC
5. Voltage:0.6/1KV
6. Type ,description and application
| Type | Description | Application | |
|
YJV(YJY) YJLV(YJLY) |
Copper (Aluminum) conductor , XLPE insulated PVC sheathed power cable. |
|
For laying indoors, in tunnels, in ducts. Able to bear external mechanical force but not lager pulling forces. Single core cables are impermissible to be laid in magnetic ducts. |
|
YJV22(YJY22) YJLV22(YJLY22) |
Copper (Aluminum) conductor , XLPE insulated PVC sheathed steel tape armoured power cable. |
|
For laying indoors, in tunnels, in ducts and underground. Able to bear external mechanical force but not lager pulling forces. Impermissible to use single core cable in A.C circuit. |
Technical Data:
