Quick Details
-
Brand Name:
-
LongTime
-
Model Number:
-
LT-G13
-
Surface Treatment:
-
smooth, concave, gritted
-
Product name:
-
FRP Grating
-
Material:
-
Fiberglass Reinforced Plastic, Resin
-
Color:
-
Black\gray\white\yellow\red\green
-
Shape:
-
Square, Rectangular
-
Thickness:
-
25mm, 30mm, 38mm,40mm, 50mm
-
Dimensions:
-
38*38*38/50*50*50mm
-
Size:
-
1.22m*2.44m, 1.22m*3.66m, customized
-
Packing:
-
Pallet, wooden case
-
MOQ:
-
100 m2
-
Selling point:
-
Good quality, good price
Quick Details
-
Application:
-
construction, walkway, roof, floor, etc
-
Technique:
-
moulding
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LongTime
-
Model Number:
-
LT-G13
-
Surface Treatment:
-
smooth, concave, gritted
-
Product name:
-
FRP Grating
-
Material:
-
Fiberglass Reinforced Plastic, Resin
-
Color:
-
Black\gray\white\yellow\red\green
-
Shape:
-
Square, Rectangular
-
Thickness:
-
25mm, 30mm, 38mm,40mm, 50mm
-
Dimensions:
-
38*38*38/50*50*50mm
-
Size:
-
1.22m*2.44m, 1.22m*3.66m, customized
-
Packing:
-
Pallet, wooden case
-
MOQ:
-
100 m2
-
Selling point:
-
Good quality, good price

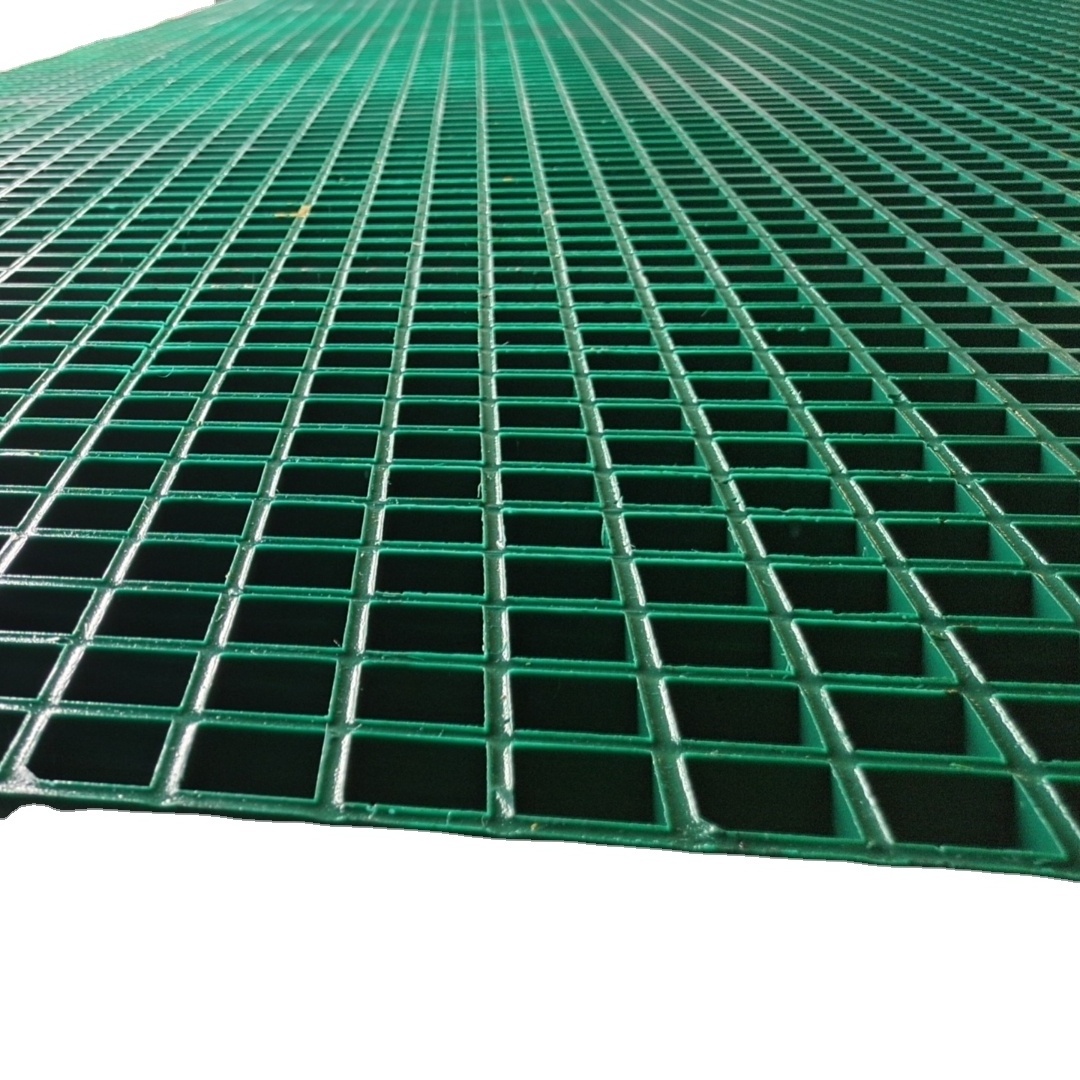

Fiberglass Composite Plastic FRP GRP Grating as Stair Treads / Platform / Walkways, Molded, Square Grid
FRP IS UP TO 70% LIGHTER THAN STEEL WITH AN EXCEPTIONAL STRENGTH-TO-WEIGHT RATIO.
Our FRP has a high strength-to-weight ratio when compared to traditional materials like metal, concrete and wood. FRP gratings can even be strong enough to carry vehicular loads while weighing less than steel gratings.
FRP IS CORROSION RESISTANT AND REQUIRES LESS MAINTENANCE THAN STEEL.
The durability and corrosion resistance of our FRP gratings and other FRP products reduce or eliminate the need for heavy maintenance like sandblasting, scraping and painting. In fact, most Fibergrate products are easily cleaned with a high-pressure washer.
FRP IS NON-CONDUCTIVE AND SLIP RESISTANT, PROVIDING A SAFER ALTERNATIVE TO STEEL.
The safety of your team is your highest priority. Fibergrate FRP products are non-conductive and have a higher friction factor than steel, reducing the risk of electrical shocks and injuries caused by slips. FRP is the clear choice for safer structural products.
Feature
Corrosion Resistant
Fibergrate fiberglass reinforced plastic (FRP) products are known for their ability to provide corrosion resistance in the harshest environments and chemical exposures. Unlike metal and wood, FRP products will not rust or corrode and will continue to maintain structural integrity over time.
Low Maintenance
The durability and corrosion resistance of our FRP molded and pultruded gratings and other products reduce or eliminate the need for heavy maintenance like sandblasting, scraping and painting. In fact, most Fibergrate products are easily cleaned with a high-pressure washer.
Slip Resistant
Our molded and pultruded gratings and stairway products provide superior, slip resistant footing in wet and oily environments. Steel becomes slippery when oily or wet, but Fibergrate gratings have a higher friction factor and remain safe even when wet. Our slip resistant products increase safety for workers which will lead to fewer workplace accidents and a reduction of injury-associated costs.
Long Service Life
Our products provide outstanding durability and corrosion resistance in demanding applications, providing improved product life over traditional materials. The longevity of our products provide cost savings over the product’s life cycle. Installed costs are less because of the ease of installation. Maintenance expenses reduce because there is less downtime in areas requiring maintenance, and the costs of removing, disposing, and replacing the corroded steel grating is eliminated.
Low Installation Costs
Steel installation can be time consuming and equipment intensive. Fibergrate products can be easily and quickly cut with ordinary hand tools. Welding or hot work is not necessary with FRP. Fibergrate fiberglass gratings are lightweight and can be installed easily with bolts and clips. Installation of FRP material can be done without using heavy equipment and machinery, requiring less manpower.
High Strength-to-Weight Ratio
Our FRP has a high strength-to-weight ratio when compared to traditional materials like metal, concrete and wood. FRP gratings can be designed to be strong enough to carry vehicular loads while still being less than one-half the weight of steel grating.
Impact Resistant
Our FRP can withstand major impacts with negligible damage. We offer extremely durable gratings to satisfy even the most stringent impact requirements.
Light weight
The lightweight properties of our FRP result in products that weigh considerably less than steel. The density of steel is four times higher than that of FRP, and steel gratings are two to two-and-a-half times heavier than FRP gratings. FRP’s lighter weight allows easy removal for access below floor level. The reduction in weight that our products provide can save on material transit costs and installation costs.
Electrically & Thermally Non-Conductive
Our FRP is electrically non-conductive leading to increased safety compared to conductive materials (i.e., metal). FRP also has low thermal conductivity (heat transfer occurs at a lower rate), resulting in a more comfortable product surface when physical contact occurs.
Fire Retardant
Most our products are engineered to have a flame spread of 25 or less as tested in accordance with ASTM E-84. They also meet the self-extinguishing requirements of ASTM D-635.
Ergonomic
The properties of our FRP materials create flexible products that can sometimes “cushion” worker movement, easing strain on workers’ muscles and creating a more comfortable working surface. The ergonomic features of our products can help to reduce worker fatigue and increase productivity.
UV Resistant
Our fiberglass gratings and profiles are formulated for maximum UV resistance. A special coating is also available for increased UV resistance on our gratings.
|
Product Name
|
FRP grating
|
|
Material
|
Fiberglass, resin
|
|
Production method
|
Molding, cutting
|
|
Color
|
Yellow, green, blue, grey, black, orange, red, white
|
|
Surface type
|
Smooth, concave, gritted, covered
|
|
Grid dimension
|
38*38*25mm, 38*38*30mm, 38*38*38mm, 50*50*50mm
|
|
Panel size
|
1.22*2.44m, 1.22*3.66m, 1.22*4.04m
|
|
Customization
|
Accepted
|
|
Sample
|
Available
|
Production Process
1. Stirring raw materials
Resin, fiberglass fiber yarn, calcium powder filling, color paste, reagents, etc. are arranged in proportion, stirring for 20 minutes.
2. Pouring material
Pouring the mixed raw materials onto the mold machine corresponding to the FRP grating.
3. Draw yarn
Lay the alkali-free yarn layer by layer to improve the strength of the FRP grating.
4. Compression mold
The stirred raw materials are poured into the mold and compacted mechanically or manually.
5. Heat curing
After the grating is heated for 20 minutes, the raw materials and yarn are fused together.
6. Cooling demoulding, mold lifting
After the above process is completed, cooling for 10 minutes demolding, mold lifting, semi-finished grating finished.
7. Grinding, painting and washing
The FRP grating is polished and washed with a layer of varnish or water.
Application
1. Water treatment: maintenance aisles, gutter covers, large containers, washers, trash racks, flow troughs, biochemical water treatment tank hangers, ventilation windows, stairs, cooling tower operating table pavement.
2. Chemical plants: stair treads, operating platforms, guardrails, double floors, trench covers, filter grids.
3. Petroleum industry: Offshore oil platforms.
4. Textile mills: instead of metal grilles, wooden platforms and covering cement floors, beside the dyeing tank, floors, near the valve, etc.
5. Power plant: trench cover, waste water pool, etc. in chemical water workshop.
6. Metal surface treatment: place of pickling solution, replacement of wooden floors around machines, around highly corrosive containers, walkways of electroplating lines, double-layer floors.
7. Marine food processing plants: in harsh environments such as greasy surfaces, on ships.
8. Transportation industry: platforms, ship decks, walkways, military minesweepers, stair treads.
9. Beverage industry: stair treads, substitute for expensive stainless steel, floor with load.
10. Pulp and processing plants: stair treads and floors, floor walkways, and places with high humidity.
11. Electronics industry: gutter cover, pickling workshop, anti-static (anti-static grille) and high cleanliness workshop.
12. Meat processing plants: easily corroded floors, stairs, slippery floor workbenches and stair treads.
13. Car wash/car beauty shop: car wash drain board, parking space, car wash gutter cover.
14. Crane: On the aisle of a 3-meter or 6-meter-long crane.
Packing & Delivery
Fiberglass gratings are packed by pallet, or wooden case.
LongTime is your engineering partner for fiberglass handrail, guardrail, ladder and structural product needs. Our professional engineering and drafting team can help you find the right solution that meets your needs for longevity, safety and cost.
Why Choose Us?
1. About FRP grating samples:
Chat with us and give us your courier information, then we will send small pcs samples for free, the courier fee is collect.
2. About purchasing security:
LongTime is the Assurance Supplier on Alibaba which has joined in Trade Assurance System. The delivery time and quality is guaranteed. So we can be your trustworthy supplier in China.
3. About FRP grating delivery:
Normally, our price is quoted in EXW. According to your quantity and requirement, FOB and CIF is also accepted.
4. About FRP grating payment:
A: Small funds (Lower than USD1000), 100% T/T in advance;
B: Normally, 50%TT deposit, the balance against shipment;
C: Payment term can be negotiated.
5. About FRP grating Receiving:
We will send original B/L, commercial invoice, Packing list files to you by courier. When pick up the goods, please confirm the quantity, if do not conform to the requirements of the order, please contact with us immediately.
6. About FRP grating quality:
We undertake any complaints about the quality, please rest assured to purchase.
