Quick Details
-
Brand Name:
-
YIGAOS
-
Model Number:
-

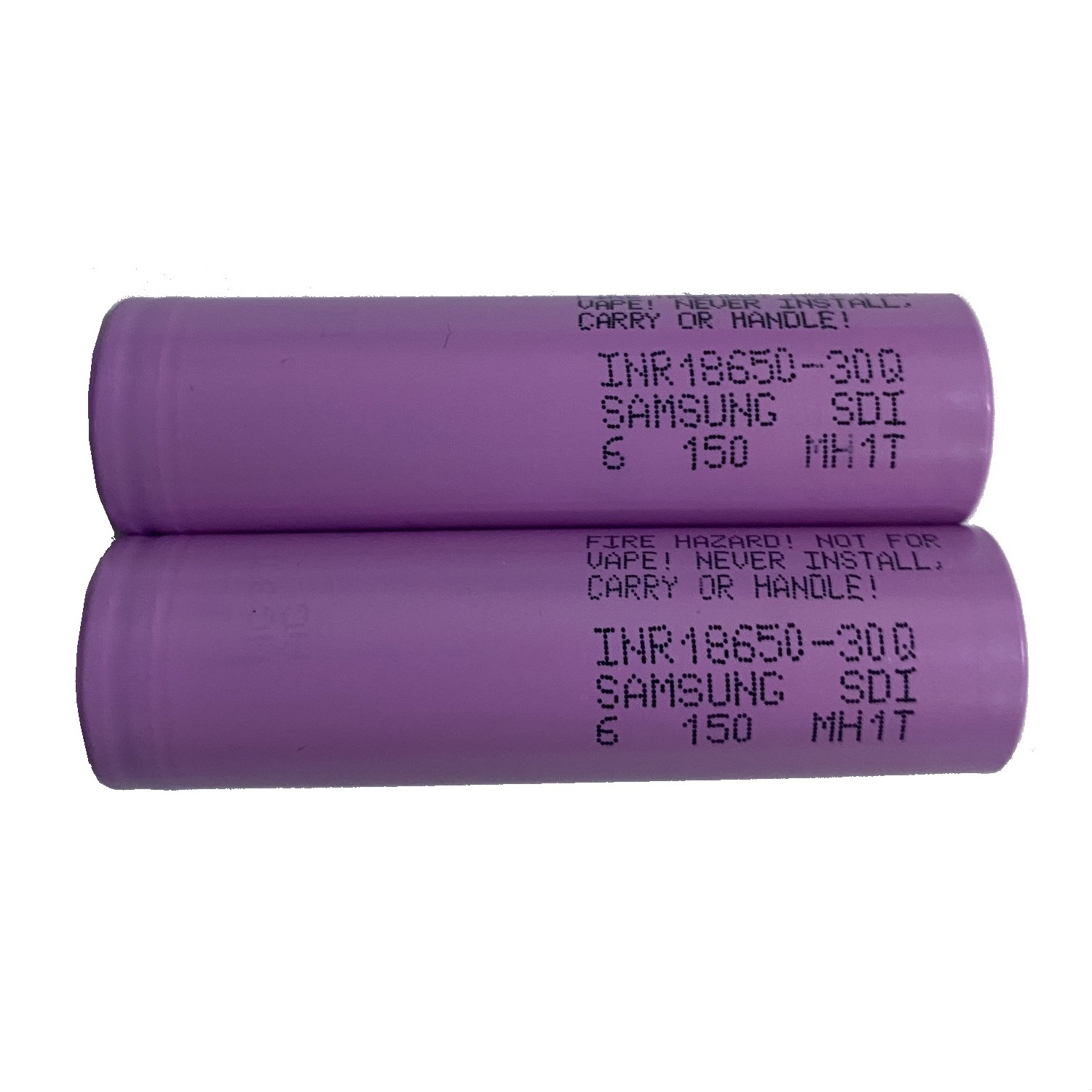

INR18650-30Q
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
48g
-
The charging ratio:
-
1C
-
The discharge rate:
-
10C
-
Battery type:
-
bateria 18650
-
Capacity:
-
3000mAh
-
Nominal Voltage:
-
3.6V
-
Cycle life:
-
500 Times
-
Warranty:
-
12 Months
-
Model:
-
INR18650-30Q
-
Features:
-
High Rate Capability
-
Material:
-
Ternary lithium ion battery
-
Usage:
-
Personal care
Quick Details
-
Storage Type:
-
ordinary temperature
-
Anode Material:
-
LCO
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, scooter
-
Brand Name:
-
YIGAOS
-
Model Number:
-
INR18650-30Q
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
48g
-
The charging ratio:
-
1C
-
The discharge rate:
-
10C
-
Battery type:
-
bateria 18650
-
Capacity:
-
3000mAh
-
Nominal Voltage:
-
3.6V
-
Cycle life:
-
500 Times
-
Warranty:
-
12 Months
-
Model:
-
INR18650-30Q
-
Features:
-
High Rate Capability
-
Material:
-
Ternary lithium ion battery
-
Usage:
-
Personal care
Product Description
|
PRODUCT PARAMETERS
|
|
|
|
|
||||
|
Type
|
Lithium ion battery
|
Charging Voltage
|
4.20V
|
|
||||
|
Model
|
INR18650-30Q
|
Discharge Cut-off Voltage
|
2.5V
|
|
||||
|
Nominal Voltage
|
3.6V
|
Protection Circuit
|
YES
|
|
||||
|
Nominal Capacity
|
3000mAh
|
Cycle Life
|
500 cycles
|
|
||||
|
Max Dimension
|
φ18*65mm
|
Warranty
|
12 months
|
|
||||
|
Initial Impedance
|
≤26mΩ
|
Charging temperature
|
0 °C~ 45°C
|
|
||||
|
Weight
|
About 48g
|
Operating Temperature
|
-20°C ~ 60°C
|
|
||||
|
Max Charge Current
|
1.0C
|
Storage Temperature
|
-20 ~ 35°C
|
|
||||
|
Max Discharge Current
|
3.0C
|
OEM/ODM
|
YES
|
|
||||
|
Charge Current
|
Standard Charging:0.2C/ Rapid charge:0.5C
|
|
|
|
||||
|
Charging Time
|
Standard Charging:6 hours(Ref.)/ Rapid charge: 3 hours(Ref.)
|
|
|
|
||||
|
Standard Charging Method
|
0.2C CC(constant current) charge to 4.20V,Then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
|
|
|
|
||||
|
Brand
|
Model
|
Capacity
|
Voltage
|
Max discharge current
|
Diameter（±0.3mm)
|
Height （±0.5mm)
|
|
ForSAMSUNG
|
ICR18650-22P
|
2200mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR18650-26J
|
2600mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR18650-25R
|
2500mAh
|
3.6V
|
20A
|
18
|
65
|
|
|
INR18650-29E
|
2900mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR18650-30Q
|
3000mAh
|
3.6V
|
15A
|
18
|
65
|
|
|
INR18650-35E
|
3500mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR21700-40T
|
4000mAh
|
3.6V
|
20A
|
21
|
70.5
|
|
|
INR21700-50E
|
5000mAh
|
3.6V
|
10A
|
21
|
70.5
|
|
|
INR21700-50G
|
5000mAh
|
3.6V
|
10A
|
21
|
70.5
|
|
|
INR21700-50S
|
5000mAh
|
3.6V
|
45A
|
21
|
70.5
|
|
ForLG
|
INR18650-M26
|
2600mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR18650-M29
|
2900mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR18650-HG2
|
3000mAh
|
3.6V
|
20A
|
18
|
65
|
|
|
INR18650-MH1
|
3200mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR18650-M32
|
3200mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR18650-F1L
|
3350mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR18650-MJ1
|
3500mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR21700-M50
|
5000mAh
|
3.6V
|
10A
|
21
|
70.5
|
|
|
INR21700-M50LT
|
5000mAh
|
3.6V
|
10A
|
21
|
70.5
|
|
ForSanyo & ForPananasonic
|
UR18650ZM2
|
2400mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
UR18650ZY
|
2600mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
US18650VTC6
|
3000mAh
|
3.6V
|
30A
|
18
|
65
|
|
|
NCR18650BD
|
3200mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
NCR18650B
|
3350mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
NCR18650GA
|
3500mAh
|
3.6V
|
10A
|
18
|
65
|
|
ForMolicel
|
INR-18650-P28A
|
2800mAh
|
3.6V
|
35A
|
18
|
65
|
|
|
INR-18650-M35A
|
3500mAh
|
3.6V
|
10A
|
18
|
65
|
|
|
INR-21700-P42A
|
4200mAh
|
3.6V
|
45A
|
21
|
70.5
|
