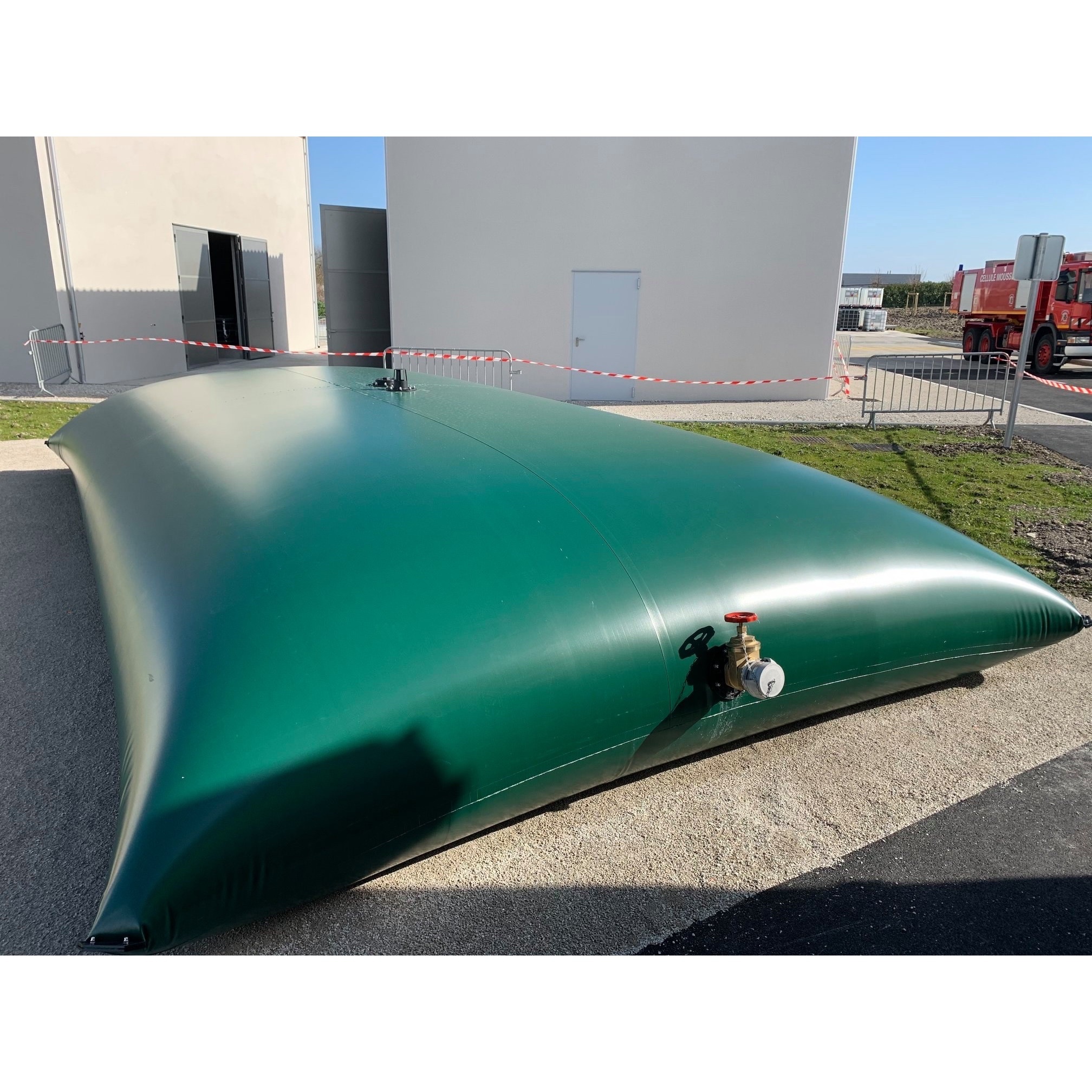

Flexible PVC Water Bladder Storage Tank 45000L 12000 Gallon Collapsible Drinking Water Harvesting Rectangular Water Bladder

DRINKING WATER Flexible Containment Solutions

Ecoflexitank offers now products that meet the drinking water standard, specially defined for the storage of drinking water. For the needs of other international countries, our bladders are manufactured using fabrics and equipments fir for human consumption.

All meet the compliance test on conservation of liquid and on certificate of non migration of products from technical fabric to the stored liquid.

SPECIFICATIONS*

PVC-coated high tenacity polyester woven fabric
PVC-coated 900 to 1400 g/m ²
Excellent anti-UV treatment
High frequency welding
Tensile strength warp 450 daN/5cm weft 350 daN/5cm
Customized color (standard color beige and green)
Temperature resistance -30°C to +70°C
Capacity 1 to 200 m3 (300 to 50000 Gal)

STANDARD ACCESSORIES*

Combined vent & dip connection Ø 146 mm
Valve set DN 50 (1 to 120 m3) with aluminium half coupling
Valve set DN 100 (120 to 200 m3) with aluminium half coupling
Overflow DN 25
Reinforcing corners
Repair kit

APPLICATIONS

Water reserve for emergency humanitarian aid and development
Water supply on isolated site, recovery of water sources.
Industries & food process
Drinking water bladder on military base. Water supply of military troops and security
Drinking water storage on construction site, drilling site and mining
Animal drinking

SIZE & CAPACITIES *

1. Tank connector with bolts, Brass valve, aluminium half coupling for hoses

2. Welded inspection hatch of 150 mm
3. Overflow elbow
4. Plastic reinforcing corners

*All tanks are made to order, we have a standard range and can tailor sizes, shapes and accessories to meet with your specific requirements. We can manufacture tanks from 1 000 up to 200 000 litre (300 to 50 000 Gal) capacity, Please contact our sales and technical team to discuss your job specific requirements to ensure you get the best possible service from your tank.

EUROPEAN ACCESSORIES*

	FLANGE COUPLING DN50 2’’, MALE THREADED BSPT FLANGE COUPLING DN80 3’’, MALE THREADED BSPT
	TANK CONNECTOR DN25 1’’, MALE THREADED BSPT TANK CONNECTOR DN50 2’’, MALE THREADED BSPT
	WELDED TANK CONNECTOR 1’’1/2, MALE THREADED BSPT
	INSPECTION HATCH, 150 MM
	ELBOW 90° DN25 1’’, FEMALE THREADED ELBOW 90° DN50 2’’, FEMALE THREADED ELBOW 90° DN80 3’’, FEMALE THREADED
	VALVE 2’’, FEMALE THREADED - PVC VALVE 3’’, MALE/FEMALE THREADED - PVC
	VALVE 2’’, FEMALE THREADED - STAINLESS STEEL VALVE 3’’, FEMALE THREADED - STAINLESS STEEL
	VALVE 2’’, FEMALE THREADED - BRASS VALVE 3’’, FEMALE THREADED - BRASS
	REINFORCING CORNER 4 BOLTS REINFORCING CORNER 2 BOLTS
	CHEMICAL RESISTANT FLEXIBLE REINFORCED PVC HOSE 2’’/3’’ OPERATING TEMPERATURE -25/+60 C
	FLAT PVC tarpaulin HOSE 1’’/2’’/3’’
	HOSE FOR FUELS AND OILS 605AA ASW 2’’/3’’ APPLICATION : OIL & FUEL
	CAMLOCK (MALE/FEMALE) COUPLING WITH CAP (2’’/3’’) - ALUMINUM / STAINLESS STEEL
	CAMLOCK (MALE/FEMALE) COUPLING WITH CAP (MALE/FEMALE) - PP
	GUILLEMIN SYMMETRICAL COUPLING 2’’/3’’ - ALUMINUM / STAINLESS STEEL

Ecoflexitank is your leading supplier of Water Bladders, Fuel Bladders, Fire water tanks and Pillow Tanks.

Excellent for temporary or long term storage solutions for liquid fertilizer, potable water, wastewater, petrol, diesel, jet fuel, industrial effluents, water, fire, irrigation water, transformer oil, crude oil, other liquids and gasses.

We produce sizes include 1 000 up to 200 000 liters (300 – 52 000 gallons) . Our clients include agriculture, military, industry, emergency, energy, fire, municipal, rescue missions & more. Also a private Clients.

Why work with Ecoflexitank on your project? We outperform the competition by providing top quality, and provide our partner all service from design to delivery. We export our flexible tanks in more than 80 counties in the world.

Our market is in Agriculture, Army, Humanitarians, Municipality and Industrial.

FAQ?

WHY DO YOU CONSIDER FLEXIBLE TANKS THE BEST SOLUTION FOR STORING LIQUIDS?

First of all, flexible tanks are the most cost-effective storage method. Besides saving money, you save yourself from the issue of coordinating an installation, preparing permits kind of construction work, erecting foundations, etc. In addition to many advantages, such as mobility, speed and inertia, you contribute to environmental protection. Ecoflexitank tanks don’t cause damage to the soil, eliminate the appearance of odors and leakage of liquids.

WHAT IS THE THICKNESS OF THE TARPAULIN OF A FLEXIBLE TANK?

The thickness of a technical fabric depends on its coating. Its thickness is generally between 0.7 and 1.2 mm. Consisting of a weave that ensures its reinforcement, the thickness of a technical fabric does not really matter. Other parameters to consider include its breaking strength and elongation at break.

DOES OUR FLEXIBLE TANKS USED TO STORE DRINKING WATER?

For each type of fluid, and particularly for water and drinking water, we adapt the fabric of our containers (high tenacity polyester) with the most efficient coating to prevent the formation of microorganisms. All our technical fabrics meet the compliance test for the conservation of the liquid and the IANESCO certificate for the non-migration of products from the fabric to the stored liquid, even in the case of long-term storage. This means that Ecoflexitank tanks protect your water from any external pollution, without deteriorating.

IS THERE THE SMALLEST PROBABILITY OF LIQUID LEAKING FROM THE TANK?

This is possible if the production doesn’t use the technology of welding with high frequency current or the violation of production technologies. Ecoflexitank is a manufacturer who uses the technology of protecting welded seam DOUBLE LAYER PROTECTION. We are responsible for our product, we guarantee a high level of safety and long-term operation of products.

PAYMENT METHODS?

The first order we suggest you to use trade assurance.
Order 30% deposit before production and balance 70% should be paid before delivery.

SHIPPING METHODS?

We use international express, DHL, UPS, FEDEX, EMS, TNT.
Large order by air or sea.
If you have your own forwarder, please tell us the details.
