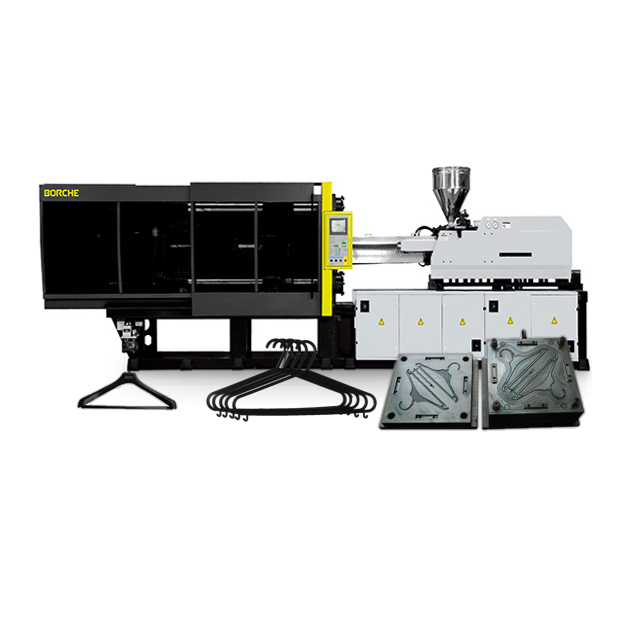

Candas automatic plastic Clothe hanger making machine BS260-III 260T

Candas automatic plastic Clothe hanger making machine BS260-III 260T

FOB Reference Price: Get Latest Price

≥1 Sets

US $29900

≥2 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Injection Rate (g/s):: 660 g/s

Injection Weight (g):: 800 g

Screw diameter (mm):: 60 mm

Screw L/D Ratio:: 21

Distance between Tie Bars:: 575x575

Weight (KG):: 8300

Place of Origin:: Jiangsu, China

Open Stroke(mm):: 520 mm

Model Number:: BS260-III

Brand Name:: Borche

Power (kW):: 16.2 kW

Clamping Force (kN):: 2600 kN

Machine Weight:: 8300KG

Oil Tank Capacity:: 500L

Injection Pressure:: 232 161 118Mpa

Colors Available:: Customized Colors

Language:: English

Quick Details

Ejector Stroke(mm):: 180 mm

Ejector Force(kN):: 77.3 kN

Theoretical Shot Volume(cm³):: 848 cm³

Injection Rate (g/s):: 660 g/s

Injection Weight (g):: 800 g

Screw diameter (mm):: 60 mm

Screw L/D Ratio:: 21

Distance between Tie Bars:: 575x575

Weight (KG):: 8300

Place of Origin:: Jiangsu, China

Open Stroke(mm):: 520 mm

Model Number:: BS260-III

Brand Name:: Borche

Power (kW):: 16.2 kW

Clamping Force (kN):: 2600 kN

Machine Weight:: 8300KG

Oil Tank Capacity:: 500L

Injection Pressure:: 232 161 118Mpa

Colors Available:: Customized Colors

Language:: English

Product Description

Technical Parameter of BS260-III 1367/260
Model International Class NO.	UNIT	BS260-III 1367/260
Injection Unit
Screw Diameter	mm	50 60 70
Shot Volume	cm ³	589 848 1154
Shot Weight (PS)	g	552 800 1085
Shot Weight (PS)	OZ	19.5 28.3 38.3
Injection Pressure	Mpa	232 161 118
Screw L/D Ratio	L/d	25 21 18
Injection Stroke	mm	300
Screw Rotary Speed Max.	rpm/min	143
Nozzle Contact Force	KN	40
Nozzle Stroke	mm	350
Clamping Unit
Clamping Force	KN	2600
Opening Stroke	mm	520
Platen Size	mmxmm	835x835
Space btw. Tie Bars	mmxmm	575x575
Daylight Max.	mm	1120
Mold Thickness (min~max)	mm	195-600
Ejection Stroke	mm	180
Ejector Force	KN	77.3
Ejector Pin	unit	8+4+1
Power Unit
System Pressure	Mpa	17.5
Pump Motor	KW	22
Heating Capacity	KW	16.2
NO. of Heater Zones	unit	6
General Unit
Oil Tank Capacity	L	500
Machine Dimensions	mxmxm	6.33x1.73x2.03
Machine Weight	KG	8300

Main Features

Injection Unit
Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail
Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication
Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √
Electric and control part
KEBA controller
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage

Certifications

Detailed Images

Moving Platen Clamping

1-Tie bars move across clamping cylinder, no touch with seals, lessen pressing leakage; Module type clamping cylinder, can be assembled and disassembled together, easy for maintenance.

2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast and precise locking.

3-Clamping cylinder assembled in the moving platen can balance the load of mold, avoiding mold forward, improve stability of moud open and clamping movement.

Super Long Lasting Tie Bar

During high pressure locking, four tie bars under equal force, no unbalance loading occured, avoiding tie bar broken theoretically.

Innovated Injection Structure

1-Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement, injection supporting made by one piece casting, is rigid and compact.

2-Double carriage cylinder insures injection unit better centering, and movement stable.

Mold platen Drawing
