HD 4K Encoder
HD 4K Encoder
HD 4K Encoder
HD 4K Encoder
HD 4K Encoder
HD 4K Encoder

HD 4K Encoder

FOB Reference Price: Get Latest Price
≥1 Pieces
US $399
≥10 Pieces
US $369
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Output:
1 Channel IP singal output, 1 HD MI loop out
Video encoding:
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
Application:
Digital TV Head-end System
Power supply:
5V~2A(Compact Size)
Operation Tempeture:
-20°+60°
Operation Humidity:
<90%, No condensation
Dimensions:
102*60*15mm
Power Consumption:
4W (Compact)

Quick Details

Place of Origin:
China
Product name:
HDMI 4K Encoder
Input:
1 HDMI signal input, 1 Channel 3.5mm audio input
Output:
1 Channel IP singal output, 1 HD MI loop out
Video encoding:
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
Application:
Digital TV Head-end System
Power supply:
5V~2A(Compact Size)
Operation Tempeture:
-20°+60°
Operation Humidity:
<90%, No condensation
Dimensions:
102*60*15mm
Power Consumption:
4W (Compact)
PRODUCT DESCRIPTION

INTRODUCE

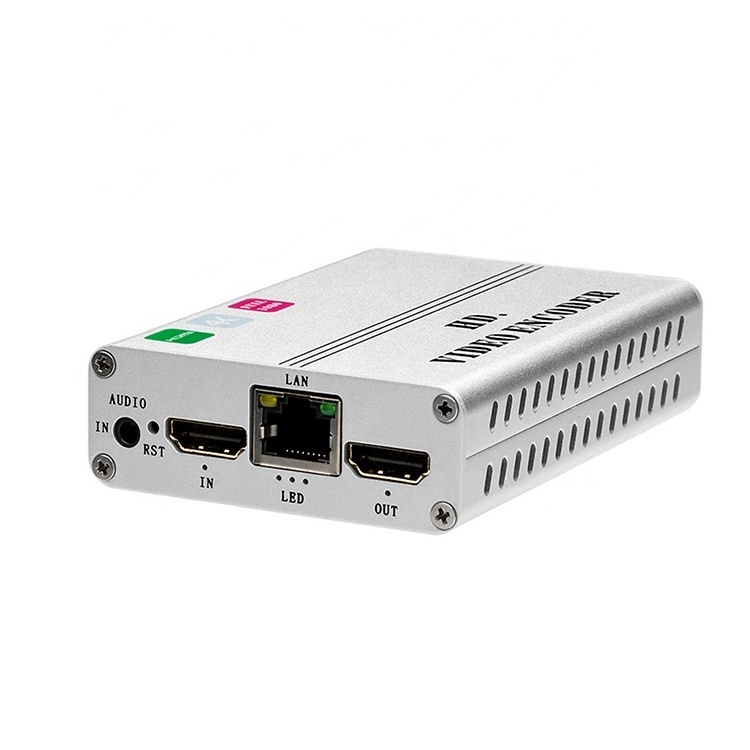

Bowei HD4K Series is professional 4K HD audio video coding encoder, which supports 1 channel HD MI 4K input and 1 channel 4K HD MI loop out, Coding output dual-stream H.264 / H.265 format, Audio coding MP3/AAC format. coding bitrate is adjustable, picture quality can be controlled. Support HTTP / RTSP / RTMP/ UDP/ RTP protocol transmissiom. Support 4Kx2K@30.

MAIN APPLICATIONS

* IPTV / OTT, Conference, Remote education, Network radio, Live audio
* Backhaul/ Monitoring for Broadcasters
* VOD, MultiscreenHeadend
* Point-to-Point videocontribution
* Streaming Full Motion Video to Desktop, TV and Mobile Devices over bandwidth-limited pipes

FEATURES
* Support SD card storage, support one-key record
* Embedded hardware coding
* 1 HD MI input, 1 HD MI loop out, support Audio Gain.
* Resolution: 3840x2160, 2560x1440, 2048x1152,1920x1080p, 1920x1080i, 1280x720p, 720x576p, 640x480i and etc multiple common resolution ( User-Defined )
* Support Baseline Profile / Main Profile / High Profile
* Support Smart Encode Mode
* Network interface using 1000M full duplex mode
* Support RTSP / RTMP / HTTP / UDPunicast, multicast etc protocol (RTMP support add username and password), support DHCP protocol, ONVIF protocol
* Compatible with Wowza / FMS / RED5 and other streaming media servers, cooperate with streaming media server to push live stream for realizing Video Live Streaming
* Support main, secondary and etc multi-protocol, multi-stream function, H.264, H.265 are selected respectively, main stream and secondary stream can use different network protocol for transmission
* Bitrate control CBR / VBR, 16KBIT/S~50MBIT/S
* Video packaging: FFMPEG / VLC
* Support stream resolution user-defined output setting
* Transmission mode: TCP, UDP, 1000M (RJ45 duplex network port)
* Support OSD function, XY axis, typeface can be settable
* Support WEB management, modify password, support Remote management in WAN
* Support DHCP auto gain IP, support one-key reset, version upgrade and remote maintenance
* Support left, right sound track
* Support one-key restore default configuration
* Low power consumption design, support STB
decode
TECHNICAL SPECIFICATIONS
MAIN IMAGES
RELATE PRODUCTS

FAQ

Are you manufacturer?
Yes, we are a professional manufacturer with 15 years of experience, with our own production base and R&D team. Welcome to visit our factory at anytime!

Warranty and return:
Five years warranty. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.

Could you accept product customization orders?
Of course ,we accept OEM and ODM order. OEM: LOGO and Brand printing,product packaging and outer packaging requirements. ODM: Provide us with product technical parameters and more details.

How about your delivery date?
Sample is around 1-3 days in stock,no stock is around 3-5 days . Large order is around 7-15 days. Customized order is around 15-30 days.
