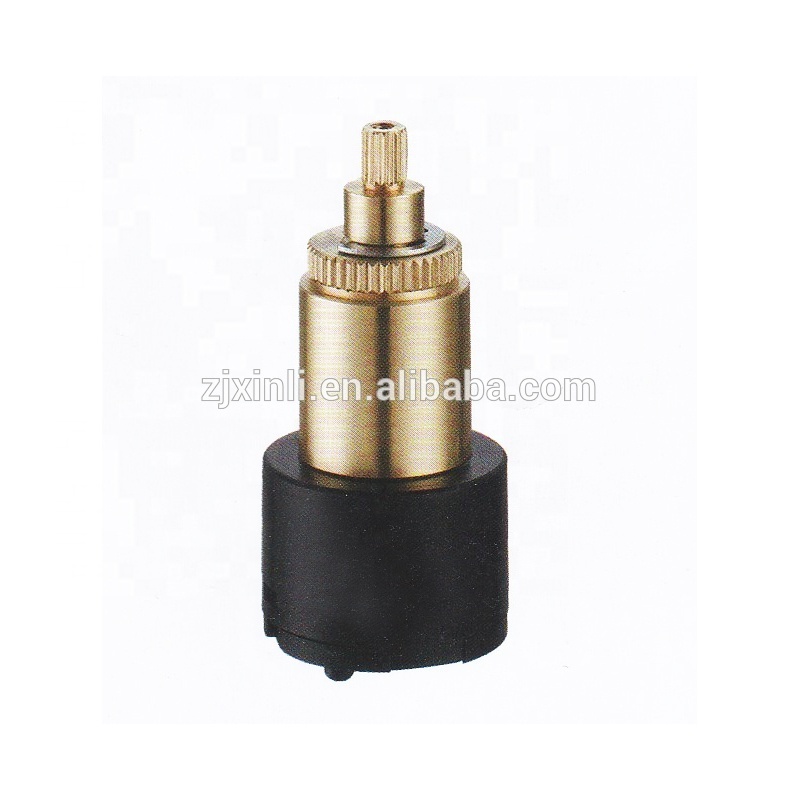

X3011 ABS Material Thermostatic Cartridge for 40mm Faucet

X3011 ABS Material Thermostatic Cartridge for 40mm Faucet

FOB Reference Price: Get Latest Price

≥50 Pieces

US $7.19

≥250 Pieces

US $6.9

≥500 Pieces

US $6.72

≥1000 Pieces

US $6.6

Payment:

Export Port:

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Type:: Faucet Cartridges

Product Description

Item No.:	X3011
Color:	Black
Installation Size:	ø40MM
Max. Turning Angle:	90°c
Max. Temperature:	90°c
Max. Opening Angle:	23°c
Working Pressure:	Max.1.2Mpa
Sealing Test:	0.8Mpa
Gland Nut Torque:	8-12N.m
Lever Break Torque:	≥15N.m
Lever Torque Test:	0.2-0.3N.m in Static Pressure is Zero
Noise Test:	Max.20db at 3 Bar (with noise reducer)
Ceramic Disc:	(1)Material: AL ₂ O ₃ 95% (2)Hardness: 1100HV5 (3)Flatness: ≤ 0.3 µm (4)Roughness: ≤ Ra0.2 µm (5)Porosity: 60-80% (6)Static Water Pressure at Max.35Mpa, no Deformation
Life Time:	700,000 open and close cycles (EN817, GB18145-2003)
Logo:	xTruly Brand, OEM is available
Guarantee:	5 Years

Burst Test

Sealing Test

Test Item

Inlet

Outlet

Outlet Status

Open

Pressure(Mpa)

2.5±0.05

0.4±0.02

1.6±0.05

0.4±0.02

Time(s)

60±5

Technical Requirements

No Deformation, No Leakage

Test Item

Inlet

Outlet

Outlet Status

Open

Pressure(Mpa)

1.6±0.05

0.4±0.02

1.6±0.05

0.4±0.02

Time(s)

60±5

Technical Requirements

No Deformation, No Leakage

PRESSURE & FLOW RATE

Pressure

Bar

0.5

1.0

1.5

2.0

2.5

3.0

3.5

Flow Rate

L / Min

13.9

19.0

23.5

27.2

30.2

33.4

35.8

PICTURES
