Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIYU
-
Model Number:
-
WAW-100D
-
Material:
-
Thick Steel
-
Standard:
-
BS, ASTM
-
Precision:
-
class 0.5
-
Result:
-
Direct reading
-
Working principle:
-
hydraulic extension force
-
Capacity:
-
300,600,1000KN
-
Display:
-
PC software
-
Weight:
-
2000kgs
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Hydraulic
-
Customized support:
-
Negotiate
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIYU
-
Model Number:
-
WAW-100D
-
Material:
-
Thick Steel
-
Standard:
-
BS, ASTM
-
Precision:
-
class 0.5
-
Result:
-
Direct reading
-
Working principle:
-
hydraulic extension force
-
Capacity:
-
300,600,1000KN
-
Display:
-
PC software
-
Weight:
-
2000kgs
Product Details

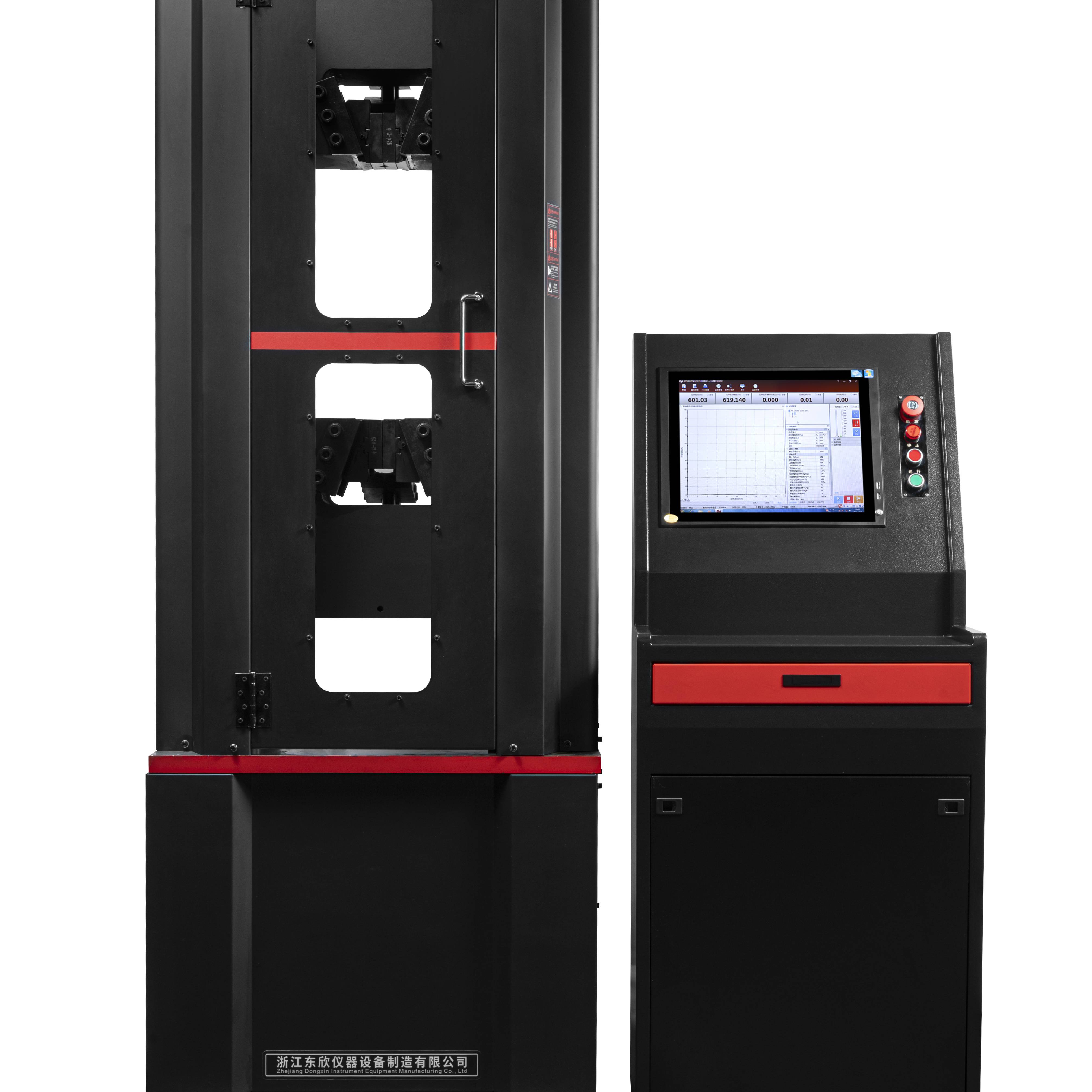

Steel Rebar Tensile Testing Machine is suitable for doing testing experiments
such as the tensile, compression, bending and sheartesting for all kinds of metal materials and nonmetal materials such as plastic, concrete, cement and so on.
|
Item/index/model
|
WAW-100D
|
WAW-300D
|
WAW-600D
|
WAW-1000D
|
|||
|
maximum test force
|
100kN
|
300kN
|
600kN
|
1000kN
|
|||
|
Test force accuracy
|
0.5 level
|
|
|
|
|||
|
maximum speed of centre sill（mm/min）
|
320
|
|
|
|
|||
|
tensile space（mm）
|
650
|
670
|
700
|
|
|||
|
diameter of round
specimen（mm）
|
φ6-φ22
|
φ10-φ30
|
φ13-φ40
|
φ14-φ45
|
|||
|
thickness of flflat specimen（mm）
|
0-15
|
0-20
|
|
0-40
|
|||
|
size of compression plates（mm）
|
φ110
|
φ150
|
φ200
|
φ225
|
|||
|
dimension(host)（mm）
|
610*590*1700
|
660*660*1810
|
760*720*2020
|
820*780*2140
|
|||
|
dimension(conriol console)（mm）
|
6 00*570*1450 |
|
|
|
|||
|
power(kW)
|
2.0KW
|
|
|
|
|||
|
weight(conriol console)kg)
|
300
|
|
|
|
|||
|
weight（host）（kg）
|
1650
|
1800
|
2100
|
2800
|
|||
