Quick Details
-
Holding Force:
-
1000kg
-
Voltage:
-
DC12V
-
Current:
-
12V/220mA;24V/110mA
-
Signal Output:
-
NO/NC/COM
-
Lock Size:
-
230Lx40Wx30H(mm)
-
Suitable for:
-
Wooden Door, Metal Door
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIMI
-
Lock tongue structure:
-
304 Stainless Steel
-
Holding Force:
-
1000kg
-
Voltage:
-
DC12V
-
Current:
-
12V/220mA;24V/110mA
-
Signal Output:
-
NO/NC/COM
-
Lock Size:
-
230Lx40Wx30H(mm)
-
Suitable for:
-
Wooden Door, Metal Door
-
Certification:
-
CE
Product Description
Introduction:
XM-621-S is suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism
produces the force to pull or push the release lever so that to lock or open the door.
Features:
Enhanced stress structure design
100000 solenoid valve special design
Power to open the door or door adjustable power supply
Specifications:
XM-621-S is suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism
produces the force to pull or push the release lever so that to lock or open the door.
Features:
Enhanced stress structure design
100000 solenoid valve special design
Power to open the door or door adjustable power supply
Specifications:
|

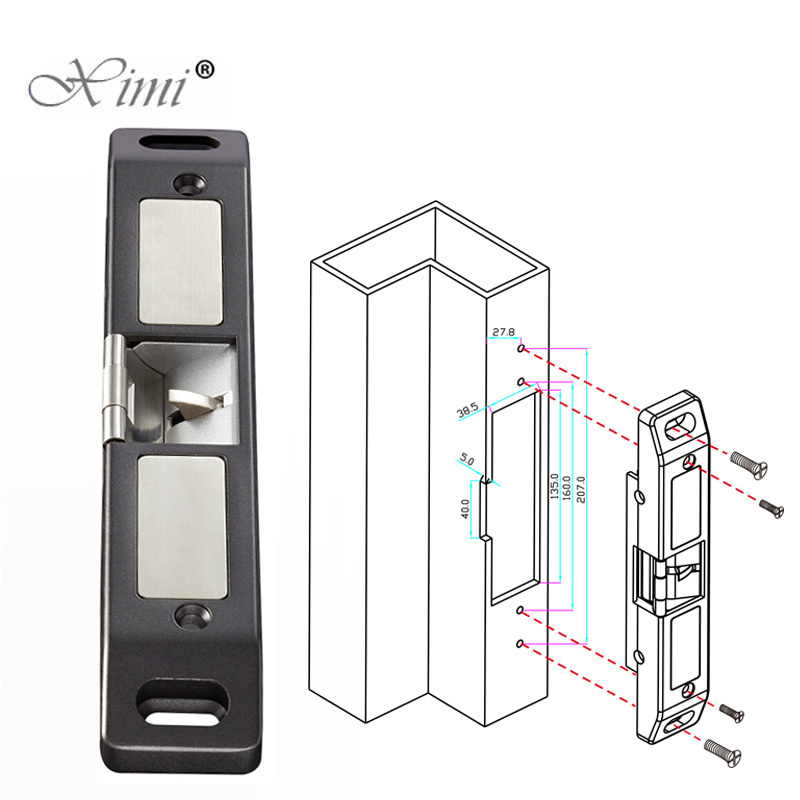

Lock Size
|
230L*40W*30H(mm)
|
|
lock tongue structure
|
304 Stainless Steel
|
|
Holding Force
|
1000kg
|
|
Voltage
|
DC12V
|
|
Current
|
12V/220mA;24V/110mA
|
|
Signal Output
|
Lock Status Output NO/NC/COM
|
|
special design
|
applies to all brands of fire push rod lock
|
|
Suitable For
|
supporting rod lock fire door
|
|
Surface Temperature
|
Within +20℃
|
|
Suitable Temperature
|
-10~+55℃(14-131F)
|
|
Operating Humidity
|
0～95%(non-condensing)
|
|
Face plate Housing
|
High temperature paint
|
|
Lock tongue
|
Surface by coating nickel
|
|
The door open
|
90 degrees
|
|
Weight
|
0.75kg
|
