Quick Details
-
Lift Speed:
-
8/min
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
500 kg
-
Product name:
-

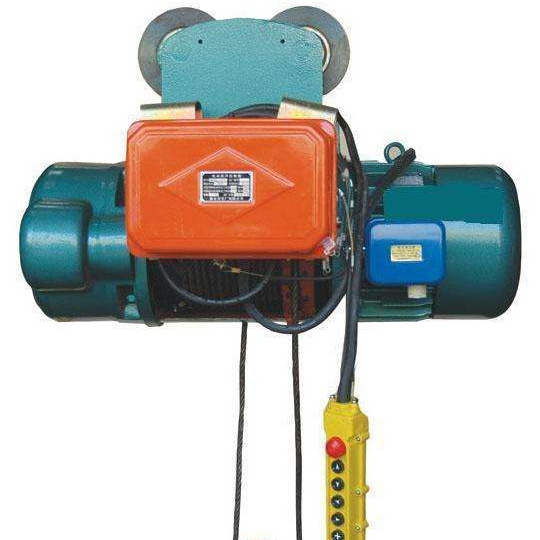

Electric Wire Rope Hoist
-
Usage:
-
Construction Hoist
-
Capacity:
-
0.25-32t
-
Type:
-
Moveable
-
Color:
-
Customised
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGPU
-
Lift Speed:
-
8/min
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
500 kg
-
Product name:
-
Electric Wire Rope Hoist
-
Usage:
-
Construction Hoist
-
Capacity:
-
0.25-32t
-
Type:
-
Moveable
-
Color:
-
Customised
Products Description
Product Paramenters
|
CD/MD Electric Hoist
|
|
|
|
|
|
|
|
|||||||
|
Lifting weight(t)
|
|
|
1T
|
2T
|
3T
|
5T
|
10T
|
|||||||
|
Lifting height(m)
|
|
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
|||||||
|
Lifting speed (m/min)
|
|
|
88/0.8
|
88/0.8
|
88/0.8
|
88/0.8
|
77/0.7
|
|||||||
|
Running speed(m/min)
|
|
|
20
|
20
|
20
|
20
|
20
|
|||||||
|
Bonding number(n/hr)
|
|
|
120
|
120
|
120
|
120
|
120
|
|||||||
|
Wire rope
|
|
Diameter
|
7.4m/m
|
11mm
|
13mm
|
15mm
|
15mm
|
|||||||
|
|
|
Structure
|
D-6*37+1
|
D-6*37+1
|
D-6*37+1
|
D-6*37+1
|
D-6*37+1
|
|||||||
|
I-beam models
|
|
|
16-28b
|
20a-32c
|
20a-32c
|
25a-45c
|
32a-63c
|
|||||||
|
Motor
|
Hoist
|
Power
|
1.51.5/0.2
|
3 3/0.4
|
4.54.5/0.4
|
7.5 7.5/0.8
|
13 13/2.0
|
|||||||
|
|
|
Speed
|
1380
|
1380
|
1380
|
1400
|
1400
|
|||||||
|
|
Oper
ation |
Power
|
0.2
|
0.4
|
0.4
|
0.8
|
0.8
|
|||||||
|
|
|
Speed
|
1380
|
1380
|
1380
|
1380
|
1380
|
|||||||
|
Type of work
|
|
|
M3
|
M3
|
M3
|
M3
|
M3
|
|||||||
|
Institution level
|
|
|
25%
|
25%
|
25%
|
25%
|
25%
|
|||||||
|
HC/HM Electric Hoist
|
|
|
|
|
|
|
|
|||||||
|
Lifting weight(t)
|
|
|
16T
|
20T
|
25T
|
32T
|
50T
|
|||||||
|
Lifting height(m)
|
|
|
9/12/16/18/20/24/30/35/40/45
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
6/9/12/18/24/30
|
|||||||
|
Lifting speed(m/min)
|
|
|
6(6/0.6)
4.2(0.42/4.2) |
3.3(0.33/3.3)
4.2(0.42/4.2) |
3(0.3/3)
|
3(0.3/3)
|
2.4(0.24/2.4)
|
|||||||
|
Running speed(m/min)
|
|
|
18
|
14
|
18
|
16
|
20
|
|||||||
|
Bonding number(n/hr)
|
|
|
120
|
120
|
120
|
120
|
120
|
|||||||
|
Wire rope
|
|
Diameter
|
26/17.5mm
|
21.5mm
|
21.5mm
|
26mm
|
15mm
|
|||||||
|
|
|
Structure
|
6*37
|
6*37
|
6*37
|
6*37
|
6*37
|
|||||||
|
-beam models
|
|
|
50a-63c
|
56a-63c
|
56a-63c
|
>63c
|
32a-63c
|
|||||||
|
Motor
|
Hoist
|
Power
|
18.5(2.2/18.5)
|
18.5(2.2/18.5)
|
18.5(2.2/18.5)
|
18.5(2.2/18.
5) |
1313/2.0
|
|||||||
|
|
|
Speed
|
960
|
1400
|
1400
|
960
|
1400
|
|||||||
|
|
Operati
on |
Power
|
0.8*4
|
0.8*4
|
0.8*4
|
0.8*4
|
0.8*4
|
|||||||
|
|
|
Speed
|
1380
|
1380
|
1380
|
1380
|
1380
|
|||||||
|
Type of work
|
|
|
M3
|
M6
|
M6
|
M6
|
M6
|
|||||||
|
Institution leve
|
|
|
25%
|
25%
|
25%
|
25%
|
25%
|
|||||||
Our Advantages
Packing & Delivery
FAQ
Q: What is an electric hoist?
A: Electric hoist is a device that uses an electric drive to lift and hang heavy objects. It usually consists of an electric
motor, lifting envelope and control system.
Q: What are the advantages of electric hoist?
A: Electric hoist has the following advantages over manual hoist:
1. High lifting efficiency, able to quickly lift and hang heavy objects;
2. Reduce the intensity of manual labor and reduce the amount of labor;
3. Provide better safety and avoid accidents caused by human error;
4. With remote operation ability, easy to control and monitor.
Q: What are the application fields of electric hoist?
A: Electric hoists are widely used in various industries, including:
1. Factory and warehouse: for material handling, loading and unloading goods, etc.;
2. Construction site: used to lift large components, concrete, steel, etc.;
3. Ports and terminals: for the loading and unloading of ship cargo;
4. Hospital: used for bed lifting, etc.;
5. Machinery manufacturing: used to assemble parts on the production line.
Q: How to choose the electric hoist that suits you?
A: When choosing an electric hoist, you can consider the following factors:
1. Load capacity: choose the appropriate load capacity according to the weight to be raised;
2. Lifting height: select the appropriate lifting height according to the height to be lifted;
3. Use environment: consider the special conditions of the use environment, such as moisture, corrosion, etc., and select the
corresponding protection level;
4. Safety requirements: select electric hoists that meet the corresponding standards according to the safety requirements of the
use scenario;
5. Price and brand: Choose the right product according to your budget and the need for your brand.
Q: What should I pay attention to in the maintenance of electric hoist?
A: When using the electric hoist, you need to pay attention to the following maintenance:
1. Regular inspection and cleaning: regularly check the power cord, controller, drum, wire rope and other components of the
electric hoist to ensure its normal operation;
2. Lubrication maintenance: regularly fill the key parts of the electric hoist with lubricating oil to ensure its smooth
operation;
3. Check the safety devices regularly: check the safety devices of the electric hoist, such as limit switches, power off
protection, etc., to ensure their reliability;
4. Pay attention to the use environment: avoid using electric hoists in humid, corrosive and other harsh environments, so as not to affect their life and safety.
A: Electric hoist is a device that uses an electric drive to lift and hang heavy objects. It usually consists of an electric
motor, lifting envelope and control system.
Q: What are the advantages of electric hoist?
A: Electric hoist has the following advantages over manual hoist:
1. High lifting efficiency, able to quickly lift and hang heavy objects;
2. Reduce the intensity of manual labor and reduce the amount of labor;
3. Provide better safety and avoid accidents caused by human error;
4. With remote operation ability, easy to control and monitor.
Q: What are the application fields of electric hoist?
A: Electric hoists are widely used in various industries, including:
1. Factory and warehouse: for material handling, loading and unloading goods, etc.;
2. Construction site: used to lift large components, concrete, steel, etc.;
3. Ports and terminals: for the loading and unloading of ship cargo;
4. Hospital: used for bed lifting, etc.;
5. Machinery manufacturing: used to assemble parts on the production line.
Q: How to choose the electric hoist that suits you?
A: When choosing an electric hoist, you can consider the following factors:
1. Load capacity: choose the appropriate load capacity according to the weight to be raised;
2. Lifting height: select the appropriate lifting height according to the height to be lifted;
3. Use environment: consider the special conditions of the use environment, such as moisture, corrosion, etc., and select the
corresponding protection level;
4. Safety requirements: select electric hoists that meet the corresponding standards according to the safety requirements of the
use scenario;
5. Price and brand: Choose the right product according to your budget and the need for your brand.
Q: What should I pay attention to in the maintenance of electric hoist?
A: When using the electric hoist, you need to pay attention to the following maintenance:
1. Regular inspection and cleaning: regularly check the power cord, controller, drum, wire rope and other components of the
electric hoist to ensure its normal operation;
2. Lubrication maintenance: regularly fill the key parts of the electric hoist with lubricating oil to ensure its smooth
operation;
3. Check the safety devices regularly: check the safety devices of the electric hoist, such as limit switches, power off
protection, etc., to ensure their reliability;
4. Pay attention to the use environment: avoid using electric hoists in humid, corrosive and other harsh environments, so as not to affect their life and safety.
