Quick Details
-
Optical Resolution:
-
648*488
-
Scan Speed:
-
100 Scans/sec
-
Brand Name:
-
OEM
-
Place of Origin:
-
China
-
Model:
-
MJ- R80
-
Size:
-
147*68*31.6mm
-
Weight:
-
106g
-
CPU:
-
ARM Cortex-M3,32-bits
-
Scan speed:
-
500scans/sec
-
Resolution:
-
0.1mm(4mil)
-
Depth of field:
-
500mm@20mil/0.5mm,PCS 90%
-
Light source:
-
CMOS
-
Bit error rate:
-
1/5 million
-
Current:
-
100mA(working),30mA(storage)
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
648*488
-
Scan Speed:
-
100 Scans/sec
-
Brand Name:
-
OEM
-
Place of Origin:
-
China
-
Model:
-
MJ- R80
-
Size:
-
147*68*31.6mm
-
Weight:
-
106g
-
CPU:
-
ARM Cortex-M3,32-bits
-
Scan speed:
-
500scans/sec
-
Resolution:
-
0.1mm(4mil)
-
Depth of field:
-
500mm@20mil/0.5mm,PCS 90%
-
Light source:
-
CMOS
-
Bit error rate:
-
1/5 million
-
Current:
-
100mA(working),30mA(storage)

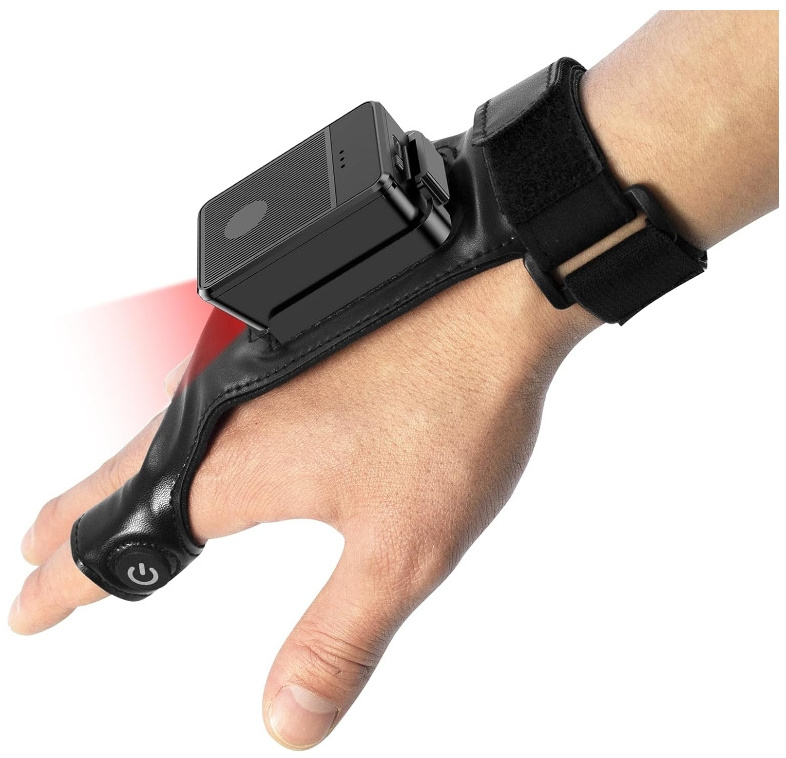

MJ-R80 has the following significant advantages:
Low power consumption and powerful performance: Large viewing angle image sensor technology can easily capture and decode printed barcodes, barcodes on paper or screen.
Humanized design: ergonomic design, more convenient operation and more comfortable grip.
Automatic adaptation data cable type: adaptive data cable type. Universal data interface, fast and efficient connection, perfect support for Linux, MAC, Windows system PC, plug and play.
With the wired and wireless dual-mode design, the data cable can be used as a charging cable or a power cable, which can work while charging, avoiding the embarrassment of the scanning gun being unable to work without power.
Large-capacity storage, safe and reliable
Offline scanning can store more than 50,000 barcodes
Imported keys, long life, good hand feeling
Support Android device/IOS device/Windwos
Support Bluetooth HID, SPP, BLE protocol
Ultra-small size, stylish appearance, portable
Ultra-low power consumption, sleep time can be set
Bluetooth transmission distance: indoor transmission distance up to 15 meters
Scope of application
Medical center, supermarkets, retail, manufacturing, mobile phone coupon admission tickets, mobile phone payment barcode scanning, etc.
|
Physical parameter |
|
|
Weight |
106g |
|
Size |
147*68*31.6mm |
|
Input voltage |
5V1A |
|
Naterial |
ABS |
|
Standby current |
20mA |
|
Scan mode |
Trigger mode,Detection mode, Continuous mode |
|
Interface |
Bluetooth+Type-c interface |
|
Scanning performance parameters |
|
|
Accuracy |
1D Barcodes 6mil |
|
Contrast |
≥ 25% |
|
Scanning angle |
Corner 360 °,elevation angle ± 55°,declination angle ± 55° |
|
Field of view |
horizontal 60 °,vertical 46° |
|
Working current |
≤220mA |
|
Supported barcode types |
2D QR Code, Data Matrix, PDF417,maxicode,Aztec,hanxin 1D EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Code 11, Codabar, Interleaved 2 of 5, Standard 25 , MSI-Plessey GS1 Databar, Industrial 25, Matrix 2 of 5 |
|
Prompt mode |
indicator light, buzzer, vibrator (optional) |
|
Battery capacity |
3000mA |
|
Ambient light resistance |
100,000Lux Max |
|
Environmental parameters |
|
|
Operating temperature |
-20 ℃ to 50 ℃ |
|
Storage temperature |
-40 ℃ to 70 ℃ |
|
Working humidity |
5%~95% (No condensation) |
|
Transport vibration test |
10H@125RPM |
|
Drop height |
1.8 meters high multiple drops to the ground |
