Quick Details
-
Dimension(L*W*H):
-
3200*900*1850
-
Warranty:
-
2 Years
-
Power:
-
7.5-220KW
-
Weight:
-
2-90 ton
-
Certification:
-
ISO
-
Product name:
-
Three roller calender
-
Application:
-
Rubber sheet producing, coat rubber on fabric
-
End product:
-
Rubber Sheet, rubber coating on nylon fiber
-
Capacity:
-
200kg/h-3000kg/h
-
properties:
-
long service life
-
technology service:
-
engineer available
-
HS code:
-
8477
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HITOP
-
Voltage:
-
220V/380V/415V (3 phase)
-
Dimension(L*W*H):
-
3200*900*1850
-
Warranty:
-
2 Years
-
Power:
-
7.5-220KW
-
Weight:
-
2-90 ton
-
Certification:
-
ISO
-
Product name:
-
Three roller calender
-
Application:
-
Rubber sheet producing, coat rubber on fabric
-
End product:
-
Rubber Sheet, rubber coating on nylon fiber
-
Capacity:
-
200kg/h-3000kg/h
-
properties:
-
long service life
-
technology service:
-
engineer available
-
HS code:
-
8477

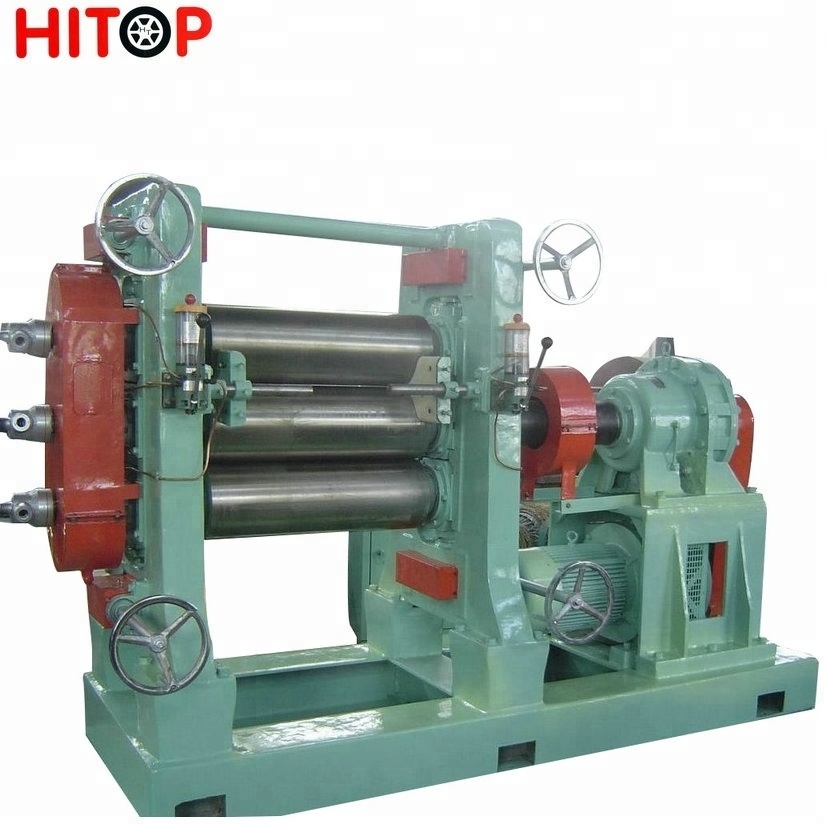

Three roller rubber sheet calender machine
Machine specification
|
Model |
XY-3I 630 |
XY-3I 1120A
|
XY-3I 1400 |
XY-3I 1200
|
XY-3I 1730 |
XY-3I 2130 |
|
Roll diameter (mm) |
230 |
360 |
400 |
450 |
610 |
710 |
|
Working-length (mm) |
630 |
1120 |
1400 |
1200(1500) |
1730 |
2130 |
|
Roll speed ratio |
1:1:1
|
1:1:1 0.733:1:0.733 |
1:1:1
|
1:1:1
|
1:1:1
|
1:1:1
|
|
Middle-roll linearspeed (m/min) |
7.97 |
7.0-21.06 |
8.8-26.39 |
8.36-25.08 |
5.4-54 |
8-50 |
|
Adjusting nip range (mm) |
0-7 |
0-10 |
0-10 |
0-6 |
0-20 |
0-20 |
|
Min. product thickness(mm) |
0.2 |
0.2 |
0.2 |
0.15 |
0.15 |
0.15 |
|
Product width (mm) |
100-500 |
500-920 |
1200 |
1100(1400) |
1500 |
1900 |
|
Motor power (kw) |
7.5 |
40/13.3 |
55/18.3 |
75/25 |
132 |
185 |
|
Overall size (mm) |
2570×740x1500 |
5550×1640x2120 |
6500×1500x2400 |
7120x2200x2900 |
7010×3950×3730 |
7650×4560x4080 |
|
Weight (kg) |
~4200 |
~12750 |
~26000 |
~27000 |
~52000 |
~67000 |
