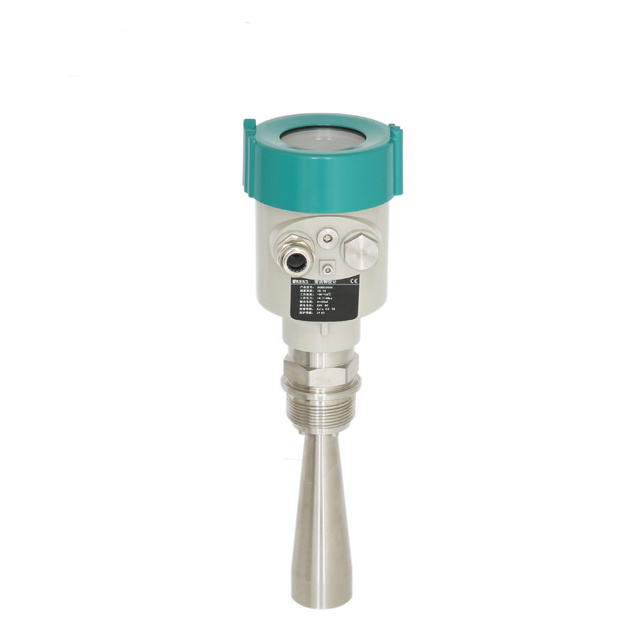

HSRD1000A Series Radar Level Measurement is high-frequency level measuring instruments with the maximum measuring distance up to 70 meters. The antenna is further optimized, and the new-type microprocessor can perform higher rate of signal analysis and processing, making the instrument available for complex measurement conditions, such as reactors, solid silos.

Working Principle:

Radar level antenna emits narrow microwave pulses that transmitted down by the antenna. The microwave comes into contact with the measured medium surface then reflected back and receiving by the antenna system. The signal is transmitted to electronic circuit and partly convert to level signals (as the microwave featured with high propagation speed, it's almost instantaneous for the electromagnetic waves to reach the target and return to the receiver).

Note: When applying the radar level transmitter, make sure that the highest material level cannot reach the measurement blind spot (the territory that indicate as D).

	Items	Specifications
	Model	HSRD1000A2
	Applications	Slightly corrosive liquid, sewage, petroleum, river channel, heavy steam conditions, etc.
	Measuring range	30m
	Process connection	Screw thread, Flange
	Medium temperature	-40~250℃
	Process pressure	-0.1~4.0Mpa
	Accuracy	±3mm
	Frenquency range	26GHz
	Anti-explosion/Safety grade	Exia II CT6 Ga, Exd ia II CT6 Gb / IP67
	Signal output	4~20mA/HART(Two-wire/Four-wire) RS485/Modbus
	Warranty	12 months

HSRD1000A2 Outer Dimension(mm):

HSRD1000A2 Installation:

• Small antenna size, easy to install; non-contact radar, no wear, no pollution.
• Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere.
• Severe dust environment is not likely to affect the work of the high-frequency level meter.
• Shorter wavelength can achieve better reflection for the inclined solid surface.
• The small field angle and energy concentration, enhanced echo capabilities, and beneficial to avoid interference.
• Minimized measuring blind spot can gain better result of small tank measurement.
• High SNR, even in the case of fluctuations can result in better performance.

The HSRD1000A series radar level transmitter can be used in electrical industry, coal industry, oil industry and other fields:
